D-VXR-OE-23 Practice Questions

During the initial deployment of a VxRail cluster, the VxRail Manager virtual machine is a critical management component. To ensure its high availability and performance, it is protected by the default vSAN storage policy. This policy is configured with Failures to Tolerate (FTT) = 1 and RAID-1 (Mirroring). This means a complete copy of the VM's data is maintained on a separate host, allowing it to remain operational if a single host or disk fails. The Object space reservation is set to Thin provisioning by default in vSAN to optimize storage capacity by allocating space only as it is consumed.

B. RAID-5 (Erasure Coding) is not the default for the VxRail Manager VM, as RAID-1 provides better write performance and faster rebuild times, which are preferable for critical management components.

C. This is incorrect because the default policy for the VxRail Manager VM uses RAID-1 (Mirroring) for performance and Thin provisioning for space efficiency, not RAID-5 or Thick provisioning.

D. Thick provisioning is not the default setting. The vSAN default is Thin provisioning to conserve storage space until it is actively written to by the virtual machine.

1. Dell VxRail HCI System Tech Book (Version 7.0.130): Page 101

Section "vSAN Default Storage Policy". It states

"The vSAN Default Storage Policy is configured with Failures to Tolerate (FTT) set to 1 and a Failure tolerance method of RAID-1 (Mirroring)... By default

all objects deployed on a vSAN datastore are thin-provisioned."

2. Dell VxRail Architecture Overview White Paper: Page 21

Section "VxRail Manager". It specifies

"The VxRail Manager VM is automatically deployed during the initial build process... It is protected by the default vSAN storage policy

which is configured for FTT=1 using RAID-1 mirroring."

3. Dell VxRail System 8.0.x Administration Guide: Page 10

Section "VxRail managed virtual machines". The guide implicitly confirms the default protection policies for management VMs

which align with the standard vSAN default of FTT=1

RAID-1 for clusters of 3 or more nodes.

A vSAN storage policy using RAID 5 (erasure coding) with the default Failures to Tolerate (FTT) of 1 is designed for space efficiency. This configuration stripes data across a minimum of four hosts (three data blocks and one parity block). The space overhead for this protection scheme is 33%. Therefore, a 100 GB virtual disk will consume 1.33 times its original size on the vSAN datastore. The calculation is 100 GB 1.33 = 133 GB. This method provides single-failure protection while being more space-efficient than RAID 1 mirroring.

A. 200 GB: This is the space consumption for a RAID 1 (Mirroring) policy with FTT=1, which creates a full copy of the data, resulting in a 2x space multiplier.

B. 100 GB: This represents the space consumed with no data protection (Failures to Tolerate = 0), where only the primary copy of the data is stored.

D. 166 GB: This amount does not correspond to a standard vSAN RAID 5 policy. It is closer to the consumption of a RAID 6 (FTT=2) policy, which has a 1.5x multiplier (150 GB).

1. VMware vSAN Documentation: Administering VMware vSAN 8.0

"Space Consumption for RAID 5 or RAID 6". The documentation states

"For an object that is 100 GB

RAID 5 consumes 133 GB." This confirms the 1.33x space multiplier for RAID 5 configurations.

2. Dell Technologies Info Hub: Dell VxRail™ Series TechBook

section "vSAN Storage Policies". This guide explains that VxRail leverages vSAN storage policies to define VM storage characteristics. It details that RAID 5/6 (Erasure Coding) is a space-efficient data protection option

contrasting it with the higher capacity consumption of RAID 1 (Mirroring).

3. VMware vSAN Documentation: vSAN Planning and Deployment Guide 7.0

Chapter 3

"vSAN Storage Policies

" section "Understanding vSAN Storage Policy Space Overhead." This guide provides tables and examples showing that a RAID-5 (FTT=1) policy requires 1.33x the virtual disk size for storage capacity.

The HTTP status code 404 Not Found indicates that the server was unable to locate the specific resource requested by the client. In the context of the REST API call GET /v1/hosts/{sn}, the resource is a host identified by its serial number (sn). Therefore, a 404 response means that the serial number provided in the API request URI does not correspond to any existing host within the VxRail cluster, making it an invalid identifier for this operation.

A. A failure in authentication would typically result in a 401 Unauthorized status code, not a 404 Not Found.

C. A server-side processing error would be indicated by a 5xx series status code, such as 500 Internal Server Error.

D. The API endpoint GET /v1/hosts/{sn} is specifically designed to retrieve a single host. The endpoint to get all hosts would be GET /v1/hosts.

1. Dell VxRail API Reference Guide for VxRail 8.0.x

Page 12

Table "Common response status codes".

The document explicitly defines the 404 Not Found code as: "The server has not found anything matching the request URI." This confirms that the issue is with the resource identifier in the URI.

2. Dell VxRail API Reference Guide for VxRail 8.0.x

Page 100

Section "GET /v3/hosts/{sn}".

Under the "Responses" for this endpoint (which is functionally identical to the v1 endpoint in the question)

the 404 response code is described with the message: "A host with the specified serial number cannot be found." This directly supports the conclusion that an invalid {sn} is the cause.

3. Dell VxRail API Reference Guide for VxRail 8.0.x

Page 12

Table "Common response status codes".

The document defines 401 Unauthorized for authentication issues and 500 Internal Server Error for server-side failures

which rules out options A and C.

VxRail leverages VMware vSAN for its software-defined storage. The vSAN data-in-transit encryption feature secures data traffic between hosts within the cluster. To maintain security, vSAN periodically generates new encryption keys for this traffic. The default interval for this rekeying operation is set to 24 hours, which is equivalent to 1 day. While this interval is configurable, the out-of-the-box default is 24 hours.

B. 6 hours: This is a valid configurable interval but is not the default setting for vSAN data-in-transit encryption.

C. 7 days: This is an incorrect value; the default interval is much shorter to ensure a higher security posture.

D. 12 hours: This is another possible configurable value but does not represent the default rekeying period.

1. VMware vSAN 8.0 Security Guide

Chapter 3

"Data-in-Transit Encryption". The document states

"vSAN generates new keys and rekeys the hosts periodically. The default rekey interval is 24 hours. You can configure the rekeying interval."

2. Dell VxRail™ 7.0.x Security Configuration Guide

Page 28

Section "Data-in-transit encryption". The guide specifies

"The rekey interval is configurable

with a default of 24 hours."

3. VMware vSphere 7.0 Documentation

"Administering VMware vSAN"

Section "Enable Data-in-Transit Encryption". This section confirms

"The default rekey interval is 24 hours."

When the vCenter Server is unavailable, an administrator must use a tool that can connect directly to an ESXi host to troubleshoot vSAN. ESXCLI is the command-line interface for ESXi that allows for direct management and diagnostics on a host without dependency on vCenter. It includes a specific vsan namespace with a comprehensive set of commands (e.g., esxcli vsan health cluster list) to check vSAN health, object status, and disk information, making it the appropriate choice in this scenario.

B. iDRAC: The Integrated Dell Remote Access Controller (iDRAC) is for out-of-band hardware management of the server node. It does not provide insight into the vSAN software layer.

C. PowerCLI: While some PowerCLI cmdlets can connect directly to an ESXi host, its cluster-wide vSAN troubleshooting capabilities are severely limited without a connection to vCenter Server.

D. VxRail Manager: VxRail Manager is deeply integrated with and dependent on vCenter Server for its primary management and monitoring functions. Its vSAN health reporting is unavailable if vCenter is offline.

1. VMware vSphere Documentation

vSAN Administration Guide 8.0

Chapter 11: Administering vSAN with ESXCLI. This chapter details the use of ESXCLI commands for vSAN management. It states

"You can use ESXCLI commands to manage a vSAN cluster... You can run ESXCLI commands from the ESXi Shell on a host in the cluster." This confirms ESXCLI operates directly on the host

independent of vCenter.

2. Dell Support Knowledge Base

Article 000188261: "VxRail: How to check vSAN health from command line" (Version 4

21 Mar 2023). This official Dell article provides the procedure for checking vSAN health via SSH directly on an ESXi host using the command esxcli vsan health cluster list. This is a standard troubleshooting step when the vCenter UI is inaccessible.

3. Dell VxRail 7.0.x Technical Primer

Page 12. The document states

"VxRail Manager is tightly integrated with the vCenter Server and uses the vCenter Server as the primary management interface for the cluster." This confirms the dependency of VxRail Manager on vCenter

making it unsuitable for troubleshooting when vCenter is down.

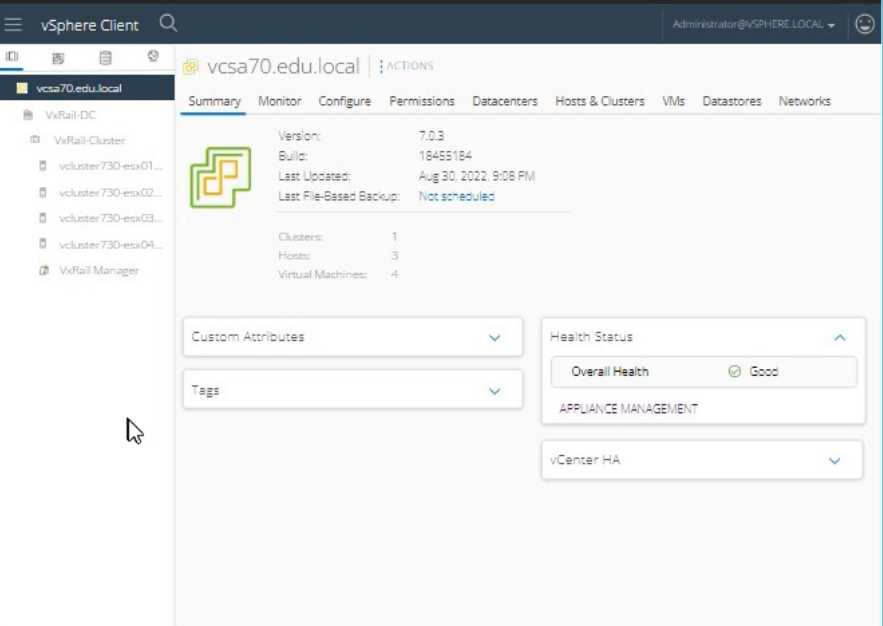

To fulfill the active-active requirement without modifying individual host configurations, the administrator must modify the distributed port group settings centrally via the vCenter networking interface. By editing the "Teaming and failover" policy for the specific vSAN and vMotion distributed port groups, both physical uplinks can be placed into the "Active uplinks" category. This configuration ensures that both uplinks are actively utilized for load balancing and immediate failover, propagating the policy down to all hosts attached to the distributed switch automatically.

VMware. (2021). vSphere Networking: VMware vSphere 7.0. "Edit Teaming and Failover Policy for a Distributed Port Group," pp. 112-114. Available at VMware Docs.

Dell EMC. (2022). Dell VxRail Network Planning Guide. "Traffic separation and load balancing," p. 45.

To safely remove a node from a VxRail cluster, the administrator must use the VxRail Manager vCenter plug-in rather than native vSphere removal actions. Bypassing the plug-in can corrupt the VxRail database and leave vSAN in an inconsistent state. The correct procedure requires selecting the VxRail cluster in the vSphere Client inventory, navigating to the Configure tab, and selecting Hosts under the VxRail section. The administrator can then verify the node's physical serial number (PSNT), select the matching host (V0730040000000), and initiate the "Remove" workflow. This ensures proper data evacuation and automated decommissioning.

Dell Technologies. (2022). Dell VxRail Appliance Administration Guide. "Managing VxRail Clusters: Removing a node from a cluster", pp. 112-115. Official Dell Technical Documentation.

VMware. (2021). vSAN Cluster Management. "Removing Hosts from a vSAN Cluster", vSphere 7.0 Documentation. VMware Docs.

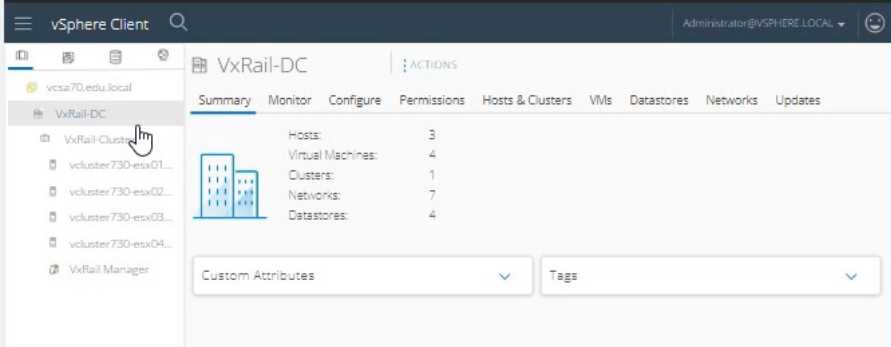

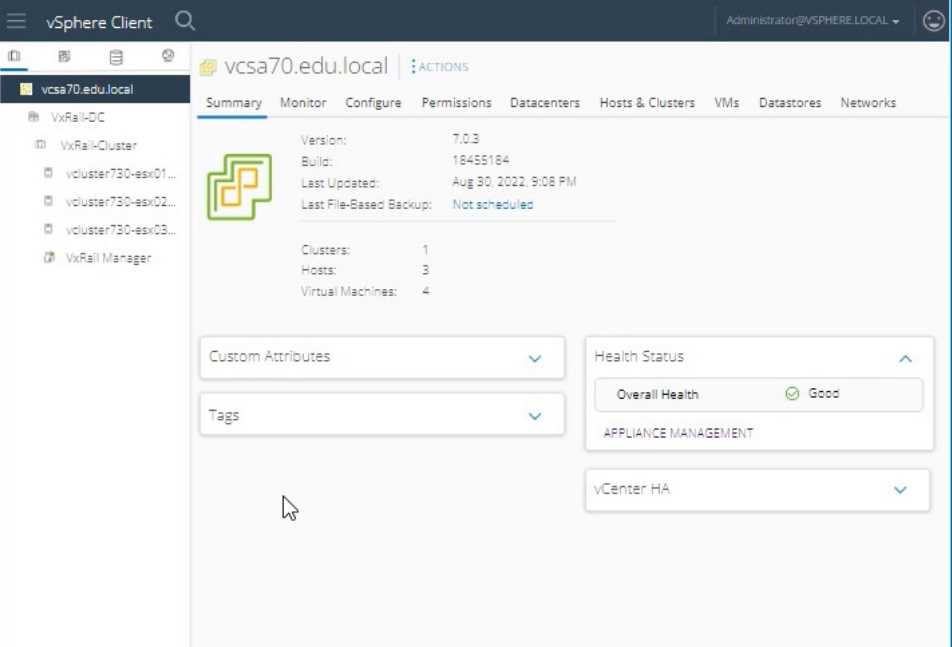

To physically identify a specific node in a server rack, administrators can enable the System LED via the vSphere Client. This is critical during hardware maintenance on a VxRail appliance to ensure datacenter personnel service the correct physical server. The vSphere Client communicates with the host's underlying baseboard management controller (such as iDRAC for Dell-based VxRail nodes) to toggle the chassis identification illumination. By selecting the target host in the vCenter inventory and navigating to the Hardware Overview within the Configure tab, the physical LED on the selected node (vcluster730-esx03.edu.local) will illuminate, preventing accidental disruption to healthy nodes.

VMware by Broadcom: vSphere Monitoring and Performance Guide (vSphere 7.0). Section: "Managing Hardware Health and Status" -> "Turn On or Turn Off the System LED on a Host".

Dell Technologies: Dell VxRail Appliance Administration Guide (7.0.x). Section: "Managing and Monitoring VxRail Hardware" (Specific procedures detailing vCenter integration with node hardware identifiers).

To secure vSAN storage against unauthorized access for both data on disk and in flight, administrators must enable vSAN Data-at-Rest Encryption and vSAN Data-in-Transit Encryption at the cluster level. Data-at-rest encryption protects data stored on the physical drives using a Key Management Server or a vSphere Native Key Provider (which is already configured in this scenario). Data-in-transit encryption secures data moving across the vSAN backend network between hosts. Both settings are centrally managed within the vSphere Client under the cluster's vSAN Services configuration tab. Enabling these natively secures the VxRail environment without requiring self-encrypting drives (SEDs).

VMware. (2021). vSphere 7.0 Update 3: Administering VMware vSAN. Section: "Using Encryption in a vSAN Cluster", pp. 112-115. Official VMware Documentation.

Dell Technologies. (2022). Dell VxRail Appliance: Administration Guide for vSphere 7.0. Section: "Securing VxRail Storage with vSAN Encryption", pp. 88-90. Official Dell Documentation.

VMware. (2021). vSphere Security Guide 7.0. Section: "vSphere Native Key Provider Overview", pp. 45-48. Official VMware Documentation.

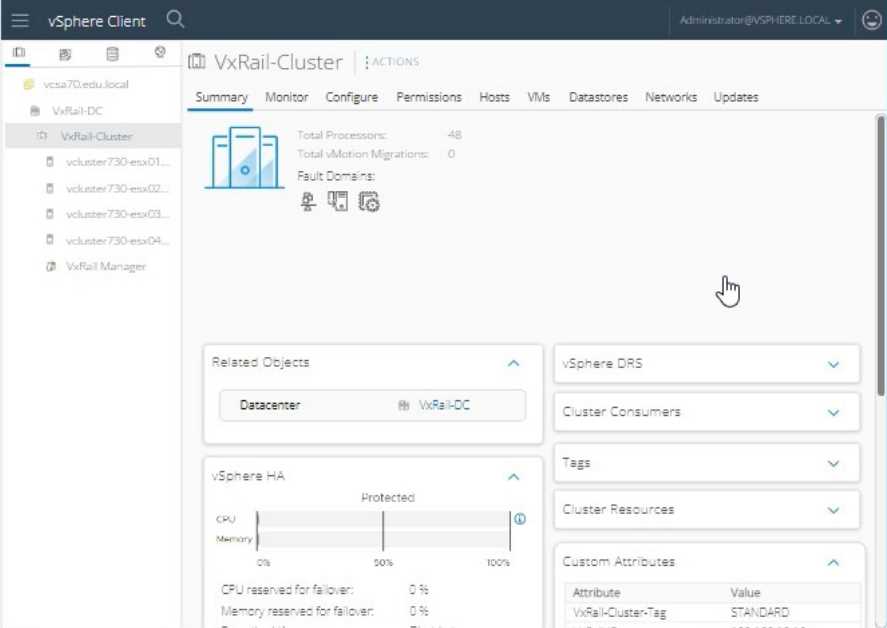

The warning "Health monitoring is currently disabled" in the VxRail node physical view is triggered when the vSAN Performance Service is turned off. VxRail relies on vSAN health and performance metrics to populate the physical view accurately. In the provided image of the VxRail-Cluster summary, under the "vSAN Overview" widget, it explicitly states "vSAN Performance Service is disabled on this cluster." Navigating to the cluster's vSAN configuration settings and enabling the Performance Service allows the system to collect historical and real-time statistics, thereby resolving the warning and restoring full monitoring functionality to the Dell VxRail Manager plugin.

Dell Technologies. (2022). Dell VxRail 7.0.x Administration Guide. "Monitoring VxRail cluster health and performance", p. 84-86. (Official Vendor Documentation).

VMware by Broadcom. (2021). vSAN Monitoring and Troubleshooting Guide v7.0. "Configuring vSAN Performance Service", Section 3.1. (Official Vendor Documentation).

VMware by Broadcom. (2021). vSAN Planning and Deployment v7.0. "Enable vSAN Performance Service", p. 112. (Official Vendor Documentation).
