HPE7-J01 Practice Questions

HPE Alletra 9000 storage arrays support flexible disaster recovery topologies using Remote Copy (RC) software, including N-to-1 replication configurations. In an N-to-1 Remote Copy architecture, multiple independent primary storage arrays (up to N source arrays located at distinct geographically dispersed sites) replicate their transactional volume data to a single consolidated target storage array situated at the central disaster recovery site. Because the target array can accept multiple independent incoming replication streams from all three primary systems simultaneously, the storage administrator only needs to plan for a minimum of one storage array at the central disaster recovery site.

B. Two arrays exceed the minimum requirement because a single central target array can aggregate replication streams from all primary sites.

C. Four arrays are unnecessary; N-to-1 topology consolidates multiple source arrays onto a single destination system at the DR location.

D. Six arrays far exceed requirements for a 3-to-1 replication model, adding unnecessary infrastructure complexity and cost.

- HPE Alletra 9000 Remote Copy Administrator Guide

Section: Remote Copy Topologies - N-to-1 Replication.

- HPE Storage Architecture Guide: HPE Alletra 9000 Data Protection and Disaster Recovery.

HPE Alletra 4000 series systems (such as the Alletra 4110 and 4120) are high-density, server-based data storage infrastructure nodes. When deploying software-defined storage (SDS) solutions like HPE Ezmeral Data Fabric on HPE Alletra 4000 hardware, the underlying physical servers are managed through HPE GreenLake for Compute Ops Manager (COM). Compute Ops Manager provides secure, cloud-native lifecycle management, firmware updating, monitoring, and provisioning for server-based storage hardware platforms across the enterprise.

Option B: HPE GreenLake for File Storage is a managed cloud service for file workloads, not a hardware management tool for SDS servers.

Option C: HPE GreenLake for Block Storage is used to manage block-based storage systems (like HPE Alletra 6000/9000/MP), not SDS servers.

Option D: Data Ops Manager is dedicated to managing enterprise block storage infrastructure and data services, not server lifecycle management for SDS hardware.

- HPE GreenLake for Compute Ops Manager Data Sheet

"Supported Hardware Platforms: HPE Alletra 4000 Storage Servers."

- HPE Alletra 4000 System Architecture and SDS Solution Guide

"Managing Infrastructure via HPE GreenLake Cloud Platform."

HPE GreenLake Flex with Cohesity deployed on HPE Alletra 4000 storage servers provides an end-to-end data management platform that directly addresses all specified requirements. Cohesity DataProtect and the Cohesity DataPlatform unify backup, recovery, file, object, and archiving workloads onto a software-defined, scale-out architecture. This approach eliminates traditional data silos across secondary storage environments. Furthermore, Cohesity SmartFiles delivers integrated scale-out NAS capabilities alongside comprehensive protection for hypervisors, containers, physical servers, databases, and cloud workloads. Deploying this solution on density-optimized HPE Alletra 4000 storage servers within the HPE GreenLake Flex consumption model delivers scalable performance, centralized management, and flexible, pay-per-use economics tailored for large enterprise workloads.

A. While Commvault supports diverse workloads, it requires separate underlying storage targets and does not natively integrate a unified scale-out NAS file/object data platform like Cohesity.

B. HPE Zerto focuses primarily on continuous data protection (CDP) and disaster recovery for VMs, lacking comprehensive scale-out NAS and broad physical/archive target consolidation.

D. Veeam provides extensive backup capabilities, but it does not natively provide built-in scale-out NAS storage service capabilities to eliminate file/object data silos across the enterprise platform.

1. Hewlett Packard Enterprise Technical White Paper

"HPE GreenLake for Data Protection with Cohesity on HPE Alletra 4000 Storage Servers"

Document ID: a00059876enw

pp. 4–12.

2. Cohesity and HPE Joint Solution Brief

"Modern Data Management and Protection with HPE Alletra 4000"

HPE Partner Ecosystem Guide

Section: "Scale-Out NAS and Secondary Storage Consolidation".

When evaluating a hybrid cloud storage strategy for media and entertainment workloads, assessments must address both technical latency requirements and financial impacts. Production editing workloads demand predictable, low-latency access (100ms SLA), which is best served by keeping active content on high-performance on-premises flash systems like HPE Alletra 5000. For archival growth, object storage provides cost-effective scaling, but cloud egress fees during data retrieval can significantly increase operational costs. A comprehensive evaluation analyzes on-premises capacity exhaustion timelines, egress charges, and storage tiering. Utilizing HPE Alletra Cloud Manager allows seamless lifecycle policy administration across tiers, while maintaining a hot object storage tier ensures occasional retrieval for editing stays within SLA requirements.

B.

Evaluating only capacity ignores critical egress costs and network latency requirements, and expiring 800TB of media archive after two years destroys business-critical enterprise assets.

C.

HPE Alletra 6000 is a high-performance primary block storage array, not a dedicated local cache appliance for public cloud object storage read workflows.

D.

HPE StoreOnce is an inline deduplication backup target optimized for backup streams, not a high-throughput active production media editing storage gateway.

- HPE Alletra 5000 Architecture and Design Guide

Section: Hybrid Cloud Integration and Lifecycle Policies

pp. 14-18.

- HPE GreenLake for Storage Architecture Guide

Section: Media Workloads and Cloud Egress Optimization

pp. 32-35.

To verify the installation and deployment status of a vSphere Client plug-in (such as the HPE Storage Plug-in for VMware vSphere Client or HPE OneView for VMware vCenter) integrating with HPE Alletra storage, the administrator must navigate to the Client Plug-Ins inventory:

1. Click the Menu (≡) button in the top-left corner of the vSphere Client.
2. Select Administration from the drop-down menu.
3. Under the Solutions category in the left pane, select Client Plug-Ins.
4. In the Client Plug-Ins table, verify that the HPE plug-in is listed with its version, vendor, and status displaying as Deployed and Enabled.

Why other visible areas are incorrect:

• Storage Providers view (current screen): Registers and displays VASA (vSphere APIs for Storage Awareness) providers for VMware vSphere Virtual Volumes (vVols) and storage profiles. It does not verify the deployment or operational state of the vSphere Client UI plug-in.
• Configure > Settings (General / Licensing): Manages global vCenter Server appliance settings and vSphere license keys, not modular client plug-in extensions.
• ACTIONS Menu: Houses operational tasks targeted specifically at the selected vCenter Server node (e.g., New Datacenter, Add Host), not administrative solution management.

HPE Official Vendor Documentation: HPE Storage Plug-in for VMware vSphere Client User Guide, Section: "Verifying the Plug-in Deployment in vSphere Client", Paragraphs 2–4.

HPE Official Vendor Documentation: HPE OneView for VMware vCenter with Operations Manager User Guide, Chapter: "Installing and Configuring the Plug-in", Section: "Verifying the vSphere Client Integration", pp. 28–31.

HPE Official Architecture Guide: HPE Alletra Storage with VMware vSphere Implementation Guide, Document ID: a00121858en_us, Section: "vSphere Client Plug-in Verification and Array Integration".

VMware Official Vendor Documentation: vCenter Server and Host Management (vSphere 7.0 / 8.0), VMware by Broadcom, Section: "Solutions and Client Plug-Ins" > "View and Monitor Client Plug-Ins in the vSphere Client".

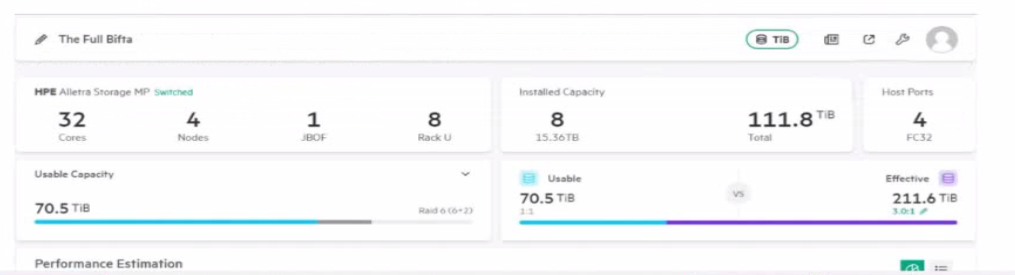

In the HPE Ninja Sizer tool, the Performance Estimation card displays the real-time simulation of workload throughput, IOPS, and latency against the hardware configuration.

• The Underlying Bottleneck: The current configuration specifies an HPE Alletra Storage MP B10000 4-node switched architecture (32 cores) configured with only 8 NVMe SSDs (15.36 TB) in a single JBOF under RAID 6 (6+2). In an all-NVMe disaggregated shared-everything architecture, 8 drives represent the minimum supported drive count and provide insufficient drive-queue depth and backend bandwidth to feed four controller nodes, severely throttling read/write performance.
• Diagnostic Workflow: Clicking the Performance Estimation banner or its Table/List view toggle switches the view from high-level capacity/IOPS gauges to the detailed Component Utilization / Bottleneck Breakdown. This diagnostic view explicitly reports utilization percentages across the Controller CPUs, Host Ports, Backend SAS/NVMe-oF interconnects, and Drive Media, enabling the partner to identify that the drive layer is saturated at 100% and appropriately scale the drive count or JBOFs.

HPE Alletra Storage MP Architecture and Technology Technical White Paper

Document ID: a00130635enw

Section: "Disaggregated Shared-Everything Architecture," pp. 6–11 (Drive enclosure scaling, minimum drive requirements, and multi-node backend bandwidth considerations).

HPE GreenLake for Block Storage built on HPE Alletra Storage MP – QuickSpecs

Document Version: Overview & Configuration Rules (Sections: "Controller Nodes," "Base Enclosures," and "Drive Enclosure Rules").

HPE Storage Sizing Tools Best Practices Guide (HPE Ninja Sizer / NinjaStars)

Section: "Analyzing Workload Headroom and Component Bottlenecks in Storage Sizing," Paragraphs 3.2–3.4 (Utilizing the Performance Estimation breakdown table to identify limiting components).

To back up an Oracle database using the Oracle Recovery Manager (RMAN) tool to an HPE StoreOnce appliance, the database relies on the HPE StoreOnce Catalyst Plug-in for Oracle RMAN. This plug-in interfaces natively with StoreOnce using the proprietary StoreOnce Catalyst protocol rather than standard NAS protocols or Virtual Tape Library (VTL) emulation.

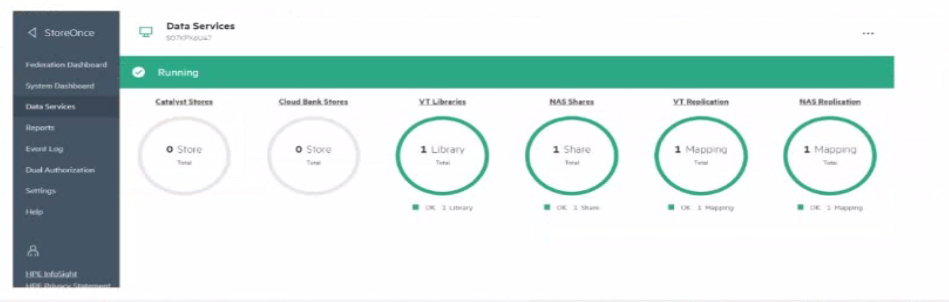

Under the StoreOnce GUI Data Services dashboard, the administrator must click the Catalyst Stores tile to access the Catalyst store management console to provision a new store, define client access permissions, and configure backup policies for the Oracle RMAN client.

Reasoning for why other options on the dashboard are incorrect:

• Cloud Bank Stores: Used exclusively for detaching and copying deduplicated backup data to public or private cloud/object storage for archive or long-term retention; it cannot serve as a direct backup ingestion target for RMAN.
• VT Libraries: Configures Virtual Tape Library emulation (VTL) for tape-based backup workflows using Fibre Channel or iSCSI, which is not the Catalyst-integrated RMAN configuration.
• NAS Shares: Used to provision SMB (CIFS) or NFS file shares. While RMAN can technically write image copies over NFS, it does not leverage native StoreOnce Catalyst protocol features or the Catalyst RMAN plug-in.
• VT Replication / NAS Replication: Configures appliance-to-appliance replication mappings specifically for VTL libraries and NAS shares, not local backup intake policies.

Hewlett Packard Enterprise, HPE StoreOnce Catalyst Plug-in for Oracle RMAN User Guide (Part Number: EH991-90909a), Section: "Configuring StoreOnce Catalyst stores for Oracle RMAN", pp. 14–18.

Hewlett Packard Enterprise, HPE StoreOnce System User Guide (StoreOnce 4.x), Section: "Data Services > StoreOnce Catalyst: Creating and Managing Catalyst Stores", Document ID: a00057036en_us, pp. 62–67.

Hewlett Packard Enterprise, Protecting Oracle Databases with HPE StoreOnce Catalyst and RMAN (Technical White Paper), Section: "StoreOnce Catalyst Overview and Integration Architecture", pp. 4–9.

Hewlett Packard Enterprise, HPE StoreOnce Systems Best Practices Guide, Section: "StoreOnce Catalyst Best Practices: Oracle RMAN Integration", Document Part Number: 4AA4-7729ENW, Rev. 6, pp. 21–24.

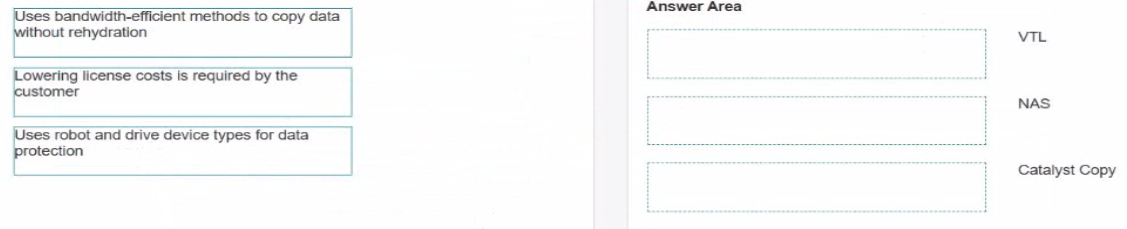

HPE StoreOnce Virtual Tape Library (VTL) emulates traditional physical tape infrastructure, presenting virtual robot media changers and tape drive device types to backup applications. StoreOnce NAS (CIFS/NFS) targets are typically deployed when lowering software license costs is required, as many backup software vendors allow writing to generic network file shares without the premium licenses needed for specialized deduplication or VTL targets. HPE StoreOnce Catalyst Copy provides optimized replication between appliances by transmitting only unique, deduplicated blocks. This provides a highly bandwidth-efficient method to copy data over WANs without requiring data rehydration prior to transfer.

Hewlett Packard Enterprise (HPE). HPE StoreOnce System User Guide. "Configuring Virtual Tape Libraries (VTL)" section, detailing emulated robotics and drive mappings.

Hewlett Packard Enterprise (HPE). HPE StoreOnce Catalyst User Guide. "Catalyst Copy Overview" section, verifying bandwidth-efficient data replication and non-rehydrated transfer mechanisms.

Hewlett Packard Enterprise (HPE). HPE StoreOnce Best Practices for Backup. NAS integration section, highlighting the use of standard CIFS/NFS protocols for broad compatibility and reduction of third-party backup software target licensing costs.

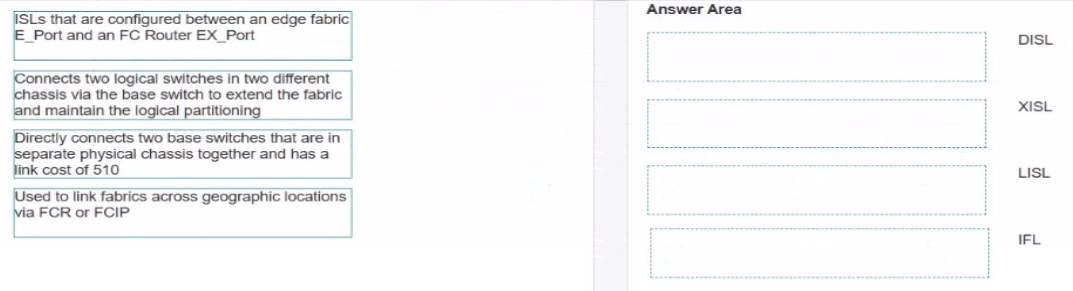

Based on Brocade's Virtual Fabrics and Routing architecture: Extended ISLs (XISL) provide the transport mechanism that allows logical switches in different chassis to communicate over a base fabric, maintaining logical partitioning. A Logical ISL (LISL) is assigned a default FSPF link cost of 510 by the Fabric OS to ensure that routing protocols prioritize dedicated physical ISLs over shared logical paths. Inter-Fabric Links (IFLs) are the foundational backbone links used in Fibre Channel Routing (FCR) and FCIP to connect fabrics across geographic distances. Finally, a Dedicated ISL (DISL) in a routing topology provides a dedicated physical connection between an edge fabric E_Port and a router EX_Port.

IBM Redbooks: IBM System Storage b-type Multiprotocol Routing (Section on Brocade Virtual Fabrics, XISL, and LISL architecture).

Broadcom/Brocade: Fabric OS Administration Guide (Section detailing Virtual Fabric FSPF link cost metrics and default LISL cost of 510).

Broadcom TechDocs: Fibre Channel Routing Concepts (Section on Inter-Fabric Links, EX_Port to E_Port connectivity, and FCR distance extension).

In the HPE Alletra Storage MP architecture, the rear panel ports of the controller node are functionally separated to support a disaggregated setup. The iLO Ethernet port (1) handles dedicated out-of-band hardware management. The Admin port (2) is utilized for the primary management plane and connection to the Data Services Cloud Console. Northbound or front-end connectivity (3) leverages specific OCP slots to provide external access to hosts via standard storage adapters. Southbound or back-end connectivity (4) facilitates 100GbE data traffic among all storage nodes and NVMe JBOFs through backend switches. The unlisted fifth option (5) corresponds to the serial service port, which requires a USB dongle and is used for low-level diagnostics.

HPE Support. HPE Alletra Storage MP X10000 – Parts Support Guide, Document ID: psg00250aen_us, Section: Overview (Rear View).

Hewlett Packard Enterprise. HPE Alletra Storage MP B10000 QuickSpecs, Document ID: a50006985enw, Configuration Information.

HPE Support. HPE Alletra Storage MP B10000 – Parts Support Guide, Document ID: psg000248aen_us, Section: Cabling Overview.
