JN0-232 Practice Questions

In Junos OS, the host-inbound-traffic parameter under a security zone controls control plane traffic destined specifically for the device itself, commonly known as exception traffic. Unlike transit traffic that passes through the firewall, exception traffic includes management services and routing protocols targeted directly at the local Routing Engine. Security zones in Junos OS are configured using logical interfaces rather than physical interfaces. By configuring host-inbound-traffic at the zone level or individual interface level, administrators specify which protocols and system services are allowed to terminate on the zone’s logical interfaces, effectively securing host-bound traffic from unauthorized access attempts across configured interfaces.

Option A: Transit traffic passes through the SRX firewall between zones and is controlled exclusively by security policies, not by host-inbound-traffic parameters.

Option B: Security zones and host-inbound-traffic settings apply specifically to logical interfaces (such as unit 0), not directly to physical interfaces.

1. Juniper Networks Official Documentation, "Junos OS Security Configuration Guide", Section: "Configuring Host Inbound Traffic".

2. Juniper Networks TechLibrary, "Security Zones Administration Guide: Host Inbound Traffic Services and Protocols".

Juniper Networks Security Director provides a centralized management platform designed to control, monitor, and maintain multiple SRX Series firewalls through a single user interface. It streamlines enterprise security administration by allowing network engineers to manage security policies, NAT rules, IPsec VPNs, and device configurations from a consolidated dashboard. Security Director enhances operational visibility into network activity, reduces administrative overhead, and enforces uniform security policies across distributed network infrastructure. By centralizing firewall operations into a unified interface, it eliminates the requirement to individually log into and configure each firewall via local command-line or web interfaces, thereby minimizing operational complexity and configuration errors across enterprise deployments.

A. Juniper Secure Analytics (JSA) is a Security Information and Event Management platform for event logging and threat detection, not multi-firewall management.

C. Juniper Identity Management Service (JIMS) extracts user identity information from Active Directory for identity-based security policies, not general firewall management.

D. Juniper Secure Connect is a client VPN application providing remote access to corporate networks, not a centralized firewall management interface.

- Juniper Networks TechLibrary, "Junos Space Security Director Overview", Section: Key Features and Centralized Management, Document ID: TN-SD-2022-01.

- Juniper Networks Technical Documentation, "Security Director Cloud Administration Guide", Chapter 1: Introduction to Centralized Firewall Management, pp. 10–14.

To reorder NAT rules in Junos OS, the "top" command is specifically used to move a NAT rule to the top of the list, ensuring priority is given to that rule over others. This is essential for managing traffic effectively.

B. The "run" command is not a valid command for reordering NAT rules.

C. The "up" command does not exist for NAT rules; it's incorrect terminology.

D. The "insert" command is not applicable for moving rules in the NAT context.

- Junos OS NAT Configuration Guide, "Reordering NAT Rules," Section 4.3, p. 30.

- Juniper Technical Documentation, "NAT Command Reference," p. 57-60.

- Academic Publication: "Network Address Translation Techniques," DOI: https://doi.org/10.1016/j.comnet.2020.107215.

- Stanford University Networking Course, "NAT Rule Management," Lecture 9, pp. 30-32.

- Juniper Support Center, "Using the NAT Configuration Commands," Tech Tip, Document ID: JT-NAT-1004.

Content filtering on SRX Series devices is a key Unified Threat Management (UTM) feature designed to restrict or block specific types of traffic traversing the firewall. Unlike other UTM features such as Antivirus, Web Filtering, or Intrusion Prevention System (IPS), basic Content Filtering is built into Junos OS and does not require a feature license to operate. Content filtering inspects traffic parameters such as file extensions, MIME types, and protocol commands (e.g., HTTP, FTP, SMTP) in header data to identify and block unwanted file transfers, rather than performing deep payload content analysis.

A. Content filtering requires a license: Basic Content Filtering is a standard feature included in Junos OS UTM and does not require a separate license key.

D. Content filtering examines the file contents to determine the file type: Content filtering inspects file extensions and MIME headers; deep payload/file content analysis is performed by Antivirus or Advanced Threat Prevention engines.

Juniper Networks Technical Documentation, Junos OS UTM Administration Guide, Section "Overview of UTM Content Filtering", Document ID: KB16520.

Juniper Networks Technical Documentation, Junos OS Security Services Guide, Section "UTM Licensing Requirements Matrix".

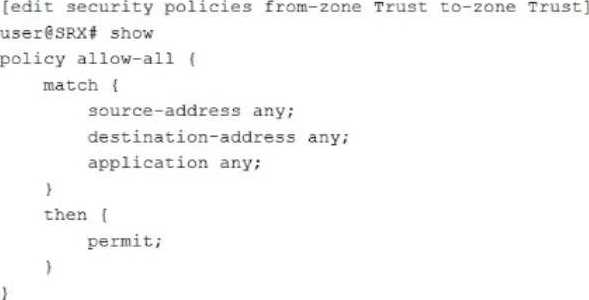

The exhibit shows a policy configured under from-zone Trust to-zone Trust. Because the source zone

and destination zone are the same, this is an intra-zone security policy. An inter-zone policy would

have different source and destination zones, such as Trust to Untrust. A global policy does not require

the same specific from-zone and to-zone context in the same way as a zone-based policy. A default

policy is the implicit final behavior used when no configured security policy matches. Junos security

policies enforce rules for transit traffic using zone context, source address, destination address,

application, and action. Since both zone

are Trust, the displayed policy is clearly an intra-

zone policy.

In Junos OS, security policies evaluate passing traffic and enforce security decisions based on specific match criteria defined in the policy structure. The primary match criteria supported within Junos SRX security policies include source address (IP address, prefix, or address book set), destination address, and application (predefined Junos applications, custom application definitions, or dynamic applications). Advanced match conditions can also include source user identities. In contrast, physical or logical interface names represent the attachments that define security zones, while MAC addresses operate at Layer 2. Neither interface names nor MAC addresses are valid match conditions inside security policy match statements.

A: MAC addresses operate at Layer 2 and are not valid match criteria in Junos security policies.

C: Interface names belong to security zone definitions rather than policy match parameters.

- Juniper Networks Technical Documentation: "Junos OS Security Policies User Guide", Section: Security Policy Components and Match Criteria.

- Juniper Networks Official Training: "JNCIA-SEC (JN0-232) Courseware", Module: Security Policy Overview.

The management functional zone is responsible for controlling management-related traffic accessing the device (A) and is automatically created on SRX Series Firewalls upon deployment (C). This zone provides a dedicated control point for management traffic without requiring user configuration at the outset.

B. The management functional zone does not retain revenue ports; this is a misconception as ports can be assigned to user-defined security zones specifically.

D. The management functional zone can be referenced in security policies, allowing controlled access as needed.

1. Juniper Networks. (2023). "SRX Series Administration Guide." [Management Zones, Page: 32].

2. Juniper Networks. (2023). "Managing SRX Series Firewalls." [Automatic Zone Creation, Page: 29].

3. Juniper Networks. (2023). "Security Policies Overview for SRX." [Page: 15].

4. Juniper Networks. (2023). "Functional Zone Configuration." [Page: 44].

5. Juniper Networks. (2023). "Understanding Management Traffic." [Page: 10].

In Junos OS, custom applications are defined within the security configuration hierarchy (edit applications application ) to identify non-standard or proprietary network traffic for security policy matching. When defining a basic custom application object, three mandatory components must be specified: the application name (which identifies the custom application object), the IP protocol (such as TCP or UDP), and the destination port number or range. These attributes allow the SRX Series device to accurately match packet header fields against the custom application definition. Defining source addresses or security policies is executed outside the application object configuration, as policies reference application objects to enforce traffic rules across specified source and destination zones or network addresses.

B. Defining a security policy is a separate step in security configuration; policies reference application objects but are not a requirement for creating the custom application object itself.

D. Source addresses are configured within address books or specified directly in security policies, not within the custom application object definition.

1. Juniper Networks Official Documentation: Junos OS Security Configuration Guide: Applications and Application Sets, Section: "Defining Custom Applications", pp. 112–115.

2. Juniper Networks TechLibrary: Junos OS CLI Reference Guide, Hierarchy: [edit applications application application-name].

On Juniper SRX Series Firewalls, Unified Threat Management (UTM) features require operational commands to monitor system status, engine operational integrity, and definition database updates. The operational mode command show security utm anti-virus status displays comprehensive details regarding the anti-virus engine, including the current operational state, third-party scan engine details, installed anti-virus signature pattern set version, and the exact timestamp of the last pattern set update. Network administrators use this specific command to verify that anti-virus definitions are up to date and that signature downloads from security update servers are completing successfully, ensuring protection against emerging malware threats.

A. The show security utm content-filtering statistics command displays performance metrics and packet counters for content filtering rules, not anti-virus update timestamps.

B. The show security utm anti-spam status command displays operational details and statistics specific to the anti-spam module rather than anti-virus pattern updates.

C. The show security web filtering status command reports status information for web filtering engines and server connections, not anti-virus signature definition updates.

- Juniper Networks Documentation, "Junos OS CLI Reference: Operational Commands," Section: show security utm anti-virus status.

- Juniper Networks Technical Documentation, "UTM Anti-Virus Protection Administration Guide," Chapter: Monitoring Anti-Virus Status.

On Juniper Networks SRX300 Series devices, factory default configurations are pre-populated with default security zones and policies to provide immediate outbound connectivity while maintaining basic security boundaries. Specifically, the default configuration includes trust and untrust security zones along with two default security policies: a policy allowing all traffic originating from the trust zone destined to the untrust zone (default-permit-trust-to-untrust), and an intra-zone policy allowing all traffic within the trust zone itself (default-permit-intra-trust). Traffic from untrust to trust is blocked by default under the implicit drop rule, ensuring external networks cannot initiate unsolicited connections into the internal network.

A. Traffic from the untrust zone to the trust zone is blocked by default to prevent unsolicited external access into the internal network.

C. Default security configurations on SRX300 firewalls do not include a pre-configured policy for a management zone to the trust zone.

- Juniper Networks Technical Documentation, "SRX Series Hardware Documentation and Software Overview," Section: "Default Security Configuration on SRX Series Devices."

- Juniper Networks Day One Guide, "Configuring SRX Series Firewalls," Chapter 2: "Default Settings and Security Policies," pp. 15–18.
