MULESOFT-DEVELOPER-I Practice Questions

The CloudHub platform architecture is designed to run exactly one Mule application per CloudHub worker. Each worker is a dedicated instance of Mule runtime engine in the cloud. This one-to-one mapping ensures that applications are isolated from each other, with their own dedicated CPU, memory, and other resources. This isolation prevents one application's performance or failure from impacting another.

B. While it's true a worker runs at least one application, this answer is imprecise. The strict limit is one, making "At most one" the most accurate choice.

C. The number of applications per worker is a fixed architectural constraint of CloudHub and does not depend on other factors like worker size or region.

D. Option A is the correct answer, as a CloudHub worker is designed to host a single Mule application.

1. MuleSoft Documentation, "CloudHub Architecture", Section "Workers". It states, "Each worker is a dedicated instance of Mule that runs your integration application." This implies a single application per worker. (docs.mulesoft.com/runtime-manager/cloudhub-architecture#workers)

2. MuleSoft Documentation, "Deploy to CloudHub". The deployment process involves selecting an application and assigning it to one or more workers. The documentation consistently describes the model as one application running on a set of workers. (docs.mulesoft.com/runtime-manager/deploying-to-cloudhub)

The flow first sets the payload to the string "before". Next, the "Is Number" validator checks if the payload is a numeric value. Since the string "before" is not a number, the validation fails, and the validator throws a VALIDATION:INVALIDNUMBER error. Because there is no explicit error handling scope defined in the flow, Mule's default error handler is invoked. For an HTTP Listener, this handler stops the flow and returns an HTTP 500 (Internal Server Error) response. The body of this response is the error's description, which is configured in the validator's "Error message" field as "Validation Error".

A. After: The flow never reaches a point where the payload is set to "After".

B. before: Although the payload is "before" when the error occurs, the flow terminates and an error response is generated instead of a successful response with this payload.

D. null: The payload is explicitly set to "before" and is never null. The validation failure results in an error response, not a null response.

1. MuleSoft Documentation, "Validation Connector", Section: "Is Number Validator". This document confirms that the validator throws an error if the input value does not represent a number.

2. MuleSoft Documentation, "Error Handling", Section: "Default Error Handler". This section explains that for an HTTP Listener-triggered flow, the default handler returns a 500 status code and sets the response body to the error description.

An HTTP Request with default settings forwards only the payload. Query parameters must be explicitly set in the Request configuration, and flow variables are never propagated automatically between separate HTTP calls. Consequently, the child flow receives only the payload.

B) Flow variables (quantity var) are not sent by the HTTP Request by default

C) Query parameters are not automatically copied into the outbound request

D) Combines both mistakes: neither var nor query param are transferred

1. HTTP Connector 1.6 – “HTTP Request” → Request Builder fields, docs.mulesoft.com/http-connector/1.6/http-request-ref (note on Query Params).

2. MuleSoft Documentation – “Variable Scopes and Propagation”, docs.mulesoft.com/mule-runtime/4.4/mule-variables#scope, showing variables are local to a flow unless explicitly passed.

In the context of MuleSoft's recommended IT operating model for API-led connectivity, C4E stands for Center for Enablement. This is a cross-functional team responsible for creating and managing reusable assets, establishing best practices, and providing support and guidance to development teams across the organization. The goal of a C4E is to enable developers to build and consume APIs in a consistent, efficient, and self-service manner, thereby increasing agility and fostering innovation, rather than acting as a centralized bottleneck.

A. While enablement leads to empowerment, "Centre for Empowerment" is not the official term used by MuleSoft for this operating model component.

B. "Centre for Engagement" is not the term used by MuleSoft. The focus is on enabling development teams, not just engaging with them.

D. MuleSoft specifically uses "Enablement" instead of "Excellence" to emphasize the C4E's role in enabling others, rather than being a central team that does all the work.

1. MuleSoft Whitepaper, "Introducing an API-led approach to connectivity". "A Center for Enablement (C4E) is a central IT function that enables business units to deliver on their own projects by providing them with the right tools, assets, and support."

2. MuleSoft Documentation, "Catalyst Operating Model". "The Center for Enablement (C4E) is a team of cross-functional experts that evangelizes and drives API-led connectivity and the consumption of the assets produced."

In a Mule 4 Batch Job, the On Complete phase is executed after all records have been processed. The payload available in this phase is not the original payload or the processed records. Instead, it is a BatchJobResult object. This object provides a summary of the batch execution, including statistics like the number of total, successful, and failed records. When this object is logged or serialized, it presents these summary statistics without the actual record data.

B. The On Complete phase does not receive the records from the last step; it receives a summary object for the entire job execution.

C. The payload is a summary object, not an aggregation of all processed records, to avoid high memory consumption with large datasets.

D. The original payload is split into individual records during the Loading and Dispatching phase and is not available in the On Complete phase.

1. MuleSoft Documentation, "Batch Processing". In the "On Complete Phase" section, it states: "The payload for the On Complete phase is the BatchJobResult object that provides statistics for the batch job."

2. MuleSoft Documentation, "Batch Job Result Object". This page details the methods available on the BatchJobResult object, such as getLoadedRecords(), getFailedRecords(), etc., confirming it's a statistical summary.

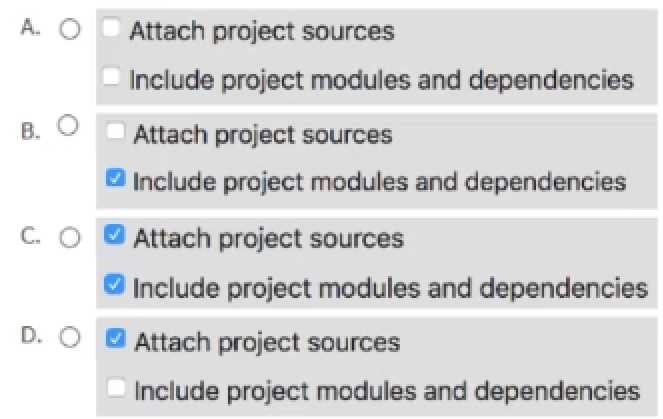

The smallest archive is produced when “Include project modules and dependencies” is NOT selected.

Studio already creates a Maven-based project; on import the other developer’s Studio automatically resolves the ActiveMQ JMS dependency from the pom.xml and the local Mule runtime.

Including either the runtime or all dependencies would bloat the JAR unnecessarily.

Option D (shown with the check box cleared) therefore yields the minimal file that still contains the project’s source and configuration and runs successfully after Maven resolves the libraries.

A. Includes Mule runtime; significantly increases size and is unnecessary for import into Studio.

B. Packages all modules and dependencies, creating a fat JAR; larger than needed.

C. Similar to B; still embeds external libraries, not minimal.

1. MuleSoft Docs – Packaging and Deploying Applications from Studio, docs.mulesoft.com/mule-runtime/4.4/studio-export-app#including-dependencies (explains that unchecking the option relies on Maven to fetch libs).

2. MuleSoft Docs – Using Maven in Studio, docs.mulesoft.com/mule-runtime/4.4/maven-concept (other developer resolves dependencies automatically).

The Mule flow executes sequentially. First, the "Set Payload" component sets the payload to the integer 1. The flow then enters the Choice router. The first condition, #[payload == 1], evaluates to true, so its corresponding "Set Payload" component executes, changing the payload to 2. After the Choice router completes, the flow proceeds to the final "Set Payload" component, which unconditionally sets the payload to the integer 3. This is the final value that is returned.

A. The value 1 is the initial payload set before the Choice router, but it is overwritten twice before the flow ends.

B. The value 2 is set inside the first path of the Choice router, but it is immediately overwritten by the final Set Payload component.

D. The value 4 would only be set if the payload entering the Choice router was neither 1 nor 2, which is not the case here.

1. MuleSoft Documentation, "Choice Router". The documentation explains that "After a route is selected and processed, the flow continues to the next component after the Choice router." This confirms the flow proceeds to the final Set Payload.

2. MuleSoft Documentation, "Set Payload Component". This document states that the component "Replaces the payload of the message with the value you provide." This confirms each Set Payload overwrites the previous value.

3. MuleSoft Documentation, "Mule Concepts - Mule Message". This explains the sequential processing of events through components in a flow, confirming the execution order from listener to the final component.

The flow execution begins in the Try scope. The File Write operation fails, throwing a FILE:CONNECTIVITY error. This error is caught by the On Error Propagate handler. Inside the handler, the Choice router evaluates the error type. The condition error.errorType.identifier == 'FILE:CONNECTIVITY' evaluates to true. Consequently, the payload is set to the string "ORDER:NOTCREATED". Because the error handler is an On Error Propagate, it sends an error response to the HTTP Listener, which then returns the current payload ("ORDER:NOTCREATED") with a 500-level status code to the web client.

A. This is the error type's identifier, not the message configured in the flow to be returned to the client upon this specific error.

C. This message is in the default block of the error handler's Choice router and would only be returned for errors other than FILE:CONNECTIVITY.

D. This message is set only upon the successful completion of the Try scope. The File Write operation failed, so this part of the flow is never reached.

1. MuleSoft Documentation, "Mule Error Handlers". This document explains the behavior of On Error Propagate, which catches an error, executes its components, and then re-throws the error.

2. MuleSoft Documentation, "Error Object". This page details the structure of the error object, including error.errorType.identifier, which is used to identify the specific type of error.

The DataWeave expression must transform an array of XML user elements into a CSV format. The expression payload.users.user uses the multi-value selector (user) to correctly select all elements under and treat them as an array. The map function then iterates over this array. For each user element, it creates a new object with name and lastName keys, mapping the corresponding values from the XML. When the output is application/csv, DataWeave automatically converts this array of objects into a CSV string with a header row derived from the object keys.

B. Option B: This uses the single-value selector (payload.users.user), which would only process the first element, resulting in an incomplete CSV file with only one data row.

C. Option C: This script is functionally identical to option A and also correct. However, in a single-choice context, both are valid, but option A uses explicit naming for clarity.

D. Option D: This attempts to map over payload.users, which is the parent object, not the array of user records. This would not iterate over the individual users correctly.

- MuleSoft Documentation, "DataWeave Selectors". (Documents the use of the multi-value selector to select all instances of a repeating element in XML).

- MuleSoft Documentation, "Map Operator". (Explains how to use map to iterate over an array and transform each item).

- MuleSoft Documentation, "CSV Format". (Describes how DataWeave transforms an array of objects into CSV format).

The lookup function is the correct way to invoke a subflow from DataWeave. Option B uses the proper syntax: lookup("addItem", { payload: { price: "100", item: "router", itemType: "cable" } }). This passes the required data structure as the payload to the subflow, which the subflow's Set Payload transformer can then process to create the order object.

A. addItem is not a valid DataWeave function - subflows must be invoked using lookup.

C. Direct function call syntax is incorrect; must use lookup for subflow invocation.

D. Missing the payload wrapper that the subflow expects to receive the data.

1. MuleSoft Documentation - DataWeave lookup Function: https://docs.mulesoft.com/dataweave/2.4/dw-mule-functions#lookup

2. MuleSoft Documentation - Flow Reference: https://docs.mulesoft.com/mule-runtime/4.4/flow-reference

3. MuleSoft Developer Guide - Subflows: https://docs.mulesoft.com/mule-runtime/4.4/about-flows
