NSE7_SSE_AD-25 Practice Questions

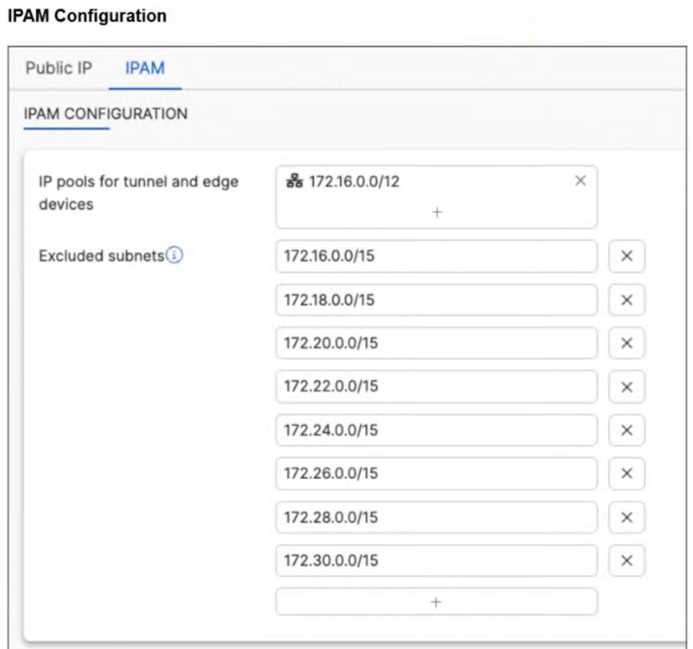

The customer configured the IP pool as 172.16.0.0/12, which spans the address range from 172.16.0.0 to 172.31.255.255. However, they subsequently excluded eight /15 subnets (172.16.0.0/15 through 172.30.0.0/15). Mathematically, these eight /15 subnets perfectly combine to cover the entire 172.16.0.0/12 address space. By doing this, the customer excluded all available networks from the pool, leaving zero usable IP addresses. Additionally, FortiSASE architecture strictly requires the non-excluded IPAM pool to be large enough to allocate at least one /20 subnet per security Point of Presence (PoP). Failing to meet this minimum allocation requirement causes assignment failures and unpredictable network connectivity problems.

B. FortiSASE allocates a /20 subnet per security PoP, not a full /16 per instance. A /16 would exhaust IP spaces far too quickly.

C. The official architectural requirement for FortiSASE IPAM allocation dictates a minimum /20 subnet per "security POP" (Point of Presence), not per generic "Instance."

Fortinet, Inc. (2023). FortiSASE Administration Guide. "IPAM configuration." Fortinet Document Library. (Section detailing IP pool sizing requirements, specifically the allocation of a /20 subnet per security PoP).

RFC 4632. (2006). Classless Inter-domain Routing (CIDR): The Internet Address Assignment and Aggregation Plan. Internet Engineering Task Force (IETF). (Details the subnetting logic proving that eight /15 prefixes precisely aggregate into one /12 prefix).

The Unified FortiClient is the endpoint agent that must be installed on remote user devices. It establishes a secure connection to the FortiSASE service and enforces security policies, regardless of the user's location. This ensures that the device is always protected by redirecting traffic to FortiSASE for inspection and policy enforcement, fulfilling the "always-on" security requirement. The client's VPN capabilities, combined with policy enforcement, are central to this function.

B. SD-WAN on-ramp is a feature for connecting branch offices (thin edges) to the FortiSASE service, not for individual remote users working from home.

C. Secure web gateway (SWG) is a security feature provided by FortiSASE, not the component that facilitates the always-on connection from the endpoint.

D. Thin-branch SASE extension refers to the use case of connecting physical office locations to FortiSASE, distinct from securing individual remote users.

1. Fortinet. (2023). FortiSASE Architecture Guide. Version 23.3. "Remote User Connectivity" section. It states, "FortiSASE provides secure remote access for remote users by using the FortiClient endpoint."

2. Fortinet. (2023). FortiSASE Deployment Guide. Version 23.3. "Remote users" section. This guide details the configuration of FortiClient profiles for always-on VPN connectivity to FortiSASE.

The key difference lies in the BGP session architecture. The BGP per overlay method establishes a unique iBGP session for each individual spoke-to-hub IPsec tunnel. This design often uses mode-cfg to dynamically assign an IP address to the spoke's tunnel interface for peering. In contrast, the BGP on loopback method simplifies hub configuration by using a single iBGP session on the hub's loopback interface to peer with all spokes. This reduces the number of BGP neighbors on the hub and the number of advertised routes, as only the loopback IP is needed for peering.

B. This option incorrectly reverses the definitions of the two methods. BGP on loopback uses a single session, not multiple.

C. This option misrepresents the methods. BGP on loopback is a design choice for simplification, not the default, and BGP per overlay is not used for loopback interfaces.

D. This option is incorrect. BGP on loopback simplifies hub configuration, and BGP per overlay typically increases the number of advertised routes (tunnel IPs).

1. Fortinet. (2024). FortiOS Administration Guide 7.4.3. "BGP" section, under "Advanced VPN." This guide details different BGP configurations for IPsec VPNs, explaining the concepts of peering over tunnel interfaces versus loopback interfaces.

2. Fortinet. (2023). FortiSASE Secure Private Access Deployment Guide. "Routing Configuration" section. The guide discusses routing designs for connecting hubs to FortiSASE, including BGP configurations that align with these principles for establishing connectivity between spokes and the private application hub.

3. Fortinet. (2023). SD-WAN Architecture Guide. "Overlay Design - BGP" section. This document provides a detailed comparison of BGP overlay designs, including per-tunnel sessions versus a single session over a loopback, which are the core concepts in the question.

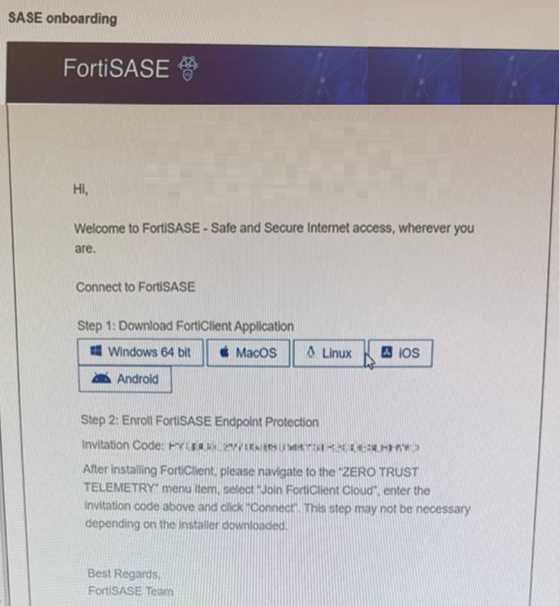

Based on the provided exhibit, the image displays a standard, automated onboarding email generated by the FortiSASE platform and sent directly to an end user. This is confirmed by the welcoming tone, the inclusion of download links for various operating systems, and the signature "Best Regards, FortiSASE Team." Furthermore, the text under Step 2 explicitly states, "This step may not be necessary depending on the installer downloaded." This indicates that if a pre-configured or managed installer is provided to the user, the FortiClient agent can automatically connect to the FortiSASE environment, allowing the manual invitation code entry step to be entirely skipped.

A: Incorrect. The exhibit does not instruct the user to manually select specific FortiSASE components during setup; it only instructs them to download the application for their respective OS.

C: Incorrect. The exhibit explicitly contradicts this statement by noting that entering the invitation code "may not be necessary depending on the installer downloaded."

Fortinet, Inc. (2023). FortiSASE Administration Guide. Section: "Endpoint user onboarding." This official vendor documentation details the automated email workflow used by the FortiSASE platform to send connection instructions and unique invitation codes directly to end users.

Fortinet, Inc. (2023). FortiSASE Administration Guide. Section: "Connecting FortiClient to FortiSASE." This section confirms that administrators can utilize pre-configured installers (often deployed via MDM solutions) that bundle the invitation code, thereby bypassing the need for manual user entry.

Based on the exhibits, Win7-Pro has been assigned the ZTNA tag FortiSASE-Non-Compliant. In FortiSASE, ZTNA tags are dynamically applied based on continuous device posture checks. The Secure Internet Access Policy is evaluated top-down. Policy ID 2 ("Non-Compliant") explicitly denies all internet traffic for any source carrying the FortiSASE-Non-Compliant tag. Because Win7-Pro's device posture triggered this specific tag, its internet traffic is actively blocked by Policy ID 2 before it can ever reach the permissive "Web Traffic" or "Allow-All" rules below it.

B. Win7-Pro cannot reach the FortiSASE SSL VPN gateway: The "Managed Endpoints" exhibit clearly shows the Management Connection for Win7-Pro is "Online," verifying successful communication with the gateway.

C. The Win7-Pro FortiClient version does not match the FortiSASE endpoint requirement: The exhibits lack the specific Zero Trust Tagging rules needed to definitively prove the FortiClient version mismatch is the exact trigger for the non-compliant tag.

D. Win-7 Pro has exceeded the total vulnerability detected threshold: Without viewing the configured ZTNA tagging rules, there is no evidence to confirm that 176 vulnerabilities explicitly exceed a defined threshold to apply the tag.

Fortinet, Inc. (2023). FortiSASE Administration Guide, "Endpoint Posture" section. Defines how continuous posture checks apply ZTNA tags dynamically to endpoints based on compliance rules.

Fortinet, Inc. (2023). FortiSASE Administration Guide, "Secure Internet Access (SIA)" section. Details the top-down evaluation of firewall policies and how ZTNA tags act as source criteria for Deny/Accept actions.

For a contractor working within the HQ office using a personal device, installing a full VPN client is often undesirable. FortiSASE can function as an explicit web proxy, providing Secure Web Gateway (SWG) services. By configuring the contractor's browser with a Proxy Auto-Configuration (PAC) file, their web traffic can be securely directed to FortiSASE for inspection and policy enforcement without requiring an agent. This method is ideal for providing temporary, secure internet access to guest or unmanaged endpoints on a corporate network.

B. A tunnel policy is for remote access users connecting via FortiClient VPN, not for users already on the corporate network needing internet access.

C. ZTNA is designed for secure access to specific private applications, not for providing general, secure internet access.

D. A self-registration portal is for user onboarding or guest network access, but the underlying security mechanism for internet traffic would still be SWG/proxy.

Fortinet. (2024). FortiSASE Architecture Guide 24.1. "Secure Web Gateway". p. 11. This section describes agentless access using a PAC file to direct browser traffic to FortiSASE for SWG inspection.

Fortinet. (2024). FortiSASE Administration Guide 24.1. "Explicit web proxy". p. 158. This section details how to configure FortiSASE as an explicit proxy and use PAC files for client configuration.

Onboarding a Secure Web Gateway (SWG) endpoint without an agent involves configuring the device's browser to proxy web traffic through FortiSASE. This requires two key components. First, a proxy auto-configuration (PAC) file is used to direct the browser to the appropriate FortiSASE security point of presence (PoP). Second, the FortiSASE CA certificate must be installed on the endpoint so that the browser trusts the certificate used by FortiSASE for SSL inspection, preventing security warnings for HTTPS sites.

C. FortiSASE invitation code: This code is used exclusively for onboarding agent-based deployments by registering the FortiClient software with the correct FortiSASE instance.

D. FortiClient installer: The FortiClient installer is used for agent-based deployments. The agentless SWG method, by definition, does not involve installing this software.

1. FortiSASE Administration Guide, Version 23.3, "Secure Web Gateway > SWG for remote users > Onboarding SWG users". The procedure for agentless users explicitly lists downloading the PAC file and downloading/installing the FortiSASE root CA certificate as the required steps.

2. FortiSASE Datasheet. The document differentiates between agent-based protection via FortiClient and agentless protection for web traffic, which relies on browser proxy settings (PAC files).

To exclude specific internet traffic from the FortiSASE tunnel and route it directly out of the user's local internet connection (the endpoint physical interface), you must configure split tunneling via traffic steering. In FortiSASE, this is achieved by modifying the Endpoint Profile. By adding the specific destination (such as an FQDN, IP, or ISDB object for Google Maps) as a steering bypass destination within the endpoint profile, FortiClient is instructed to exclude this traffic from the IPsec/SSL VPN tunnel. This allows the traffic to go directly to the internet, providing local breakout while all other traffic remains steered into FortiSASE for inspection.

A: ZTNA TCP access proxy forwarding rules are designed to securely publish private enterprise applications, not to control outbound internet traffic routing or bypass SASE tunnels.

B: Firewall policies enforce security on traffic after it reaches the FortiSASE gateway. They cannot instruct the local FortiClient to redirect traffic to the endpoint's physical interface.

C: URL filtering exemptions only bypass web inspection for traffic already inside the tunnel; they do not route traffic out of the physical interface or bypass the tunnel itself.

Fortinet Official Documentation: FortiSASE Administration Guide (v23.4 / v24.1), Section: "Endpoint Configuration" -> "Endpoint profiles" -> "Configuring traffic steering". This section details how to use steering bypass rules to exclude traffic from the FortiSASE tunnel.

Fortinet Official Documentation: FortiSASE Administration Guide, Section: "Split tunneling". This section explains the architecture of bypassing the VPN tunnel to allow direct internet access from the endpoint's physical network adapter.

In FortiSASE (built upon modern FortiOS 7.x architecture), configuring a regex-based DLP mechanism requires a bottom-up configuration approach due to object dependencies. First, you must create a DLP Data Pattern to define the exact Regular Expression. Second, this pattern is incorporated into a DLP Dictionary, which groups related data types for scanning. Third, you create a DLP Profile to serve as the container for your security policies. Finally, you configure a DLP Rule within that profile. The rule references the dictionary and dictates the enforcement action (e.g., block or log) when the regex is triggered. "DLP Sensor" is an incorrect distractor, as sensors were deprecated and merged directly into DLP Profiles starting in FortiOS 7.0.

FortiSASE Administration Guide, Section: Configuration > Security > Data leak prevention. Details the hierarchical configuration of data patterns, dictionaries, and profiles.

FortiOS 7.2 Administration Guide, Section: Security Profiles > Data leak prevention. Explains the creation order: DLP Data Types (Patterns) -> DLP Dictionaries -> DLP Profiles -> DLP Rules.

FortiOS 7.0 Release Notes, Section: Changes in default behavior > DLP. Documents the architectural change where the "DLP sensor" object was officially deprecated and merged into the "DLP profile," proving "DLP Sensor" is the invalid option for current FortiSASE deployments.

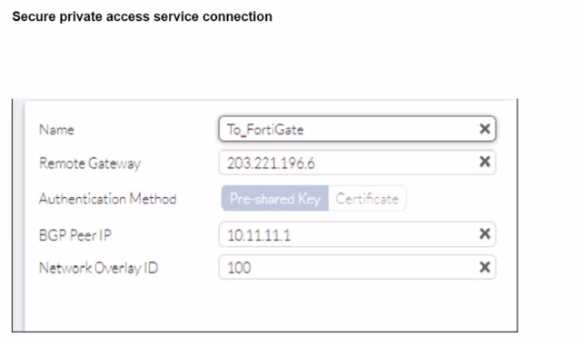

FortiSASE Secure Private Access (SPA) mandates the use of IKEv2 for establishing the IPsec VPN tunnel with a FortiGate hub. FortiSASE does not support IKEv1 for this function. If the IPsec VPN tunnel fails to establish, the most common configuration mismatch is the FortiGate hub running the default IKEv1 setting instead of the required IKEv2 in its Phase 1 parameters. Ensuring that the FortiGate hub has IKEv2 enabled in the IPsec Phase 1 settings is necessary to successfully negotiate and bring the tunnel up.

A. NAT is typically disabled for overlay routing traffic; moreover, firewall policies do not prevent the underlying IPsec tunnel (Phase 1) from initially establishing.

B. BGP router IDs must be strictly unique across all peers. Matching the router ID on the hub and FortiSASE would cause a BGP peering collision.

C. FortiSASE actually relies heavily on IKEv2 mode-config to dynamically receive its BGP peer IP and overlay IP address assignment from the FortiGate hub.

Fortinet, Inc. (2023). FortiSASE Administration Guide: Secure Private Access (SPA) using a FortiGate hub. Section: Configuring the FortiGate hub. (Specifies the mandatory requirement for IKEv2 in Phase 1 configurations).

Fortinet, Inc. (2023). FortiOS Administration Guide: IPsec VPN. Section: IKEv2 and mode-config. Fortinet Document Library.
