OMG-OCEB2-FUND100 Practice Questions

In BPMN, a process instance is considered complete only when there are no more active tokens flowing through it. When parallel paths are created (e.g., by a Parallel Gateway), each path has its own token. An End Event consumes a token from an incoming path, terminating that specific path. However, the overall process instance remains active until all other parallel paths have also completed and their tokens are consumed. Therefore, the process completes only after the last of the parallel paths has finished its execution.

A. This describes the behavior of merging gateways like an Inclusive or Event-Based Gateway, not the condition for completing a process with parallel flows.

C. The paths do not need to complete simultaneously. They can finish at different times; the process ends only after the last path is complete.

D. This statement is false. BPMN syntax allows an End Event to have multiple incoming Sequence Flows, acting as a sink for various process paths.

- Object Management Group (OMG). (2013). Business Process Model and Notation (BPMN) Version 2.0.2. OMG Document Number formal/2013-12-09.

- Section 10.3.4, Parallel Gateway (p. 298): Describes how parallel flows are created and synchronized. The implicit merge at the end of a process requires all parallel paths to complete.

- Section 10.5.3, End Event (p. 319): "If the End Event is in a top-level Process... then the Process instance is terminated." This termination happens when the last token is consumed.

In Statistical Process Control (SPC), a control chart is used to monitor a process over time. "Common cause variation" refers to the natural, inherent, random variability of a process that is in a state of statistical control. The upper control limit (UCL) and lower control limit (LCL) are calculated boundaries, typically set at three standard deviations (sigma) from the process average. Data points that fall within these limits, in a random pattern, are considered to be exhibiting common cause variation. This indicates the process is stable and predictable.

A. This is too restrictive. Common cause variation is expected to occur throughout the entire range between the control limits, not just within one standard deviation of the average.

C. Data points outside the control limits signify "special cause variation," which is attributable to a specific, identifiable cause and indicates that the process is out of control.

D. This is also too restrictive. While points within two sigma are part of common cause variation, this option incorrectly excludes the area between two and three sigma.

E. While the zone nearest the average typically has the most points in a normal distribution, this is a statistical property, not the definition of the region for common cause variation.

1. Montgomery, D. C. (2013). Introduction to Statistical Quality Control (7th ed.). John Wiley & Sons. Chapter 4, Section 4.2, "Control Charts and Process Capability," explains that points plotting inside the control limits signal the presence of only common-cause variation.

2. Antony, J., & Preece, D. (2002). Teaching the fundamentals of statistical process control to manufacturing and service organisations. Work Study, 51(1), 35-41. https://doi.org/10.1108/00438020210415610. The paper states, "If all the points on the chart lie between the control limits without any non-random patterns, the process is said to be in a state of statistical control."

3. MIT OpenCourseWare. (2004). 15.062 Data Mining, Session 10: Quality Control. Massachusetts Institute of Technology. Retrieved from https://ocw.mit.edu/courses/15-062-data-mining-spring-2003/resources/lecture-10-quality-control/. The lecture notes define control limits as the bounds for expected random variation (common cause).

Lanes are sub-partitions within a Pool used to organize and categorize activities. The BPMN specification is intentionally flexible regarding what a Lane can represent; it can be a role, a department, an application, or a system component like a GUI or backend. The model correctly uses Lanes to visually separate tasks performed by the user interface from those performed by the backend system, which is a valid and common modeling practice.

A. Lanes are defined as sub-partitions that exist exclusively within a Pool, not outside of it.

B. While Lanes often represent organizational units, this is not a mandatory rule. They can represent systems, roles, or other logical groupings.

C. BPMN has no rule prohibiting a Lane from representing a GUI. It is a valid way to partition activities based on the system performing them.

- Object Management Group. (2013). Business Process Model and Notation (BPMN) Version 2.0.2. (OMG Document Number: formal/2013-12-09).

- Section 8.2.6, p. 89: "A Lane is a sub-partition within a Process... The meaning of the Lanes is up to the modeler."

- Weske, M. (2019). Business Process Management: Concepts, Languages, Architectures (3rd ed.). Springer.

- Chapter 5, Section 5.3.1, discusses the use of Pools and Lanes to represent different aspects of an organization, including roles and software systems.

The Supply-Chain Operations Reference (SCOR) model, maintained by the Association for Supply Chain Management (ASCM), provides a standard language and framework to describe, measure, and analyze supply chains. Its primary function is to offer a set of standard descriptions for processes, metrics, and best practices. The model is built around six primary management processes: Plan, Source, Make, Deliver, Return, and Enable. By using these standardized building blocks, organizations can accurately model their supply chain configurations and benchmark their performance against other companies using a common vocabulary.

A: Resource planning is a specific activity within the supply chain that the SCOR model helps to describe, not the descriptive method itself.

B: Universal exports relate to international trade and are not a concept used by the SCOR model for describing supply chains.

D: Procurement dependencies are specific relationships that can be modeled using SCOR's standard descriptions, but they are not the descriptive tool itself.

1. ASCM. SCOR Digital Standard. The official documentation defines SCOR as a reference model that "integrates business processes, performance metrics, practices, and people skills into a unified structure" using standard descriptions.

2. Bolisani, E., & Bratianu, C. (2018). The SCOR Model. In Emergent Knowledge Strategies: Strategic Thinking in Knowledge Management (pp. 265-287). Springer, Cham. https://doi.org/10.1007/978-3-319-60657-612. This chapter describes SCOR as a "standard for describing supply chain management" (p. 265).

Semantics refers to the meaning of the symbols and constructs within a notation. A notation with "clear semantics" ensures that each element has a precise, unambiguous, and formally defined meaning. This allows all stakeholders who read a model created with that notation to have a common understanding of what is being represented. This "unique, shared meaning" is fundamental for effective communication, analysis, and model-driven execution.

A. Correct sequencing - This is one aspect that clear semantics helps define (e.g., the meaning of a sequence flow), but it is not the complete picture.

B. A clear, simple diagram - Simplicity is a pragmatic quality of a diagram, whereas semantics is about meaning. A semantically clear model can still be complex.

D. A straightforward, logical depiction - This is a desired outcome of good modeling, but "unique, shared meaning" is the direct and precise definition of what clear semantics provides.

1. Object Management Group. (2015). Semantics of Business Vocabulary and Business Rules (SBVR) Version 1.3. OMG Document Number formal/2015-05-05, Section 7.1, p. 17. The introduction discusses the need for formal semantics to provide a basis for "shared meaning" and avoid ambiguity.

2. Harel, D., & Rumpe, B. (2004). Meaningful modeling: What's the semantics of "semantics"? Computer, 37(10), 64-72. https://doi.org/10.1109/MC.2004.172. This paper discusses the critical role of well-defined semantics in modeling languages to ensure a single, unambiguous interpretation.

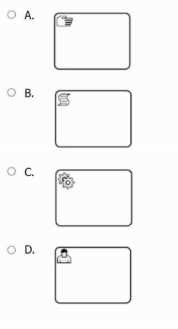

The question asks to identify the element for a task performed by a human without software assistance. This is the definition of a Manual Task in BPMN. The standard icon for a Manual Task is a hand, which is shown in Option A. This task type is used for physical work or other activities that are part of the process but are not tracked or managed by a business process automation engine.

B. This is the icon for a User Task, which is performed by a human with the aid of a software application or workflow system.

C. This is the icon for a Service Task, which represents an automated task that uses a web service or other application.

D. This is the icon for a Script Task, where an automated script is executed by a process engine.

1. Object Management Group. (2013). Business Process Model and Notation (BPMN) Version 2.0.2 (formal/2013-12-09). Table 10.3 - Task Types, p. 164. Defines Manual Task as: "A Manual Task is a Task that is expected to be performed without the aid of any business process execution engine or any application." The table also shows the corresponding hand icon.

2. Dumas, M., La Rosa, M., Mendling, J., & Reijers, H. A. (2018). Fundamentals of Business Process Management. Springer. Section 4.3.1, "Tasks," p. 109. Distinguishes between manual, user, and automated tasks.

Process topology refers to the structure of the process, specifically the sequence of tasks and the flow of control between them. The technique of discovering the preceding and succeeding tasks for each activity directly builds this sequential and logical structure. This method systematically maps out the connections and dependencies, revealing the end-to-end process flow, which is the essence of a process topology definition.

A. This technique focuses on performance management and governance aspects, not the structural sequence or topology of the process tasks.

B. This discovers decision logic within a task, which is a component of the process, but not the overall flow or topology between tasks.

D. This focuses on the data requirements (inputs/outputs) for individual tasks, not the control-flow relationship between them.

1. Dumas, M., La Rosa, M., Mendling, J., & Reijers, H. A. (2018). Fundamentals of Business Process Management (2nd ed.). Springer. In Chapter 3, "Process Discovery," the text emphasizes that a key outcome is an as-is process model, which is built by identifying activities and, crucially, their ordering (p. 80).

2. Harmon, P. (2014). Business Process Change: A Guide for Business Managers and BPM and Six Sigma Professionals (3rd ed.). Morgan Kaufmann. Chapter 9 discusses process discovery and describes the core activity as defining the steps in the process and how they are sequenced (p. 175).

The BPMN 2.0 specification defines the precise notation for its elements. A Message Flow is graphically represented as a dashed line with a circle at its source and an open (unfilled) arrowhead at its target. This visually distinguishes it from a Sequence Flow (solid line, solid arrowhead), an Association (dotted line), and a Data Association (dotted line with a directed arrowhead). The image in option B correctly depicts this standard notation.

A. A black line with a solid arrowhead represents a Sequence Flow, which shows the order of activities within a single Pool.

C. Message Flows connect objects between different Pools, not within the same one. Sequence Flows operate within the same pool.

D. While this is a correct definition of a Message Flow's purpose, option B is the more precise answer as it describes the specific graphical notation shown.

1. Object Management Group. (2013). Business Process Model and Notation (BPMN) Version 2.0.2. OMG Document Number formal/2013-12-09. Section 8.3.5, "Message Flow," p. 98, states, "The Message Flow is a dashed line with an open arrowhead." Figure 8.10 on the same page provides a visual example.

2. Freund, J., & Rücker, B. (2012). Real-Life BPMN: With introductions to CMMN and DMN. Camunda Services GmbH. Section 3.2.3, "Message Flow," describes the notation as a "dashed arrow."

Process complexity is most directly affected by the number of branches, which represent decision points (gateways) and alternative or parallel paths in the process flow. Each branch increases the number of possible execution paths, making the process logic more intricate and harder to understand, manage, and analyze. While other factors contribute to scale or length, branching is a primary driver of structural and logical complexity.

A. The number of steps relates to the length of a process, not necessarily its logical complexity. A long, simple sequence is not complex.

C. The number of instances relates to the execution volume or throughput of the process, not the intrinsic complexity of its design.

D. The number of people using a process relates to its organizational scope and scale, not the complexity of the process logic itself.

1. Dumas, M., La Rosa, M., Mendling, J., & Reijers, H. A. (2018). Fundamentals of Business Process Management (2nd ed.). Springer. In Section 7.3.2, "Qualitative Analysis," the text identifies complexity drivers, noting that "the more gateways a model has, the more complex it is" (p. 239).

2. Cardoso, J. (2006). Process Control-Flow Complexity: An Approach Based on a Process Algebra. In Proceedings of the 4th International Conference on Business Process Management (BPM 2006). The academic literature on process complexity frequently uses metrics like cyclomatic complexity, which is directly calculated from the number of decision points (branches) in a process model. (p. 1). https://doi.org/10.1007/118417601

When business requirements change radically, it signifies a need for Business Process Reengineering (BPR) rather than simple incremental improvement. In such scenarios, a thoroughly documented As-Is process model is crucial. It serves as an essential baseline to understand the full scope of the existing problems, identify all impacted areas, justify the need for radical change to stakeholders, and provide a foundation for managing the complex transition to the new To-Be process. Without a clear As-Is model, the risks associated with a radical redesign increase significantly.

A. If a business process is new, there is no "As-Is" process to use as a basis; the design starts directly with the "To-Be" model.

C. New regulatory rules typically require specific, often incremental, changes to an existing process, not necessarily a complete redesign.

D. If a clear definition of the current activities cannot be obtained, it is impossible to create an As-Is model to use as a basis.

Harmon, P. (2014). Business Process Change: A Guide for Business Managers and BPM and Six Sigma Professionals (3rd ed.). Morgan Kaufmann. p. 198. Harmon states, "If an organization is contemplating a radical change, it is still important to create an As-Is process model... The As-Is model provides a baseline for discussing what is wrong with the existing process and for measuring the nature of the proposed change."

Weske, M. (2019). Business Process Management: Concepts, Languages, Architectures (3rd ed.). Springer. pp. 24-26. Discusses the BPM lifecycle, where the As-Is modeling phase is a prerequisite for analysis and redesign, especially in complex transformation projects.
