TDS-C01 practice question 23 of 35

What is the one most important thing you should do after creating a Dual-axis chart?

Full set: 316 questions
Answer options
A: Synchronise the axis Correct answer
B: Change the colours
C: Edit the labels
D: Hide the axis
Correct Answer:
A. Synchronise the axis
Explanation

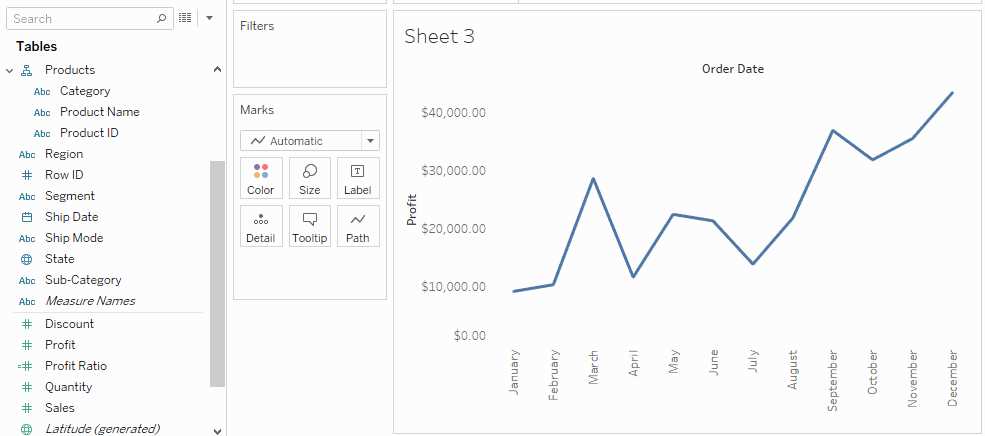

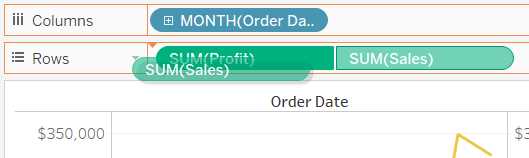

After creating a dual axis chart, make sure to synchronise their axis since they both might not be having the same y-axis. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/Tableau_TDS-C01/page_142_img_1.jpg To align the two axes in a dual axes chart to use the same scale, right-click (control-click on Mac) the secondary axis, and select Synchronize Axis. This aligns the scale of the secondary axis to the scale of the primary axis. In this example, the Sales axis is the secondary axis and the Profit axis is the primary axis. If you would like to change which axis is the primary, and which axis is the secondary, select the field on the Columns or Rows shelf that is the secondary, and drag it in front of the primary field on the shelf until you see an orange triangle appear. In this example, you can select the SUM(Sales) field on the Rows shelf, and drag it in front of the SUM(Profit) field. The Sales axis is now the primary and the Profit axis is the secondary. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/Tableau_TDS-C01/page_142_img_2.jpg
Reference: https://help.tableau.com/current/pro/desktop/en-us/multiple_measures.htm
