UIPath-ADAv1 Practice Questions

UiPath Orchestrator provides built-in support for several third-party credential stores to securely manage robot credentials. This allows organizations to leverage their existing enterprise-grade secret management solutions. The officially supported plugins include Azure Key Vault, CyberArk CCP (Central Credential Provider), HashiCorp Vault, Thycotic Secret Server, and BeyondTrust Password Safe. The older, non-CCP CyberArk integration is also supported. This list directly corresponds to the options provided in answer A.

B. Cisco and Google Credentials are not listed as natively supported credential stores in Orchestrator.

C. Google Credentials and Amazon Security Services are not specific, built-in credential store integrations for Orchestrator.

D. Cisco, Amazon Security Services, Google Credentials, Microsoft SCS, and IBM Vault are not among the natively supported credential stores.

1. UiPath Orchestrator Guide, "Credential Stores". The documentation page lists the supported third-party credential stores, stating: "Orchestrator supports the use of third-party credential stores... The following are supported: Azure Key Vault, CyberArk CCP, HashiCorp Vault, Thycotic Secret Server, BeyondTrust."

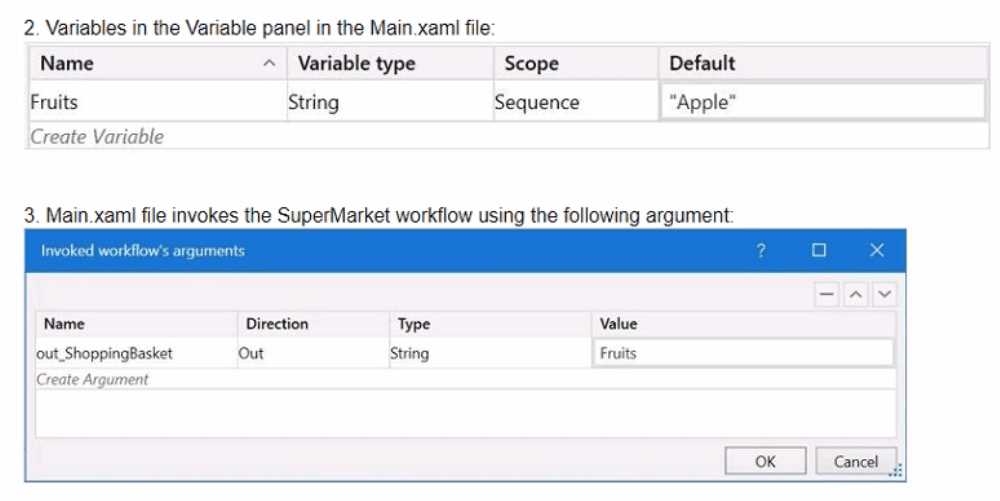

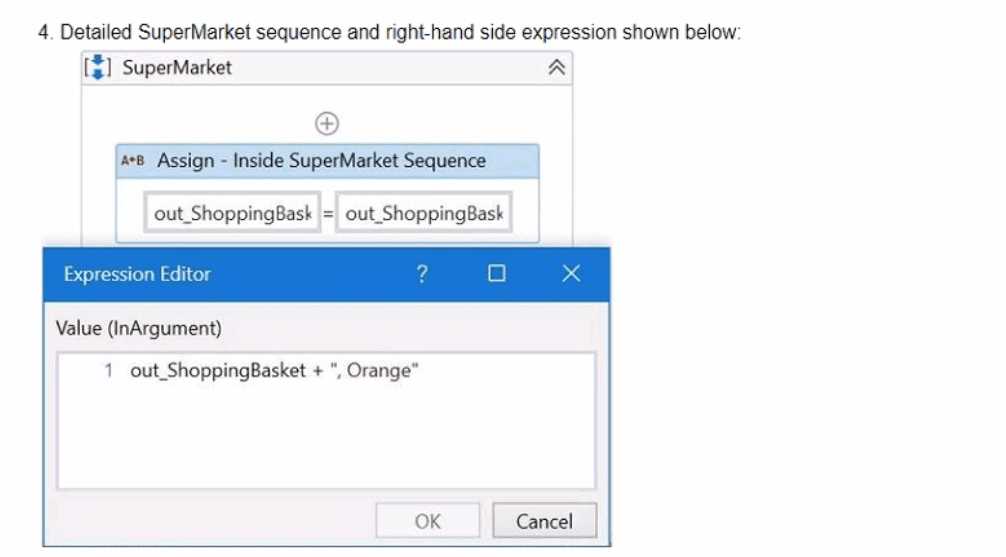

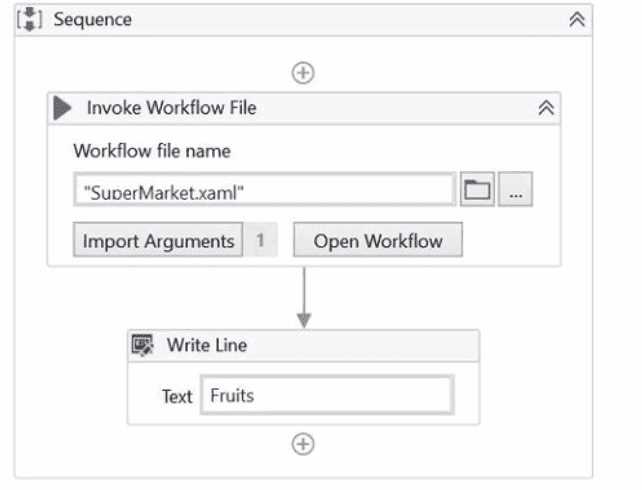

In UiPath, an argument's direction determines the flow of data between workflows. When the Fruits variable (initially set to "Apple") is mapped to the out_ShoppingBasket argument with an Out direction, its value is explicitly NOT passed into the SuperMarket.xaml workflow. Inside the invoked workflow, out_ShoppingBasket starts as an uninitialized string (empty/null). The Assign activity executes the expression Nothing + ", Orange", which results in ", Orange". Upon returning to Main.xaml, this new value is passed back and completely overwrites the original "Apple" value stored in the Fruits variable. Therefore, the Write Line activity outputs only the "Orange" component.

A. The original value "Apple" is overwritten when the invoked workflow returns the assigned Out argument, so it is not retained in the variable.

C. This would be the correct output only if the argument direction was set to In/Out, which would successfully pass "Apple" in to be concatenated.

D. The initial value "Apple" is discarded entirely by the Out argument behavior; it is not shifted or appended to the end of the string.

UiPath Studio Documentation, "Arguments" (Section: Argument Directions), UiPath Studio User Guide. (Details the null-initialization behavior of Out arguments upon invocation).

UiPath Activities Documentation, "Invoke Workflow File", UiPath System Activities Guide. (Explains variable-to-argument mapping and memory overwriting upon workflow return).

UiPath Studio features an automatic refactoring capability. When a variable is renamed in the Variables panel, the Integrated Development Environment (IDE) automatically finds and updates all occurrences of that variable's name within all activities in the currently opened workflow file (.xaml). This applies to all variable types and ensures consistency, reducing the risk of errors that could arise from manual updates.

A. Only String variable names are automatically updated in the activities in the current file: The automatic renaming feature applies to all variable types, not just Strings.

B. Variable names are updated in the panel but must be manually updated in all Ul Automation activities that use them: Renaming is automatic across all activities in the current file, eliminating the need for manual updates.

D. Variable names are updated in the panel but must be manually updated in all Image activities that use them: The automatic update is not specific to certain activity packs; it applies universally within the current workflow.

1. UiPath Documentation, "About Variables": "If you change the name of a variable from the Variables panel, it is automatically updated in all its occurrences in the current open file." (Section: Managing Variables > Removing Variables).

2. UiPath Academy, "Variables, Data Types and Control Flow in Studio": This course demonstrates that renaming a variable in the panel propagates the change throughout the activities in the designer canvas. (Module: Variables and Arguments).

The Robotic Enterprise (RE) Framework is designed to handle Business Exceptions differently from Application Exceptions. By default, a Business Exception indicates invalid data or a business rule violation that cannot be resolved by retrying. Therefore, the framework is configured to mark the transaction as "Failed" with a "Business" type and move to the next transaction item without attempting any retries, regardless of the retry settings in the configuration file or Orchestrator queue.

A. The transaction will be retried only one time.

This is incorrect. Retries are reserved for Application Exceptions, not Business Exceptions, in the default REFramework logic.

C. The transaction will be retried 2 times.

This is incorrect. The Orchestrator queue retry setting applies to Application Exceptions, not Business Exceptions.

D. The transaction will be retried multiple times, until it will be processed successfully.

This is incorrect. The framework has a finite retry mechanism for Application Exceptions and does not retry Business Exceptions at all.

1. UiPath Documentation, "The UiPath Robotic Enterprise Framework" -> "Error Handling and Exception Management". The documentation explicitly states: "A transaction that fails with a Business Rule Exception is not retried." This confirms that the process moves on to the next transaction.

2. UiPath Academy, "Robotic Enterprise Framework Deep Dive" course, Module: "Exception Handling and Logging". This course material details the logic within the SetTransactionStatus.xaml workflow, which bypasses the retry mechanism for any exception of type BusinessRuleException.

In the provided UiPath UI Explorer exhibit, the current generated selector uses an anchor (the LABEL with aaname='First Name'), navigates up the DOM tree (<nav up='1' />), and then attempts to identify the target element using only the class and parentclass attributes. Because web forms frequently apply identical validation classes (like ng-untouched, ng-pristine) to both a label's container and the input field itself, the selector becomes overly broad and targets both. To ensure the selector strictly interacts with the text entry field, the developer must check the tag property in the "Unselected Items" pane. This appends tag='INPUT' to the target node of the selector, explicitly filtering out LABEL or DIV elements and reliably targeting the text field. Note that checking id or name would be incorrect for the RPA Challenge, as those values (e.g., choXw) are dynamically generated upon every page refresh.

UiPath Studio Official Documentation, "About Selectors" (Studio Guide). Details how selectors are constructed using XML fragments and how omitting the tag attribute can lead to overly broad identification.

UiPath Studio Official Documentation, "UI Explorer" (Studio Guide). Explains the function of the Property Explorer and Unselected Items panes, specifically outlining how adding the tag attribute forces strict HTML element matching during UI automation.

UiPath Academy, "RPA Developer Foundation", Selectors in Studio Module. Demonstrates the specific "RPA Challenge" use case, explicitly teaching developers to avoid dynamic id and name attributes and instead rely on stable anchors combined with tag='INPUT' to identify target text fields.

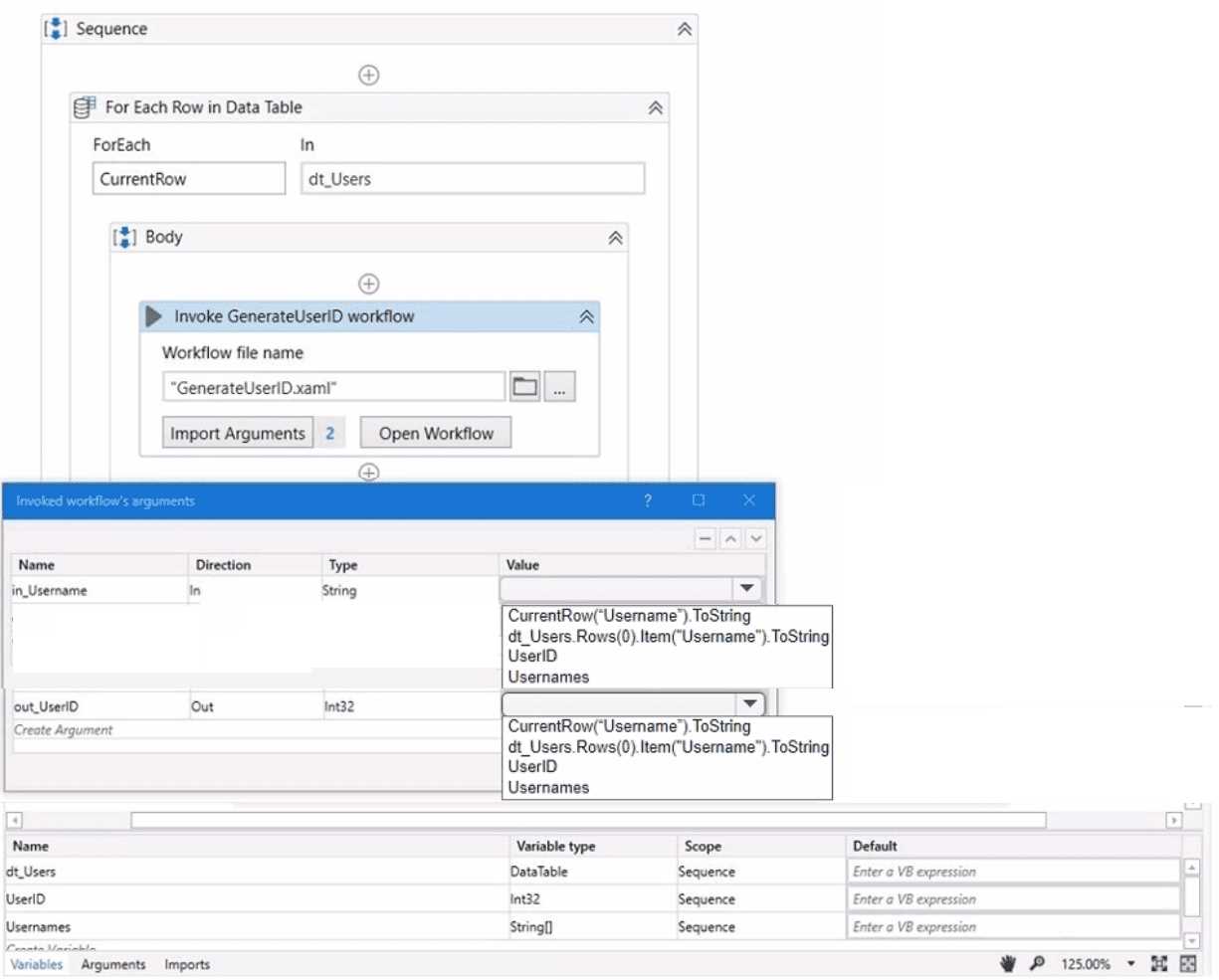

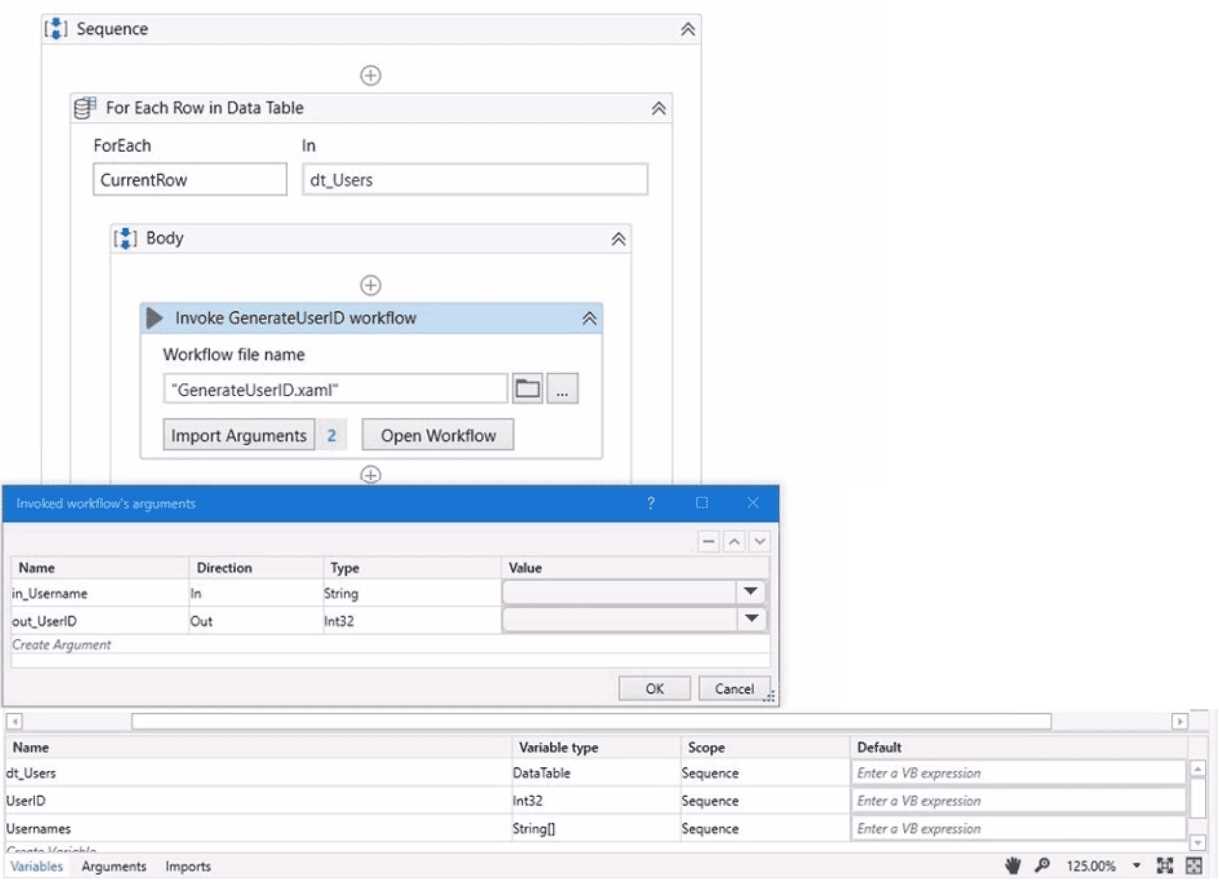

The workflow uses a For Each Row in Data Table activity to iterate through the dt_Users data table, assigning the active row to the CurrentRow variable. To pass the username of the current iteration to the in_Username (In, String) argument, the correct data extraction syntax is CurrentRow("Username").ToString. Using dt_Users.Rows(0)... is incorrect as it would statically pass the first row's data in every loop iteration. For the out_UserID (Out, Int32) argument, the generated ID needs to be stored in a variable within the main workflow's scope. The UserID variable shown in the Variables panel matches the required Int32 data type to catch this output.

UiPath Documentation Portal. "Arguments Panel." UiPath Studio Guide. (Details the binding of variables to In/Out arguments during an Invoke Workflow File execution).

UiPath Documentation Portal. "For Each Row in Data Table." UiPath Activities Guide. (Explains the mechanics of the CurrentRow property and extracting specific column items during iteration).

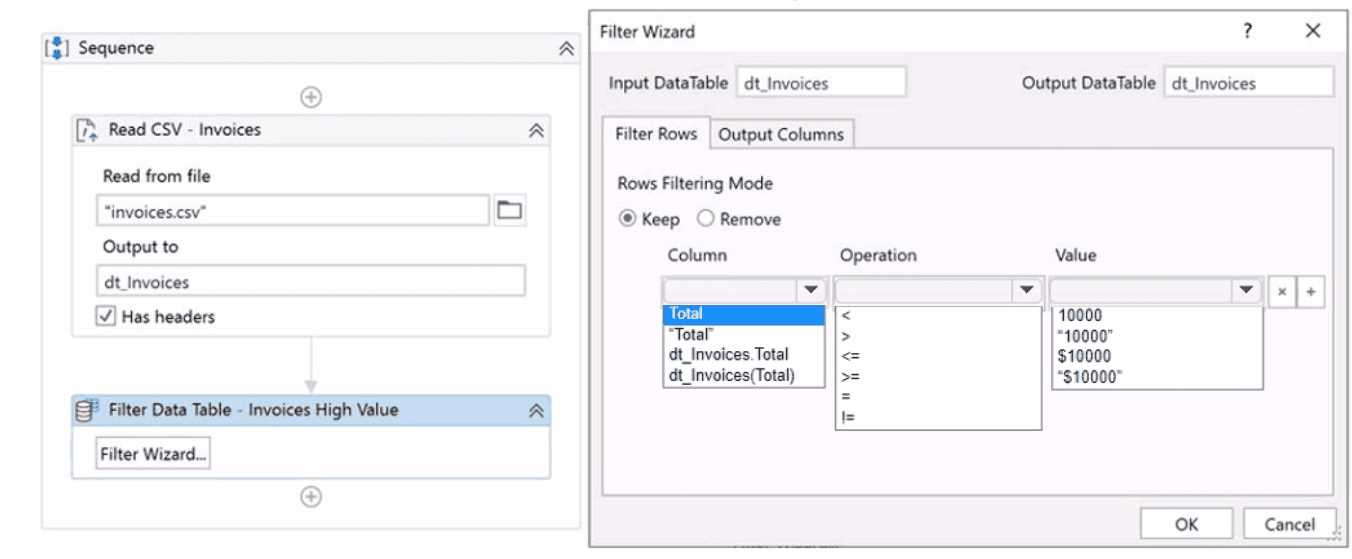

To properly configure the Filter Data Table wizard in UiPath for this scenario:

1. Column: The column name must be provided as a string literal, which requires double quotes ("Total").
2. Operation: The requirement is to keep values "over" a certain amount, which corresponds to the greater-than mathematical operator (>).
3. Value: Because the Total column is specified as a Double data type, the comparison value must be passed as a numeric integer/double. It should not be enclosed in quotes (which would make it a string) or include currency symbols (which would cause a type mismatch or syntax error). Therefore, 10000 is the correct selection.

UiPath Studio Official Documentation: "Filter Data Table" Activity Guide.

Section: Configuring the Filter Wizard -> Column (requires String, Int32, or DataColumn variable; string literals must be quoted).

Section: Value (must match or be comparable to the data type of the target column; numeric types require numeric literals). Available at: https://docs.uipath.com/activities/docs/filter-data-table

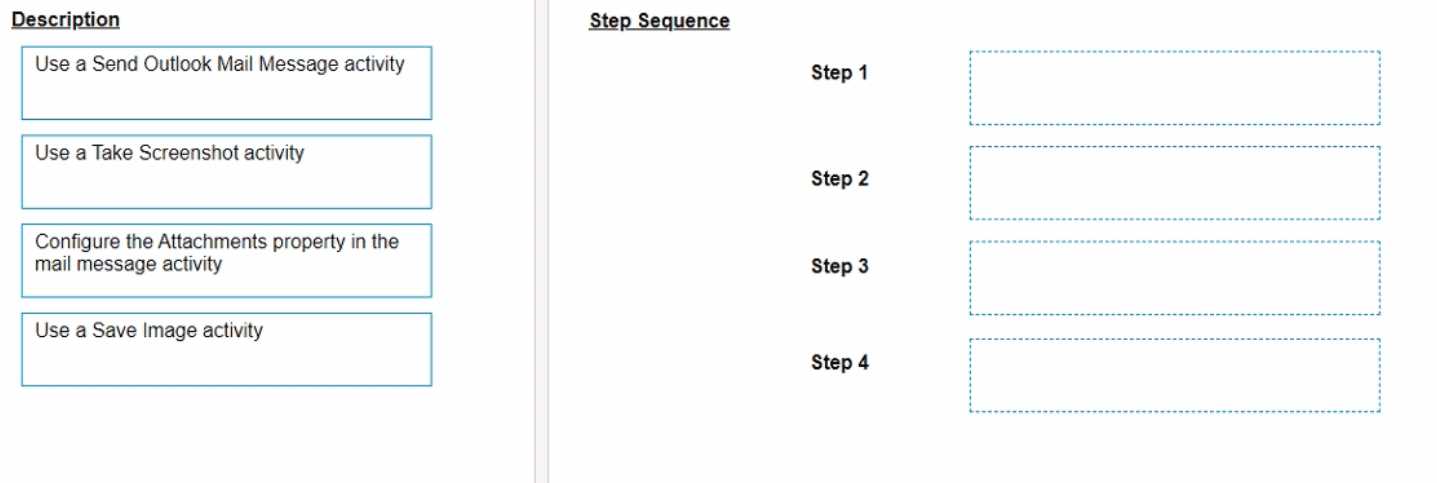

To send a screenshot via email in UiPath, the robot must first capture the screen and save it as a physical file. First, the "Take Screenshot" activity captures the current visual state of the machine and outputs it as an Image variable. Second, the "Save Image" activity writes this Image variable to a specific file path on the local drive (e.g., as a .png file). Third, the "Send Outlook Mail Message" activity is added to the workflow to handle the email transmission. Lastly, the "Attachments" property within the mail activity is configured to point to the saved file path, ensuring the image is securely attached to the outgoing email.

UiPath Activities Guide: "Take Screenshot" (UiPath.UIAutomation.Activities.TakeScreenshot). Official UiPath Documentation Portal, UIAutomation Activities section. This details the generation of the Image output variable.

UiPath Activities Guide: "Save Image" (UiPath.Core.Activities.SaveImage). Official UiPath Documentation Portal, System Activities section. Explains the requirement of saving the Image object to a local disk path for external use.

UiPath Activities Guide: "Send Outlook Mail Message" (UiPath.Mail.Outlook.Activities.SendOutlookMail). Official UiPath Documentation Portal, Mail Activities section. Specifically outlines the "Attachments" property collection used to attach local files to the email object.

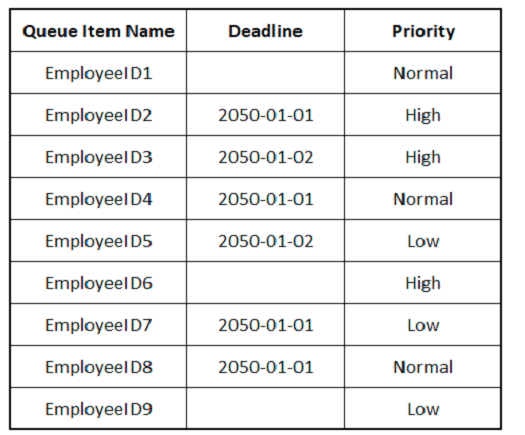

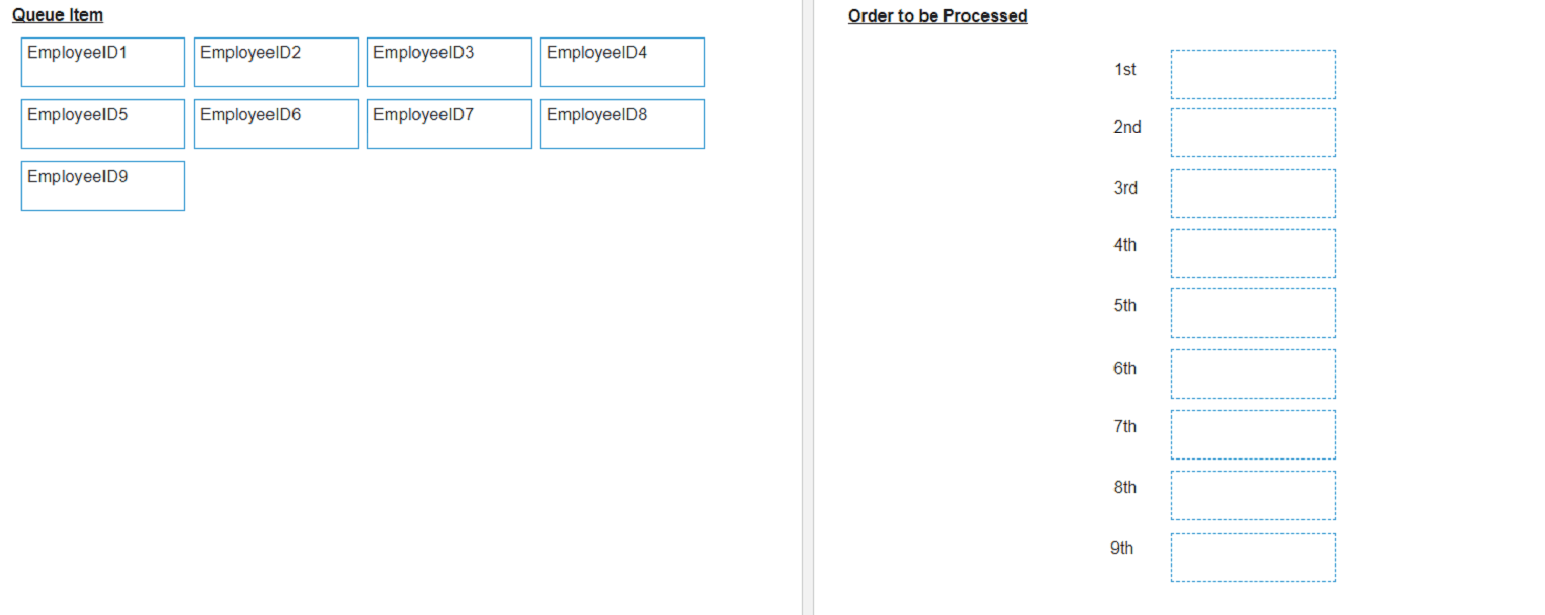

In UiPath Orchestrator, robots process queue items based on a strict hierarchical set of rules. The primary sorting criterion is always Priority (High, then Normal, then Low). Within the exact same priority level, items configured with a Deadline are processed before items without a deadline. For items sharing both the same priority and having deadlines, the one with the earliest deadline is processed first. Finally, if items are tied on priority and deadline (or lack thereof), they are processed based on their enqueue time in a First-In-First-Out (FIFO) manner. Applying this: High items (2, 3, 6) go first, Normal items (4, 8, 1) second, and Low items (7, 5, 9) last, each sorted internally by their respective deadlines and FIFO order.

UiPath Orchestrator Official Documentation: About Queues and Transactions. Section: "Processing Order". This document details the specific evaluation sequence (Priority > Deadline > Postpone > Enqueue Time) used by UiPath Performer workflows to fetch New items from a queue.

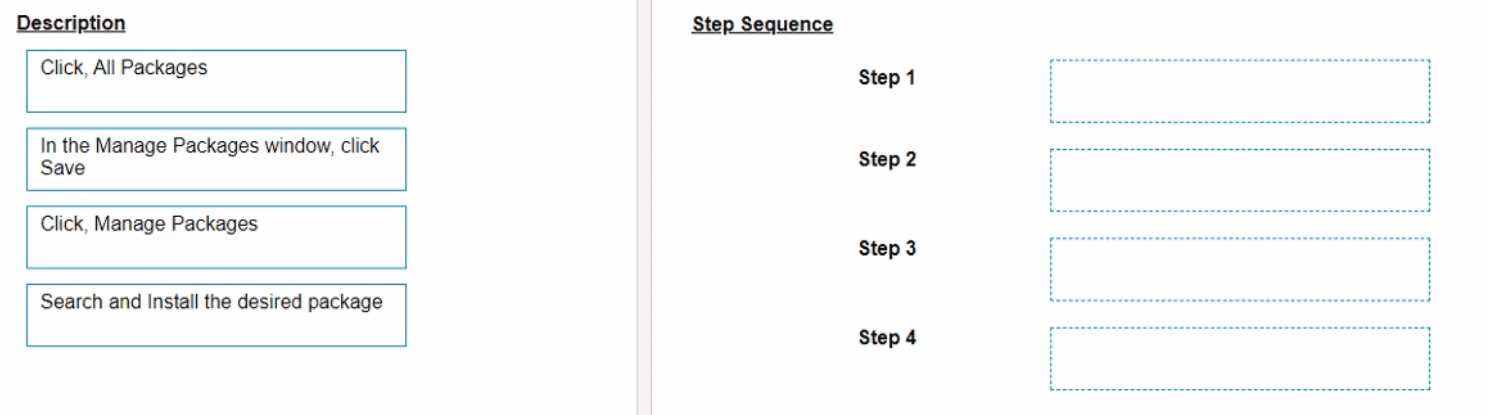

To install a new activities package in UiPath Studio, you must first access the package management interface by clicking "Manage Packages" from the design ribbon. Next, navigate to the feeds by clicking "All Packages" on the left-hand panel to ensure you are searching through all available repositories, not just current project dependencies. Afterward, use the search functionality to locate the desired package and click "Install" on the package details panel. Finally, to commit the installation and update the project's project.json file, you must click "Save" in the Manage Packages window, which will trigger the downloading and installation processes.

UiPath Studio Official Documentation (Version 2021.10): Section: "Managing Activities Packages" -> Subsection: "Installing Packages". This document outlines the exact GUI interaction sequence required to fetch and install new dependencies via the Package Manager interface.
