HPE3-U01 Practice Questions

The question states the computer has a static IP address, meaning its network configuration (IP, mask, gateway, DNS server) is manually set. Therefore, the Dynamic Host Configuration Protocol (DHCP) is not used. To connect to a website by its name, "YouTube.com," the computer must first use the Domain Name System (DNS) protocol to resolve the human-readable domain name into a machine-readable IP address. For a "secure" connection, the browser will then use HTTPS (Hypertext Transfer Protocol Secure) to encrypt the communication with the server.

B. DHCP is not used with a static IP. FTP is for file transfer. HTTP5 is not a standard protocol.

C. DHCP is not used because the computer's network address is statically configured.

D. DHCP is not used with a static IP, and the essential DNS protocol for name resolution is missing.

E. FTP is a file transfer protocol, not used for web browsing. The essential DNS protocol is also missing.

- Mockapetris, P. (1987). RFC 1035: Domain Names - Implementation and Specification. IETF. Section 1 describes the purpose of DNS as mapping domain names to IP addresses.

- Dierks, T., & Rescorla, E. (2008). RFC 5246: The Transport Layer Security (TLS) Protocol Version 1.2. IETF. This document (and its successor, RFC 8446 for TLS 1.3) defines the cryptographic protocol that provides security for HTTPS.

- MIT OpenCourseWare. (2018). 6.033 Computer System Engineering, Spring 2018. Lecture 15: Naming. This lecture explains the hierarchical structure and resolution process of DNS.

The CIDR notation /23 indicates that 23 bits are used for the network portion of the address. An IPv4 address has a total of 32 bits, leaving 9 bits for the host portion (32 - 23 = 9). The total number of addresses in this subnet is 2^9, which equals 512. However, the question asks for "assignable" addresses. In any subnet, two addresses are reserved: the network address (all host bits are 0) and the broadcast address (all host bits are 1). Therefore, the number of assignable addresses is 512 - 2 = 510.

A. 4094 assignable addresses corresponds to a /20 network (2^12 - 2), which has 12 host bits, not 9.

B. 254 assignable addresses corresponds to a /24 network (2^8 - 2), which has 8 host bits, not 9.

D. 512 is the total number of addresses in the /23 subnet, but it includes the non-assignable network and broadcast addresses.

1. Comer, D. E. (2018). Internetworking with TCP/IP Volume 1: Principles, Protocols, and Architecture (6th ed.). Pearson. Chapter 10, Section 10.9 "A Classless Addressing Example", discusses calculating the number of hosts from the prefix length.

2. Fall, K. R., & Stevens, W. R. (2011). TCP/IP Illustrated, Volume 1: The Protocols (2nd ed.). Addison-Wesley Professional. Chapter 2, Section 2.2 "IP Addresses", explains the structure of IP addresses and subnets.

3. Fuller, V., & Li, T. (2006). Classless Inter-domain Routing (CIDR): The Internet Address Assignment and Aggregation Plan. RFC 4632. Section 3.1 "CIDR Properties" explains that a prefix of length /N corresponds to 2^(32-N) individual host addresses.

Collisions occur when two or more devices attempt to transmit on a shared communication medium at the same time. Wi-Fi is inherently a shared medium, as all devices within a Basic Service Set (BSS) share the same radio frequency channel. It uses a protocol called Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) specifically to minimize, but not eliminate, the probability of collisions. In contrast, modern wired connections are typically switched and full-duplex, providing dedicated bandwidth and eliminating collisions entirely.

A. Dark Fiber is a dedicated, point-to-point optical link with no other devices sharing the medium, making collisions impossible.

B. Modern fiber optic networks use switching and full-duplex communication, where data can be sent and received simultaneously, thus preventing collisions.

C. Modern networks using copper cabling employ switches that create dedicated, full-duplex connections between devices, eliminating the collision domains found in older hub-based networks.

- Kurose, J. F., & Ross, K. W. (2021). Computer Networking: A Top-Down Approach (8th ed.). Pearson. In Chapter 7, Section 7.2, the text explains that Wi-Fi is a broadcast channel and details the use of CSMA/CA to deal with the multiple access problem and avoid collisions.

- Tanenbaum, A. S., & Wetherall, D. J. (2011). Computer Networks (5th ed.). Prentice Hall. Chapter 4, Section 4.2.2, describes collision-free protocols and contrasts them with contention-based systems like classic Ethernet and Wi-Fi, where collisions are a fundamental issue to be managed.

An IPv4 (Internet Protocol version 4) address is a numerical label assigned to each device participating in a computer network that uses the Internet Protocol for communication. The defining characteristic of an IPv4 address is its length: it is a 32-bit number. This 32-bit address space allows for 2^32 (approximately 4.3 billion) unique addresses. The address is typically represented in human-readable dot-decimal notation (e.g., 192.168.1.1).

B. 128 bits is the length of an IPv6 address, the successor to IPv4, designed to overcome IPv4 address exhaustion.

C. 12 hex-digit notation is commonly used to represent a 48-bit MAC (Media Access Control) address, not an IPv4 address.

D. The zero compression rule, which allows consecutive fields of zeros to be abbreviated with a double colon (::), is a feature of IPv6 addressing.

1. Postel, J. (1981). Internet Protocol. RFC 791. Section 3.2 "Addressing" states, "A 32-bit address is used as a source and destination address."

2. Deering, S., & Hinden, R. (2017). Internet Protocol, Version 6 (IPv6) Specification. RFC 8200. Section 3 "IPv6 Header Format" specifies the 128-bit source and destination addresses.

3. MIT OpenCourseWare. (2018). 6.033 Computer System Engineering, Spring 2018. Lecture 13: The Network Layer. This lecture material details the 32-bit structure of IPv4 addresses.

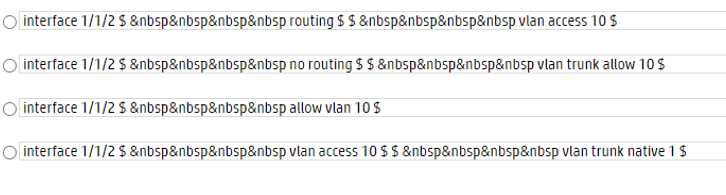

For two PCs in the same VLAN on different switches to communicate, the VLAN must be extended between the switches using a trunk link. A trunk port can carry traffic for multiple VLANs simultaneously. The configuration in Option A sets the inter-switch link (interface 1/1/24) to allow tagged traffic for VLAN 10 (vlan trunk allowed 10). It also maintains the default native VLAN 1 (vlan trunk native 1) for untagged traffic. This correctly establishes a trunk that passes VLAN 10 traffic, connecting the broadcast domain across both switches and enabling communication between PC-1 and PC-2.

B. This configures the port as an access port in VLAN 10, which cannot form a trunk to carry tagged traffic between switches.

C. This configures a trunk that only allows VLAN 1 traffic. Traffic for VLAN 10 would be dropped, preventing communication.

D. This configuration would also work, but it makes VLAN 10 the native (untagged) VLAN, which is a less standard practice than tagging user data VLANs.

1. Aruba. (2022). ArubaOS-CX 10.10 VLAN Configuration Guide. Chapter: "Trunking," Section: "Configuring a trunk interface." This guide details the use of vlan trunk allowed and vlan trunk native commands to configure inter-switch links.

2. Aruba. (2021). Aruba Certified Network Technician (ACNT) Study Guide. Module 3: VLANs. This section explains the concepts of VLANs and the requirement for 802.1Q trunking to extend VLANs between switches.

HP/HPE switches use specific commands to save configurations. "write memory" is the standard command that copies the running configuration to startup configuration, ensuring changes persist after reboot. "copy running-config checkpoint backup" creates a checkpoint backup of the current configuration, which also survives reboots. These commands effectively save the active configuration to non-volatile storage.

B. "store memory" is not a valid HP/HPE switch command for saving configurations.

D. "checkpoint startup-config" is incorrect syntax; checkpoints use names, not "startup-config".

E. "save memory" is not a recognized command in HP/HPE switch CLI.

1. HPE ArubaOS-Switch Management and Configuration Guide (16.10), Chapter 2: "Basic Configuration", pp. 45-48

2. HPE Switch Software Management and Configuration Guide for WB.16.10, "Saving Configuration Files", Section 3.2

3. HPE ProCurve/Aruba Command Reference Guide, "Configuration Management Commands", pp. 112-115

An omnidirectional antenna is designed to radiate radio frequency (RF) power uniformly in a 360-degree pattern, but only in one plane. This plane is the horizontal or azimuth plane. In the vertical or elevation plane, the radiation pattern is concentrated, creating a shape often described as a donut or toroid. This results in weaker signal strength directly above and below the antenna. This characteristic makes them ideal for providing coverage to devices spread out over a flat area, such as an office floor.

A. The elevation plane is the vertical plane, where an omnidirectional antenna's radiation is concentrated and not equal in all directions.

B. The vertical plane is the elevation plane. Power is not radiated equally in this plane; it has nulls above and below the antenna.

C. This describes a directional antenna, which focuses its power in a specific direction rather than radiating it equally in a plane.

1. Aruba Networks, an HPE Company. (2020). Antennas and Accessories Guide. Page 5, "Antenna Characteristics". "Omnidirectional antennas provide 360-degrees of coverage in the azimuth (horizontal) plane."

2. Kurose, J. F., & Ross, K. W. (2021). Computer Networking: A Top-Down Approach (8th ed.). Pearson. Chapter 6, Section 6.3.2, discusses antenna patterns, explaining that omnidirectional antennas radiate in all directions in one plane.

3. MIT OpenCourseWare. (2011). 6.002 Circuits and Electronics, Spring 2007. Lecture 22 - Antennas. The lecture notes explain that an ideal dipole antenna (a type of omnidirectional antenna) has a toroidal (donut-shaped) radiation pattern, which is uniform in the azimuth plane.

To enable a device on a local network to access the internet, a default route must be configured. This route directs all traffic for which the switch does not have a more specific route to a next-hop gateway, which in this case is the ISP router. The command ip route 0.0.0.0/0 172.16.31.254 configures a static default route. The 0.0.0.0/0 prefix represents any destination network, and 172.16.31.254 is the IP address of the ISP router that will forward the traffic to the internet. This is the standard syntax for modern network operating systems like ArubaOS-CX.

A. This option uses incorrect command syntax and parameter order for an Aruba switch.

C. The routing command is not used for this purpose, and a subnet mask should not be applied to the next-hop gateway address.

D. The ip routing command is used to enable the routing function globally on the switch, not to configure a specific static route.

1. Aruba. (2021). ArubaOS-CX 10.07 Fundamentals Guide. Chapter: "Static Routing," Page 2. The guide specifies the command syntax for configuring static routes as ip route . For a default route, DEST-PREFIX is 0.0.0.0/0.

2. Aruba. (2021). Aruba Certified Network Technician (ACNT) Study Guide. Module 4: IP Routing. This section details the configuration of static and default routes on Aruba switches.

The Wi-Fi Alliance is an industry association focused on ensuring the interoperability of wireless networking products from different manufacturers. It achieves this through its "Wi-Fi CERTIFIED™" program, which tests and certifies that equipment complies with specific IEEE 802.11 standards and works seamlessly with other certified products. While the IEEE creates the base standards, the Wi-Fi Alliance creates the certification programs that vendors use to guarantee their products will work together, which is crucial for a healthy and reliable WLAN ecosystem.

A. The Institute of Electrical and Electronics Engineers (IEEE) is a standards body that creates and maintains the 802.11 technical standards, but it does not certify products.

B. The Federal Communications Commission (FCC) is a US government agency that regulates radio spectrum usage to prevent interference; it does not test for interoperability.

D. The Internet Engineering Task Force (IETF) develops and promotes Internet standards (RFCs), primarily for protocols at the Internet and Transport layers, not WLAN hardware.

- Wi-Fi Alliance. (n.d.). About Us. Retrieved from https://www.wi-fi.org/about-us. The site states, "Our Wi-Fi CERTIFIED™ program is a globally recognized seal of approval for products that meet industry-agreed standards for interoperability, security, and a range of application-specific protocols."

- HPE Aruba Networking. (2022). WPA3: The Next Generation of Wi-Fi Security [White Paper]. Page 2. Official vendor documents often clarify the distinct roles of the IEEE (standards creation) and the Wi-Fi Alliance (interoperability certification).

- Coleman, D. D., & Westcott, D. A. (2021). CWNA Certified Wireless Network Administrator Study Guide (6th ed.). Wiley. Chapter 2, "Radio Frequency (RF) Fundamentals," explains the roles of various WLAN organizations, highlighting the Wi-Fi Alliance's focus on interoperability.

In the Aruba Central WLAN configuration wizard, the "Access" section is where administrators define rules for client access after successful authentication. This includes setting up Role-Based Access Control (RBAC), where different roles can be assigned to users, granting them specific network permissions, bandwidth contracts, or VLAN assignments. This step follows the General, VLANs, and Security configurations and is the final stage for defining what authenticated users are permitted to do on the network.

B. VLANs: This section is for assigning a primary VLAN to the SSID or configuring dynamic VLAN assignments, not for defining the access roles themselves.

C. Security: This section focuses on authentication and encryption methods (e.g., WPA3, 802.1X), which occur before a role is assigned to a client.

D. General: This section covers basic SSID settings like the network name, radio bands, and broadcasting options, not granular access control policies.

1. Aruba Central User Guide. In the section for configuring a wireless network (SSID), the workflow is presented as a series of tabs: General, VLANs, Security, and Access. The "Access" tab is explicitly shown as the location for configuring "Access Rules" and "Roles". (Refer to the "Configuring a Wireless Network for IAPs" or similar sections in recent versions of the guide).
