INTEGRATED-PHYSICAL-SCIENCES Practice Questions

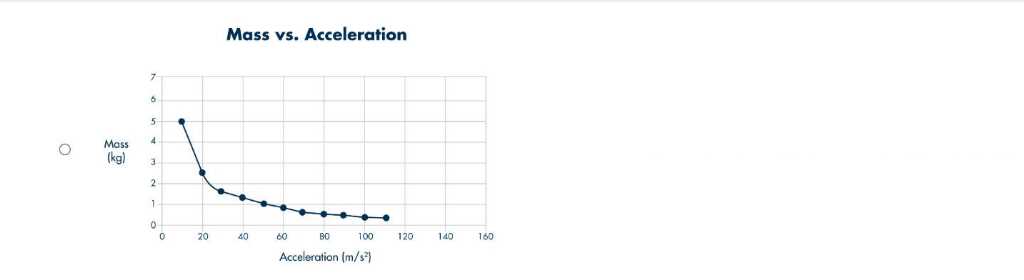

According to Newton's Second Law of Motion, the relationship between net force (F_{net}), mass (m), and acceleration (a) is expressed as F_{net} = m \cdot a$. When the net force is kept constant, the relationship between mass and acceleration is inversely proportional, expressed mathematically as m = \frac{F_{net}}{a}. This means that as mass increases, acceleration must decrease to maintain the same net force, and conversely, a smaller mass results in a larger acceleration. Graph D is the only graph that correctly illustrates this inverse relationship (a hyperbola), where the mass variable decreases as the acceleration variable increases.

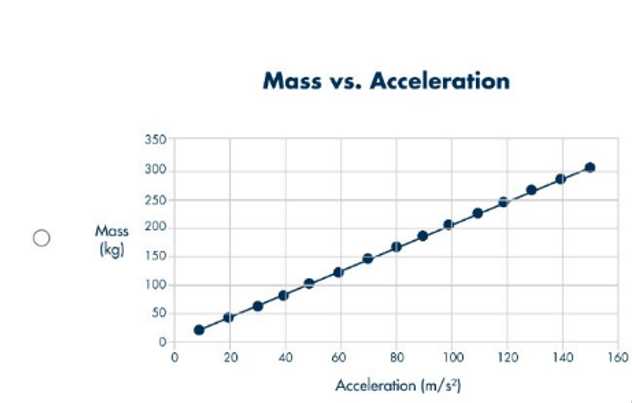

Option A: This graph shows a direct linear relationship ($m \propto a$), incorrectly implying that acceleration increases as mass increases under a constant force.

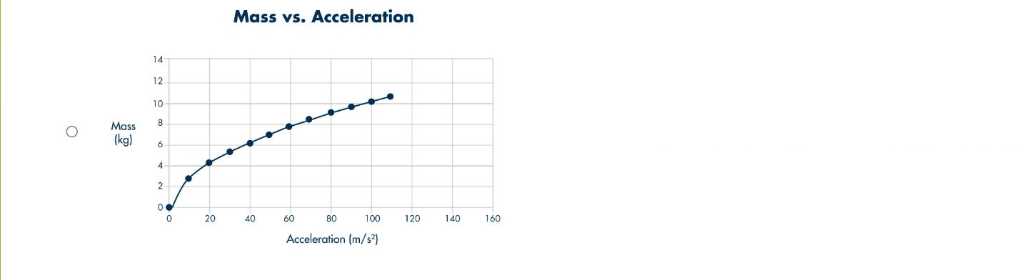

Option B: This graph depicts an increasing non-linear relationship, which contradicts the inverse proportionality required by Newton's Second Law for a constant force.

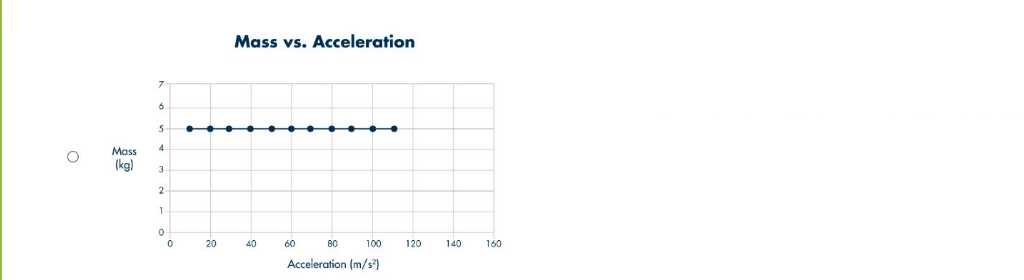

Option C: This graph shows mass remaining constant regardless of acceleration, which fails to represent the relationship between different masses and their resulting accelerations.

OpenStax College Physics, Chapter 4: Dynamics: Force and Newton's Laws of Motion, Section 4.3: "Newton’s Second Law of Motion: Concept of a System." (Rice University). Available at: https://openstax.org/books/college-physics/pages/4-3-newtons-second-law-of-motion

Urone, P. P., & Hinrichs, R. (2012). College Physics. OpenStax. Section 4.3, Equation 4.5.

Nave, C. R. "Newton's Second Law." HyperPhysics, Georgia State University, Department of Physics and Astronomy. Available at: http://hyperphysics.phy-astr.gsu.edu/hbase/newt.html

MIT OpenCourseWare, 8.01SC Classical Mechanics, "Newton's Laws of Motion." Massachusetts Institute of Technology.

The analysis is based on the Law of Superposition, which states that in an undisturbed sequence of rock layers, the oldest layers are at the bottom and the youngest are at the top. The bottom layer is basalt, an igneous rock formed from cooled lava, indicating a volcanic eruption was the earliest event. The layers above it are sandstone, shale, and limestone, which are all sedimentary rocks. The sequence from sandstone to shale to limestone typically represents a transition to a deeper, more stable marine (underwater) environment. Limestone, in particular, is predominantly formed from the remains of marine organisms, confirming the area was submerged after the volcanic activity.

A. This reverses the order of events. The basalt (lava flow) is at the bottom, meaning it occurred before the sedimentary layers were deposited.

B. The layers shown are igneous and sedimentary, not metamorphic. Significant heat and pressure would have created metamorphic rocks like marble or slate.

D. This also reverses the order of events. The volcanic eruption (basalt) is the oldest layer, preceding the deposition of water-formed sediments.

1. OpenStax College. (2024). Physical Geology (2nd ed.). Chapter 8.1, "Principles of Relative Dating." This chapter explains the Law of Superposition as a fundamental principle for interpreting the order of geologic events.

2. U.S. Geological Survey (USGS). (n.d.). Igneous Rocks. In Geology, Geophysics, and Geochemistry Science Center. This official documentation describes basalt as a volcanic rock formed from the rapid cooling of lava at or near the Earth's surface.

3. Lutgens, F. K., & Tarbuck, E. J. (2017). Essentials of Geology (12th ed.). Pearson. Chapter 7, "Sedimentary Rocks," pp. 214-218. This university textbook details the depositional environments for sedimentary rocks, identifying sandstone with various settings and shale and limestone with quiet, typically marine (underwater), environments.

4. MIT OpenCourseWare. (2013). Lecture 5: Igneous Rocks. 12.001 Introduction to Geology. This lecture material from a reputable university courseware explains that extrusive igneous rocks like basalt form from volcanic eruptions on the surface.

An observational study involves collecting data by observing phenomena in their natural setting without manipulating any variables. The question, "What types of rocks are found at a convergent boundary?" is best answered through such a study. A geologist would travel to a convergent boundary to observe, identify, and collect rock samples that have formed naturally. This method does not involve altering or controlling the geological processes. The other options propose questions that require controlled experiments where a variable is intentionally manipulated to observe its effect on another variable.

A: This requires an experiment where the variable (salt concentration) is manipulated to measure its effect on the rate of evaporation.

B: This requires an experiment where the variable (mass) is systematically changed to measure its effect on the gravitational field.

C: This requires an experiment where different materials (types of metal) are tested under controlled conditions to compare their conductivity.

---

1. University of California Museum of Paleontology. (n.d.). Designing tests for your ideas. Understanding Science. Retrieved from https://undsci.berkeley.edu/article/000/howscienceworks07. This resource explains that scientists can test their ideas through both experiments and observational studies, noting that for many large-scale systems (like stars or geological formations), "the key to testing the hypothesis is to find a situation in which the relevant variables have occurred naturally." This directly applies to observing rock types at a plate boundary.

2. Johnson, C., Affolter, M. D., Inkenbrandt, P., & Mosher, C. (2017). An Introduction to Geology. OpenGeology. Salt Lake Community College. In Chapter 1, "The Scientific Method," the text describes how geologists use observation as a primary method for data collection. It states, "A geologist may make an observation in the field..." This aligns with the process of identifying rock types at a specific geological feature like a convergent boundary.

3. DiCenso, D. (2019). Observational Studies and Experiments. In Statistics Using Technology (3rd ed.). Section 1.4. This open-source textbook from a university press distinguishes between the two study types: "In an observational study, the researcher collects data without performing any experiments or applying any treatments... In an experiment, the researcher applies a treatment to the subjects and then observes the effects of the treatment." This definition classifies options A, B, and C as experiments and D as an observational study.

A scientific law is a statement that describes an observed, consistent pattern in nature, supported by extensive empirical evidence. The statement provided is a description of Newton's Third Law of Motion. It describes what happens when two objects interact—they exert equal and opposite forces on each other. It is a fundamental principle that has been repeatedly verified through experimentation. It does not, however, explain the underlying mechanism or why this relationship exists, which would be the role of a scientific theory.

A. Theory: A theory is a well-substantiated explanation for why phenomena occur, not just a description of a consistent pattern.

B. Hypothesis: A hypothesis is a tentative, testable proposal for an observation, whereas this principle is a well-established and confirmed relationship.

D. Inference: An inference is a logical conclusion drawn from specific evidence, not a universally applicable, descriptive principle of nature.

---

1. OpenStax, University Physics Volume 1. (2021). Chapter 1, Section 1.2: The Nature of Science and Physics. "A law uses concise language to describe a generalized pattern in nature that is supported by scientific evidence and repeated experiments... A theory is an explanation for patterns in nature that is supported by scientific evidence and verified multiple times by various groups of researchers."

2. University of California, Berkeley. Understanding Science. "Laws are descriptions — often mathematical — of natural phenomena; for example, Newton's Law of Gravity or the Law of Conservation of Momentum. They don't explain why the phenomenon exists or what causes it." Retrieved from https://undsci.berkeley.edu/article/000/howscienceworks19

3. Hall, N. (Ed.). (2021, May 13). Newton's Laws of Motion. NASA Glenn Research Center. This official resource explicitly identifies the principle of equal and opposite forces as "Newton's Third Law of Motion." Retrieved from https://www1.grc.nasa.gov/beginners-guide-to-aeronautics/newtons-laws-of-motion/

Jupiter is the most massive planet in our solar system, possessing more than twice the mass of all other planets combined. This immense mass creates a powerful gravitational field that acts as a protective barrier for Earth. It perturbs the orbits of comets and asteroids, often ejecting them from the solar system or capturing them into its own orbit. This phenomenon, sometimes called the "gravitational shield" effect, significantly reduces the number of potential impactors reaching the inner solar system. The collision of Comet Shoemaker-Levy 9 with Jupiter in 1994 provided a dramatic example of this protective role in action.

A. Saturn: While massive, Saturn's gravitational influence is only about one-third that of Jupiter, making its protective role far less significant.

B. Neptune: Neptune's great distance from the inner solar system and smaller mass compared to Jupiter limit its ability to directly shield Earth.

D. Uranus: Like Neptune, Uranus is too distant and not massive enough to have the primary protective effect on Earth that Jupiter does.

1. NASA Solar System Exploration. (n.d.). Jupiter: In Depth. NASA Science. Retrieved from https://solarsystem.nasa.gov/planets/jupiter/in-depth/. In the "Cosmic 'Vacuum Cleaner'" section, it states, "Jupiter's great mass and location...have caused it to be called the solar system's vacuum cleaner because it sucks in and absorbs or flings out comets, asteroids and meteoroids."

2. Fraknoi, A., Morrison, D., & Wolff, S. C. (2016). Astronomy. OpenStax. Chapter 13.3, "Comets and Asteroids: Debris of the Solar System." The text explains how Jupiter's gravity profoundly influences the orbits of smaller bodies, controlling the asteroid belt and deflecting long-period comets.

3. Horner, J., & Jones, B. W. (2008). Jupiter and the Bombardment of the Inner Solar System. International Journal of Astrobiology, 7(3-4), 251-261. The abstract and conclusions (Section 5) state that Jupiter's presence significantly reduces the flux of cometary impactors on Earth, acting as a shield. https://doi.org/10.1017/S147355040800423X

Sound waves are mechanical waves, meaning they require a medium to propagate by causing vibrations in the medium's particles. The speed of sound is determined by the medium's elastic properties (bulk modulus) and density. Water is significantly denser and less compressible than air. This allows vibrational energy to be transferred more efficiently and rapidly between molecules, causing sound to travel much faster in water (approximately 1,500 m/s) than in air (approximately 343 m/s). In contrast, electromagnetic waves (visible light, radio, gamma) travel fastest in a vacuum and are slowed down when passing through denser media like water.

A. Visible light waves: These are electromagnetic waves that travel slower in water (a denser optical medium) than in air due to a higher refractive index.

C. Radio waves: As a form of electromagnetic radiation, radio waves travel slower in the denser medium of water compared to air.

D. Gamma waves: These are high-energy electromagnetic waves that also travel slower in water than in air.

1. OpenStax. (2018). College Physics. Rice University. Chapter 17.2, "Speed of Sound, Frequency, and Wavelength." The text states, "In general, sound travels fastest in solids, faster in liquids, and slowest in gases." A table in this section lists the speed of sound in air (at 20°C) as 343 m/s and in seawater as 1540 m/s.

2. MIT OpenCourseWare. (2016). 8.03SC Physics III: Vibrations and Waves. Fall 2016. Lecture Notes, Chapter 10: "Electromagnetic Waves," Section 10.4, "EM waves in a dielectric medium." This section explains that the speed of an electromagnetic wave in a medium is v = c/n, where 'n' is the index of refraction. Since the refractive index of water (~1.33) is greater than that of air (~1.0003), the speed of light and other EM waves is slower in water.

3. Nave, R. (n.d.). Speed of Sound in Various Media. HyperPhysics, Georgia State University. This resource provides a comparative table showing the speed of sound is significantly higher in liquids (e.g., water at 1482 m/s) and solids than in gases (e.g., air at 343 m/s).

The core principle of the scientific method at issue is reproducibility. When experimental results deviate significantly from established findings, the first and most crucial step is to verify the result. Repeating the experiment allows the scientist to check for potential systematic errors (e.g., miscalibrated equipment) or random errors (e.g., procedural mistakes) that may have occurred during the initial trial. This process ensures the anomalous data is a genuine, repeatable observation before any further conclusions, such as challenging previous work, are made. This adherence to rigorous verification upholds the integrity of the scientific process.

A. This is selective data reporting, or "cherry-picking," which is a form of scientific misconduct that biases the outcome.

B. Publishing without first verifying the anomalous result through repetition is premature and scientifically irresponsible.

D. Discarding valid data and falsifying a report to match expectations constitutes scientific fraud.

---

1. National Academies of Sciences, Engineering, and Medicine. (2009). On Being a Scientist: A Guide to Responsible Conduct in Research (3rd ed.). The National Academies Press. In the section "The Treatment of Data," it is explained that unexpected or anomalous results require careful consideration and often further investigation, such as repeating the experiment, to determine their cause (p. 17). https://doi.org/10.17226/12192

2. University of North Carolina at Chapel Hill, Department of Physics and Astronomy. (2018). Lab Manual - Physics 118: Introductory Calculus-based Mechanics and Relativity. In the section "A.2: Types of Experimental Errors," the manual discusses systematic errors, which can cause results to be consistently high or low. The primary method for identifying and correcting such errors is to "recalibrate equipment" and "repeat the experiment," reinforcing the need for verification (p. 10).

3. Lax, P. D., & Strang, G. (Eds.). (2016). The Scientific Method. In The Calculus of Friendship: What a Teacher and a Student Learned about Life while Corresponding about Math. Princeton University Press. The text emphasizes that a key component of the scientific method is that an experiment must be reproducible. If a result cannot be reproduced, it is not considered a valid scientific finding (Chapter 1, "The Scientific Method," para. 4).

Comets are often described as "dirty snowballs," composed of a nucleus of ice (water, carbon dioxide, etc.), dust, and rock. As a comet's orbit brings it closer to the Sun, the intense solar radiation heats the nucleus. This heating causes the ices to sublimate—transforming directly from a solid to a gas. This process, known as outgassing, releases large amounts of gas and trapped dust particles into space. The solar wind and radiation pressure then sweep this material away from the nucleus, forming the characteristic coma (the glowing head) and one or more tails that always point away from the Sun.

B. The tail is formed by material leaving the comet's own nucleus, not by an increased frequency of impacts from external debris.

C. Combustion is a chemical reaction requiring an oxidizer, which is not available in the vacuum of space. The glow is from fluorescence and reflected sunlight.

D. While a comet's velocity increases as it nears the Sun, the speed itself does not create the tail; the Sun's energy is the direct cause.

1. NASA Science, Solar System Exploration. (n.d.). Comets: In Depth. NASA. Retrieved from https://solarsystem.nasa.gov/asteroids-comets-and-meteors/comets/in-depth/. In the "Anatomy" section, it states, "The solid nucleus or core of a comet consists mostly of ice and dust... As comets get closer to the Sun, the ice on the surface of the nucleus begins turning into a gas, forming a cloud known as the coma... Pressure from sunlight and high-speed solar particles (solar wind) can blow the dust and gas from the coma away from the Sun, forming a long, bright tail."

2. Fraknoi, A., Morrison, D., & Wolff, S. C. (2016). Astronomy. OpenStax, Rice University. Section 13.2, "The 'Long-Haired' Comets." This textbook explains, "As the comet absorbs ultraviolet light, chemical processes release hydrogen gas... The sunlight also pushes the dust particles away from the nucleus... The two tails—one made of gas and one of dust—point away from the Sun." (p. 446).

3. Department of Earth, Atmospheric and Planetary Sciences, MIT. (n.d.). 12.400x The Habitable Planet, Unit 2: Earth's Origin and the Solar System, Section 5: Small Bodies. MIT OpenCourseWare. This course material describes comets as icy bodies that "develop a coma and a tail of gas and dust when they travel into the inner solar system where the Sun's heat is strong enough to vaporize their surface ices."

V-shaped valleys are formed by fluvial erosion, where fast-flowing rivers or streams in their upper course cut vertically into the landscape. This process, known as downcutting, carves a deep, narrow channel. Simultaneously, weathering and mass wasting processes (like soil creep and landslides) cause the steep valley walls to collapse and move downslope toward the river channel. The combination of vertical erosion by the water and the slumping of the valley sides results in the characteristic V-shaped cross-section. This landform is typically found in mountainous or upland areas where river gradients are steep.

B. Erosion caused by ocean waves: This process erodes coastlines, creating features such as sea cliffs, wave-cut platforms, and sea stacks, not inland V-shaped valleys.

C. Erosion caused by ground water: Groundwater erosion primarily occurs underground through chemical dissolution, forming features like caves, caverns, and sinkholes (karst topography).

D. Erosion caused by wind: Wind (aeolian) erosion is most significant in arid environments, sculpting features like sand dunes, yardangs, and desert pavement, but it does not carve deep valleys.

1. Earle, S. (2019). Physical Geology (2nd ed.). BCcampus. Chapter 13.2, "Stream Erosion and Deposition." Retrieved from https://opentextbc.ca/physicalgeology2ed/chapter/13-2-stream-erosion-and-deposition/. The text states, "Streams carve their own valleys... In the steep, upper course of a stream, the valley is typically a V-shape."

2. Johnson, C., Affolter, M. D., Inkenbrandt, P., & Mosher, C. (2017). An Introduction to Geology. Salt Lake Community College. Chapter 11.2.1, "Erosional and Depositional Landforms." Retrieved from https://opengeology.org/textbook/11-streams-floods/. This source explains, "Stream erosion will cut a V-shaped valley... The V-shape is created by the stream undercutting the valley walls, which causes mass wasting of the slopes."

3. U.S. Geological Survey (USGS). (n.d.). Geologic Formations. "Valleys." The USGS explains that river erosion is the primary force in carving valleys, with the shape (such as a V-shape) being determined by the erosional agent and the rock type. V-shapes are explicitly linked to river erosion in young, steep landscapes.

A low-pressure system, also known as a cyclone, is an area where the atmospheric pressure is lower than that of the surrounding area. This pressure difference causes air at the surface to converge and rise. As the air rises, it expands and cools due to a process called adiabatic cooling. This cooling increases the relative humidity, causing water vapor to condense into clouds. This process frequently leads to precipitation, such as rain or snow. Therefore, the most appropriate preparation for an incoming low-pressure system is for cloudy and rainy weather.

A. While humidity can be high in a low-pressure system, the defining characteristic is cloud formation and precipitation, not necessarily very hot weather.

B. Cold, sunny weather is characteristic of a high-pressure system (anticyclone), where sinking air inhibits cloud formation, leading to clear skies.

C. Hot, sunny weather is also associated with high-pressure systems, which typically bring stable atmospheric conditions and clear skies.

1. University of Illinois at Urbana-Champaign, Department of Atmospheric Sciences. (n.d.). Weather World 2010 Project: Pressure Systems and Weather. Retrieved from http://ww2010.atmos.uiuc.edu/(Gh)/guides/mtr/prs/hgl.rxml. In the section "Low Pressure," it states, "As the air rises, it cools, and the water vapor in the air mass condenses to form clouds and precipitation."

2. National Oceanic and Atmospheric Administration (NOAA), National Weather Service. (n.d.). JetStream - Online School for Weather: The Highs and Lows of Air Pressure. Retrieved from https://www.weather.gov/jetstream/pressure. In the section "Low Pressure," it explains, "The upward motion of the air results in clouds and precipitation."

3. Ritter, M. E. (2006). The Physical Environment: An Introduction to Physical Geography. Chapter 6: Atmospheric Pressure and Wind. In the section "Pressure and Weather," it is detailed that the surface convergence and lifting of air in low-pressure systems are responsible for the formation of clouds and precipitation. (Available through various university geography course materials, e.g., University of Wisconsin-Stevens Point).
