MULESOFT-INTEGRATION-ARCHITECT-I Practice Questions

Customer Relationship Management (CRM) systems are enterprise software platforms specifically designed to manage and analyze customer interactions and data throughout the customer lifecycle. Their core capabilities include sales force automation, which involves tracking prospect data, managing sales pipelines, and identifying sales opportunities. By centralizing customer information, CRMs provide a 360-degree view that is crucial for identifying and executing cross-selling and up-selling strategies. Therefore, a CRM is the appropriate category of software to meet the organization's stated needs.

A. Supply Chain Management (SCM): Manages the flow of goods, data, and finances related to a product from procurement of raw materials to delivery.

B. IT Service Management (ITSM): Focuses on the design, delivery, management, and improvement of IT services offered to an organization.

C. Business-to-Business (B2B): A business model describing transactions between companies, not a category of enterprise software with the specified capabilities.

1. MuleSoft Documentation, "Salesforce Connector". The documentation for connecting to Salesforce (a leading CRM) highlights its role in managing core business objects like "Leads, Accounts, Contacts, and Opportunities," which are central to tracking prospects and sales. (docs.mulesoft.com/salesforce-connector/10.18/)

2. Salesforce Official Documentation, "What is CRM?". This official vendor documentation defines CRM as "a technology for managing all your company’s relationships and interactions with customers and potential customers... It can help with profitability, but also with customer service and retention." (www.salesforce.com/crm/what-is-crm/)

The scenario describes scaling out a stateless application from 2 to 4 nodes behind a round-robin load balancer. Doubling the number of nodes doubles the overall processing capacity. With a round-robin distribution policy and a constant total number of incoming requests, the load is spread evenly across all available nodes. Therefore, each of the four nodes will now receive half the number of requests it was receiving when there were only two nodes. This is a direct and guaranteed consequence of the change in infrastructure and load balancing configuration.

A. A reduction in response time is not guaranteed. It depends on external factors like backend system performance, which are not affected by adding more Mule nodes.

B. An increase in throughput is not guaranteed. The system's throughput might be limited by bottlenecks in other components, such as a downstream database or API.

C. JVM heap memory consumption is related to the complexity and memory footprint of processing a single request, not the number of nodes in the cluster.

1. MuleSoft Documentation, "Mule Runtime Clustering". The documentation explains that a key benefit of clustering is horizontal scalability, which involves distributing the processing load across multiple nodes to handle more concurrent requests.

2. Tanenbaum, A. S., & Van Steen, M. (2017). Distributed Systems: Principles and Paradigms. See chapters on Scalability, which discuss how adding resources (nodes) can improve performance metrics, and how load balancing distributes work. The principle of load distribution directly supports this answer.

The scenario requires ensuring data consistency across three different transactional resources: a JMS queue and two separate RDBMS instances. This is a classic use case for a distributed transaction. An XA (eXtended Architecture) transaction coordinates multiple resources in a single, atomic unit of work. By wrapping the JMS read and both database inserts within the same XA transaction, the system guarantees that either all operations succeed (commit) or all are rolled back if any single operation fails. This prevents message loss and ensures the two databases remain consistent with each other.

A. A single DB transaction cannot span two different RDBMS instances. Also, if the DB insert fails, the JMS message might be lost if acknowledged separately.

B. Using separate DB transactions breaks atomicity. If the first DB insert succeeds but the second fails, the data becomes inconsistent across the two RDBMSs.

D. Acknowledging the JMS message before the database transactions means the message is permanently removed from the queue. If the subsequent XA transaction fails, the message is lost.

1. MuleSoft Documentation, "Transactions in Mule Applications". This document explains that "XA transactions are transactions that can span across multiple transactional resources". It details how to configure a flow with a JMS listener and multiple database connectors to participate in a single XA transaction to ensure data integrity. (See section on "XA Transactions").

2. MuleSoft Documentation, "JMS Connector - Mule 4 > Transactions". This page states: "To have a JMS transaction and a database transaction in the same transaction, you must use an XA transaction". This directly supports the need for XA in this scenario.

The organization requires a solution that centralizes credentials for Mule applications deployed in both customer-hosted (on-premises) and MuleSoft-hosted (CloudHub) environments. A Mule domain project (A) is not supported in CloudHub. Storing files on a shared folder (B) is not accessible from CloudHub workers. Packaging properties files (C) is the duplication problem to be avoided. A centralized credentials service, accessible via an API, is the only option that provides a single source of truth for credentials that can be securely accessed from any deployment environment, effectively avoiding duplication and improving security posture.

A: Mule domain projects are not supported in CloudHub, making this solution unsuitable for the hybrid deployment model described.

B: CloudHub applications cannot access an organization's internal shared network folders, so this method would only work for on-premises deployments.

C: This approach represents the exact problem of credential duplication and management overhead that the organization wants to avoid.

1. MuleSoft Documentation, "Securing Application Properties". This document discusses various methods for securing properties, including using a secure properties file and integrating with third-party secrets management tools like HashiCorp Vault, which aligns with the concept of a credentials service. (Reference: MuleSoft Docs -> Runtime Manager -> Secure Application Properties)

2. MuleSoft Documentation, "Mule Domain Projects". This page states, "You can’t deploy Mule domain projects to CloudHub." This confirms why option A is incorrect. (Reference: MuleSoft Docs -> Anypoint Studio -> Mule Domain Projects)

To calculate the required IP addresses, consider the peak usage during zero-downtime deployments. Each of the 150 applications requires its 2 workers plus an additional 2 workers for the new version, totaling 4 workers simultaneously per application during the update. Therefore, the total number of required IP addresses is 150 applications × 4 IPs/application = 600 IPs. The smallest CIDR block that can accommodate 600 IPs is /22, which provides 1024 addresses. This size meets the requirement while providing a reasonable buffer for future growth.

A. 10.0.0.0/21 (2048 IPs) is larger than necessary, which would be an inefficient allocation of IP address space.

C. 10.0.0.0/23 (512 IPs) is insufficient as it cannot accommodate the required 600 IP addresses needed for peak deployment activity.

D. 10.0.0.0/24 (256 IPs) is significantly too small for the calculated requirement of 600 IP addresses.

1. MuleSoft Documentation, "Anypoint VPC Sizing". This documentation explains that during a zero-downtime update, CloudHub provisions new workers before destroying the old ones, requiring double the number of IPs per application temporarily.

2. MuleSoft Documentation, "Zero-Downtime Updates". It states: "During the application update process, there is a brief period of time when both the old and new versions of the application are running and accepting traffic, each with its own set of workers."

3. MuleSoft Knowledge Base, Article "How to calculate the number of IPs required for a VPC". This article provides the formula: Number of applications Number of workers per application 2.

The OpenAPI Specification (OAS) is the industry-standard, language-agnostic interface description for RESTful APIs. It allows both humans and computers to discover and understand the capabilities of a service without requiring access to source code or documentation. MuleSoft's Anypoint Platform fully supports designing, building, and managing APIs using OAS definitions.

A. Web Service Definition Language (WSDL) is the standard for describing SOAP-based web services, not REST APIs.

C. YAML is a data serialization language, a format in which an OAS definition can be written, but it is not the specification standard itself.

D. AsyncAPI Specification is a standard for defining and documenting asynchronous, event-driven APIs, not synchronous request-response REST APIs.

1. MuleSoft Documentation, "API specification format". "Anypoint Platform supports API specifications written in RAML or in the OpenAPI Specification (OAS), versions 2.0 and 3.0."

2. OpenAPI Initiative, "About the OpenAPI Specification". "The OpenAPI Specification (OAS) defines a standard, language-agnostic interface to HTTP APIs..."

To maximize performance and concurrency in a multi-node cluster, the JMS Listener should be active on all nodes and use multiple consumers on each node. Setting primaryNodeOnly = false enables the listener on every node in the cluster. Setting numberOfConsumers to a value greater than one creates multiple concurrent message-consuming threads on each of those active nodes. Since JMS queues guarantee that a message is delivered to only one consumer, this setup achieves maximum parallel processing while maintaining the "exactly-once" processing requirement.

A: This configuration underutilizes each node by only allowing one consumer, limiting concurrency and performance.

B: This is the least performant option, restricting processing to a single thread on a single node in the entire cluster.

C: This configuration fails to utilize the other nodes in the cluster for message processing, limiting overall throughput.

1. MuleSoft Documentation, "JMS Connector - Listener". Under the "Clustering" section for the JMS Listener, it states: "If you set primaryNodeOnly to false (the default), every node in the cluster has an active message source."

2. MuleSoft Documentation, "JMS Connector - Listener". The documentation for the numberOfConsumers parameter explains it controls "The number of concurrent consumers for this listener." To maximize concurrency, this should be greater than one.

The requirements are for secure, cross-platform, and internet-friendly communication. JSON/REST over HTTPS is the modern standard for web APIs, meeting all criteria. It's lightweight, platform-agnostic, and secured by HTTPS. SFTP (SSH File Transfer Protocol) is a widely used, secure method for file-based data exchange over the internet, also supported across various platforms. Both are excellent choices for exchanging data with a diverse group of external suppliers.

B: HOP (Hypertext Object Protocol) is not a widely adopted or standard internet protocol for this type of data exchange, reducing its suitability for a broad supplier base.

C: While functional, using a message broker like ActiveMQ creates a tighter coupling and higher barrier to entry for suppliers compared to standard web APIs or SFTP.

D: FTP (File Transfer Protocol) is inherently insecure as it transmits credentials and data in cleartext, making it unsuitable for communication over the public internet.

1. MuleSoft Documentation, "Secure Sockets Layer (SSL)". This document outlines the use of HTTPS and TLS for securing communications, a core requirement. (Reference: MuleSoft Docs -> Runtime Manager -> Secure Sockets Layer (SSL)).

2. MuleSoft Documentation, "SFTP Connector". This describes the use of SFTP for secure file transfers, which is a standard and secure method for data exchange. (Reference: MuleSoft Docs -> Connectors -> SFTP Connector).

3. MuleSoft Whitepaper, "API-led Connectivity". This paper advocates for using modern, standard-based APIs (like REST/JSON over HTTPS) for building reusable and accessible interfaces. (Reference: "The new IT operating model for enterprise connectivity" section).

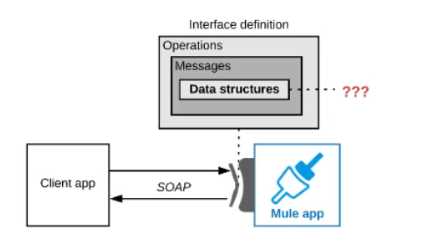

A WSDL (Web Services Description Language) file defines the contract for a SOAP web service. Within the WSDL, the section is used to define the data structures of the messages. The language universally used inside the section to define these complex data types, elements, and their constraints is XML Schema Definition (XSD). XSD provides the vocabulary for describing the structure and content of the XML payloads that the web service sends and receives.

A. WSDL: WSDL is the language for the entire service contract (operations, bindings, endpoint), but it uses XSD specifically for defining the data structures within its section.

C. JSON Schema: JSON Schema is used to define the structure of JSON documents and is irrelevant for SOAP web services, which use XML.

D. RAML: RAML (RESTful API Modeling Language) is a specification language used for designing and documenting RESTful APIs, not SOAP web services.

MuleSoft Documentation, "Create a SOAP API from a WSDL". The documentation explains that Anypoint Studio can "generate Mule flows from a WSDL file" and that the WSDL's section, containing XSD, defines the data structures that become DataWeave types.

W3C, "Web Services Description Language (WSDL) Version 2.0 Part 1: Core Language", 26 June 2007. Section 2.2, "Defining Message Types", states: "WSDL allows message types to be defined using a type system, such as XML Schema." This confirms XSD is the standard mechanism.

The organization's primary goal is to "rigorously minimize IT operations effort," which strongly favors the MuleSoft-hosted Anypoint Platform control plane, as MuleSoft manages its infrastructure, maintenance, and upgrades. The requirement that all business data must traverse private network links necessitates placing the runtime plane within the organization's datacenters, which are already interconnected. This hybrid model (MuleSoft-hosted control plane, customer-hosted runtime plane) perfectly balances minimizing operational overhead for platform management while maintaining full control over data residency and processing within the private network.

A: CloudHub may not meet the strict private network requirement for all business data without significant additional networking setup (e.g., Anypoint VPN).

B: Anypoint Platform - Private Cloud Edition (PCE) maximizes, rather than minimizes, the organization's IT operations effort for managing the control plane.

C: Deploying runtimes to AWS introduces a new platform (AWS) that the organization does not use, adding complexity and investment contrary to the strategic goal.

1. MuleSoft Documentation, "Deployment Models". This document outlines the different deployment options, including the hybrid model where MuleSoft hosts the control plane and the customer hosts the runtimes. It highlights the benefit of reduced operational overhead for the control plane. (Reference: MuleSoft Docs -> Anypoint Platform -> Deployment Models)

2. MuleSoft Whitepaper, "Anypoint Platform Architecture: Deployment Strategies". This paper details the responsibilities under each model. For the hybrid model, it specifies that the customer is responsible for the runtime plane infrastructure, which allows them to meet data residency and private network requirements.
