ACP-01101 Practice Questions

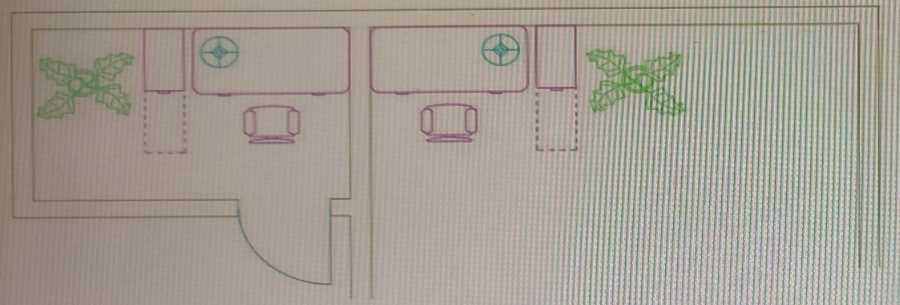

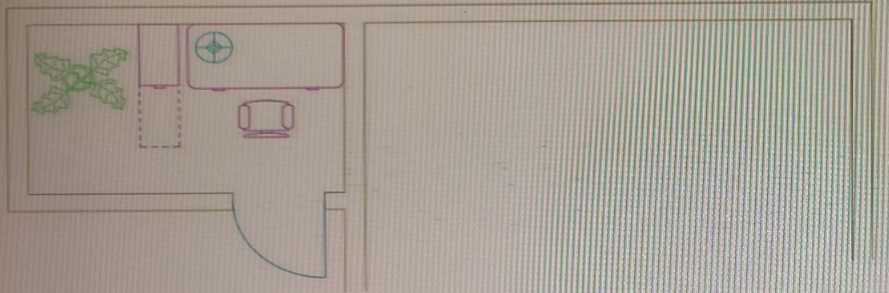

To mirror the office arrangement symmetrically into the adjacent room without drawing temporary construction lines, the "Mid Between Two Points" (M2P or MTP) object snap modifier is the correct tool. The wall separating the rooms consists of two parallel lines. By activating the MIRROR command and using the M2P modifier, a user can select a point on the left wall line and a corresponding point on the right wall line to establish the exact center of the wall cavity. Doing this twice creates a perfectly centered, vertical mirror axis, ensuring the copied objects land exactly in the correct position in the right-hand room.

B. Endpoint (END): Snaps to the physical end of an existing line, which would place the mirror axis on one edge of the wall, causing an off-center, asymmetrical reflection.

C. Midpoint (MID): Snaps to the center of a single, existing geometric segment. There is no physical line drawn down the middle of the wall to snap to.

D. Intersection (INT): Snaps to the exact point where two or more objects cross. There are no intersecting lines in the blank space between the two wall lines.

Autodesk. AutoCAD 2024 User's Guide: About Object Snaps. Autodesk Knowledge Network. Retrieved from Autodesk Official Documentation. (Section: "Object Snap Modifiers - M2P or MTP").

Autodesk. AutoCAD 2024 Command Reference: MIRROR (Command). Autodesk Knowledge Network. (Section: "Specify first point of mirror line", detailing the use of object snap overrides like M2P to find implied symmetry lines).

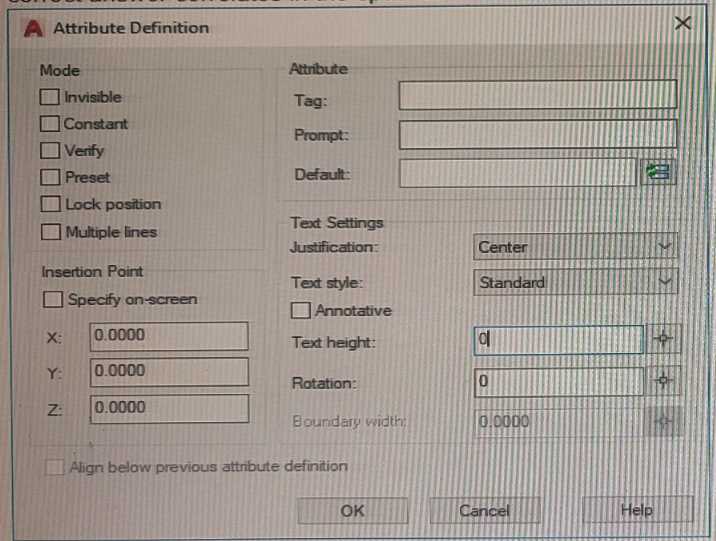

In AutoCAD, the "Constant" mode is selected during attribute definition to assign a fixed, unchanging value to all insertions of a block. When an attribute is defined as constant, AutoCAD automatically applies the default value and does not prompt the user for input during the block insertion process. Furthermore, once inserted, the attribute's value cannot be subsequently modified using standard attribute editing tools (like EATTEDIT). This mode is specifically designed for static information that must remain identical across all instances of a block, such as a company name or a standardized part identifier.

B. Lock position: This mode restricts the spatial movement or relocation of the attribute text within the block reference; it does not prevent the text value itself from being modified.

C. Verify: This mode prompts the user to confirm the attribute value is correct immediately after block insertion, meaning the value is variable and intended to be checked or altered.

D. Preset: This mode inserts the block with its default attribute value automatically without prompting the user initially, but unlike Constant, the text value can still be changed later.

Autodesk Inc. "Attribute Definition Dialog Box." AutoCAD Help Documentation, Section: Mode. (Details the specific behaviors of the Constant, Preset, Verify, and Lock Position checkboxes, confirming Constant assigns a fixed, unchangeable value).

Autodesk Inc. "About Block Attributes." Autodesk Knowledge Network (AKN), Section: Setting Attribute Modes. (Provides the official definitions for attribute modes and their impact on block insertion behavior).

The RAY command creates a semi-infinite line, often used as a construction line. It starts at a specified point and extends to infinity in a single direction. This precisely matches the user's requirement to create a reference line that "starts at a defined point and extends to infinity in the designated direction." The RAY is part of the construction line toolset designed for establishing geometric references and projections from a specific origin point.

A. MLINE creates multiple parallel lines as a single object, which is not a reference line extending to infinity.

B. CURSORSIZE is a system variable that changes the size of the crosshair cursor; it does not create any drawing objects.

D. XLINE creates a construction line that passes through a specified point and extends to infinity in both directions, not just one.

1. Autodesk, Inc. (2023). RAY Command. Autodesk Knowledge Network. Retrieved from https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2023/ENU/AutoCAD-Core/files/GUID-75E583AB-2D32-4063-A85E-42556E20B33D-htm.html. (The documentation states, "Creates a semi-infinite line commonly used as a construction line.")

2. Autodesk, Inc. (2023). XLINE Command. Autodesk Knowledge Network. Retrieved from https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2023/ENU/AutoCAD-Core/files/GUID-51445131-5B5E-4F3D-827B-1414420153C4-htm.html. (This reference clarifies that XLINE extends infinitely in two directions, contrasting with RAY.)

3. Raker, D., & Raker, H. (2015). AutoCAD and Its Applications Basics 2016. Goodheart-Willcox. Chapter 10, "Drawing and Construction Lines," details the functional difference between RAY (one direction) and XLINE (two directions).

To apply a named page setup to the currently active layout using the Page Setup Manager in AutoCAD, the user must specify which page setup configuration to activate. According to official Autodesk documentation, this is accomplished by interacting directly with the desired page setup in the provided list. The standard workflow is to right-click (or Control-click on macOS) the target named page setup—in this scenario, 22x34_PDF—and choose "Set Current" from the resulting context menu. Alternatively, a user could select the page setup and click the "Set Current" button shown in the dialog box interface.

Option B is incorrect because AutoCAD's Page Setup Manager does not support drag-and-drop gestures for applying plot configurations to the layout tabs in the main drawing area.

Option C is incorrect because right-clicking the layout name does not select or assign the target page setup; the contextual action must be performed directly on the desired page setup.

Option D is incorrect because dragging and dropping items within the Page Setup Manager list is not a supported user interface action for assigning configurations.

Autodesk Help Documentation (AutoCAD 2024): "To Work with Named Page Setups for Plotting." Section: Apply a Layout's Named Page Setup to Another Layout. (Details selecting the target setup and using the Set Current command). Autodesk Knowledge Network

Autodesk Official Cloud Help: "Page Setup Manager." Section: Right-Click Options. (Explicitly documents the right-click menu options for page setups, including "Set Current"). Autodesk Cloud Help

The Reference option within the ROTATE command allows for precision alignment when the original angle of an object is unknown. After initiating the command and selecting the object, a base point must be established to act as the center of rotation. By selecting the Reference option, you define the "current" angle by picking two points along the object's edge (the lower corners). Finally, entering a new angle of 0 instructs the software to align that referenced edge perfectly with the horizontal axis (the 0-degree vector), matching the orientation of square (2).

Autodesk Support & Learning: "ROTATE (Command)." Documentation for AutoCAD 2026. [Section: To Rotate an Object to an Absolute Angle].

Autodesk Knowledge Network: "About Rotating Objects." [Section: Rotating by Reference].

University of California, Berkeley (College of Environmental Design): "AutoCAD Fundamentals - Transformation Commands: Rotate with Reference." Courseware Materials.

MIT OpenCourseWare (OCW): "1.001 Engineering Design and Rapid Prototyping," Section: CAD Geometry and Transformations (Drafting Standards).

The Detach command is used to sever the link between the host file and the external reference, which erases all graphical instances and removes the definition from the drawing's database. Reload refreshes the link, forcing the software to read the most recently saved version of the external file to reflect any updates without requiring the user to close and reopen the host drawing. Bind transforms the external reference into a local block definition within the host drawing's internal database. This process internalizes the geometry and layers, effectively removing the external dependency and making the content a permanent part of the host file.

Autodesk, Inc. (2024). AutoCAD 2024 Help: External References (Xrefs). Section: "To Detach an External Reference." Document ID: GUID-E5A7490A-705E-497B-9844-3B6439E4A962. (Official Vendor Documentation).

Autodesk, Inc. (2024). AutoCAD 2024 Help: External References (Xrefs). Section: "To Update (Reload) External References." Document ID: GUID-B3A2C051-766D-4673-B500-F7695D830C86. (Official Vendor Documentation).

Autodesk, Inc. (2024). AutoCAD 2024 Help: External References (Xrefs). Section: "About Binding an Xref to the Current Drawing." Document ID: GUID-5C32E69E-8646-46A9-86B5-D1898D71911D. (Official Vendor Documentation).

In AutoCAD, the HATCH command uses island detection to determine how to treat nested internal boundaries when a point (X) is selected in the outermost area.

• Normal island detection hatches inward from the outer boundary. It stops hatching when it encounters the first internal boundary (the inner rectangle) and resumes hatching when it hits the next internal boundary (the circle). This creates the "alternating" hatched pattern seen in the first result.
• Outer island detection hatches inward from the outer boundary and stops immediately upon reaching the first internal boundary. It ignores any further nested objects, resulting in only the outermost "ring" being hatched, as seen in the second result.
• Ignore island detection would hatch through all internal boundaries completely.

Autodesk Knowledge Network. (2024). Hatch and Gradient Dialog Box: Island Detection. Retrieved from Autodesk Official Documentation. Section: Island detection styles.

Autodesk AutoCAD 2024 Help. About Selecting Boundaries for Hatching. Topic ID: GUID-E69C1798-2B1E-47C0-B9BA-7D688439369C.

Omura, G., & Benton, B. C. (2021). Mastering AutoCAD 2021 and AutoCAD LT 2021. John Wiley & Sons. Chapter 7: Mastering Fill Patterns, Section: Controlling Island Detection.

Autodesk Official Training Guide. AutoCAD Fundamentals. Lesson: Creating Hatched Objects, Subsection: Island Detection Options.

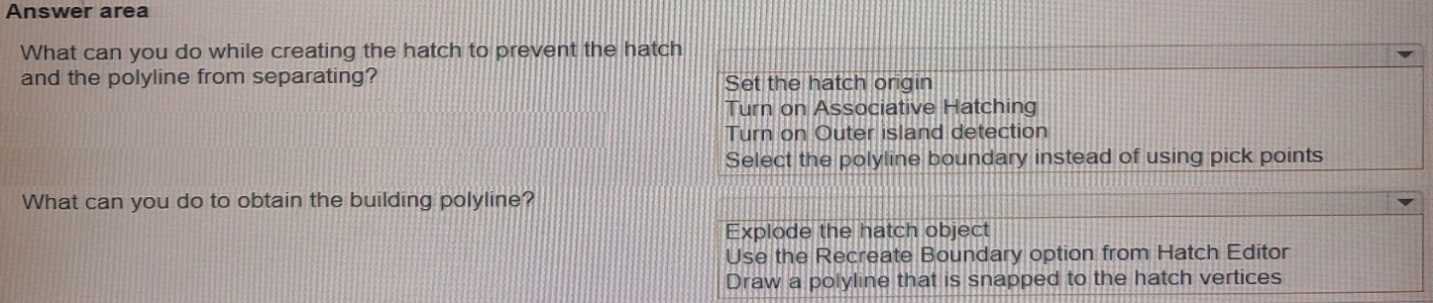

Associative Hatching: In AutoCAD, the Associative property links a hatch object to its boundary geometry. When this feature is enabled, any transformation (moving, scaling, or stretching) applied to the boundary is automatically reflected in the hatch. If Associative Hatching is disabled, the hatch and boundary become independent objects, leading to the separation shown in the exhibit.

Recreate Boundary: If a boundary is lost or separated from a hatch, the HATCHEDIT command or the Hatch Editor ribbon tab provides the Recreate Boundary tool. This function analyzes the hatch's perimeter and generates a new, closed polyline or region that perfectly matches the hatch's current extents.

Autodesk Official Documentation (AutoCAD 2024 Help):

Section: "About Hatch Associativity." Document ID: GUID-7D583F8C-6F7D-4F1E-9C8A-1F4F8B3F2B6C. It defines associativity as the mechanism that maintains the link between the hatch and its defining boundary.

Section: "To Recreate a Hatch Boundary." Document ID: GUID-A3A4E3A0-5E6C-4F9D-8F1E-2B6C7D583F8C. This outlines the procedure for generating a polyline from an existing hatch.

Engineering Design Graphics: AutoCAD 2023 (University of Houston/Academic standard):

Chapter 10: Hatching and Gradients. Explains that "Selecting the polyline boundary" (one of the distractors) defines the shape but does not guarantee the link; only the Associative toggle (HPASSOC system variable) prevents separation.

Technical Graphics Communication (6th Edition), Bertoline et al. (McGraw Hill Education):

Section 14.4: CAD Editing Commands. Discusses the importance of object properties in parametric and semi-parametric CAD environments, specifically identifying "Recreate Boundary" as the standard method for recovering lost geometry from pattern data.

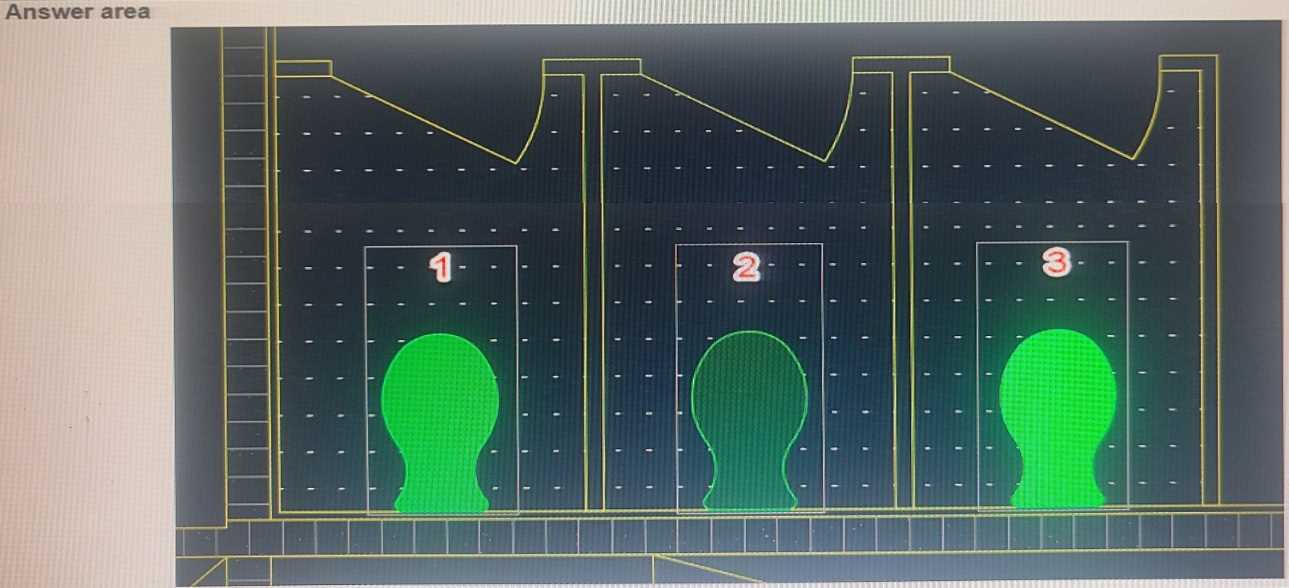

In AutoCAD and similar CAD software, Layer Transparency is measured on a scale from 0 to 90. A value of 0 indicates that the object is completely opaque (solid), while a value of 90 indicates maximum transparency.

Because the drawing background in the provided image is dark (standard CAD model space), an object with high transparency (90) will allow the dark background to show through, making the object appear significantly dimmer or "faded" compared to opaque objects. Object 2 is visually much darker and less saturated than Objects 1 and 3, which indicates the highest transparency setting has been applied to its layer.

Autodesk Knowledge Network: AutoCAD Help: SETLAYERTRANSPARENCY (Command). "Specifies the transparency level for the current layer... valid values are from 0 (opaque) to 90 (maximum transparency)."

Autodesk Knowledge Network: AutoCAD Help: Transparency (Property). "The transparency value for objects and layers... 90% is the maximum transparency level to prevent objects from becoming invisible."

University of Houston, College of Technology: Introduction to Computer-Aided Drafting. Section: Layer Properties and Transparency. "Transparency values range from 0 to 90. Higher values make the object appear more transparent, blending the object color with the background color."

IEEE Computer Graphics and Applications: Alpha Blending and Transparency in Vector-Based Graphics. Volume 25, Issue 1. "In digital drafting, alpha-blending values determine the visibility of the background through the stroke/fill; a 90% transparency setting results in a 0.1 alpha-multiplied color output."

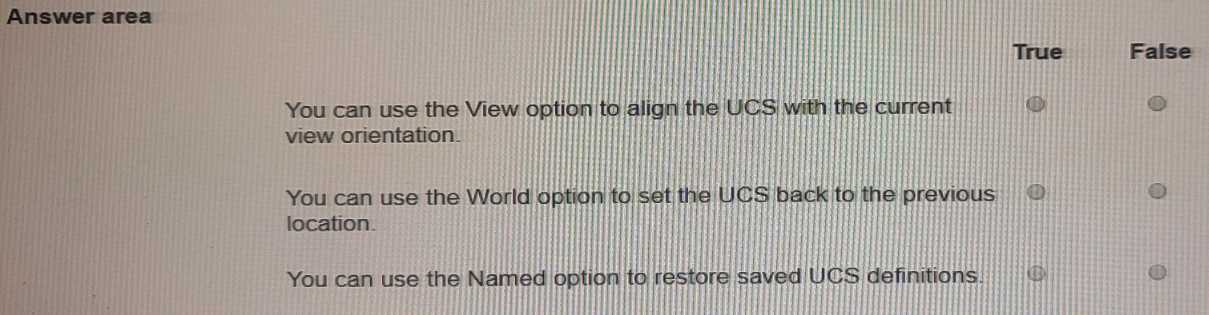

Statement 1 (True): The View option of the UCS command aligns the XY plane of the User Coordinate System to be perpendicular to the current line of sight (the viewing direction). This effectively makes the screen plane the drawing plane.

Statement 2 (False): The World option resets the coordinate system to the World Coordinate System (WCS), which is the fixed, global origin. To return to the "previous location" or previously active coordinate system, one must use the Previous option.

Statement 3 (True): The Named option within the UCS command provides a sub-menu (Restore/Save/Delete/?) that allows a user to Restore a previously saved UCS by entering its name.

Autodesk Documentation (AutoCAD 2024 Help): "UCS (Command)". Section: Options. This documentation specifies that the World option "Aligns the UCS with the world coordinate system (WCS)" while the Previous option "Restores the previous UCS."

Autodesk Knowledge Network: "To Align the User Coordinate System (UCS) to the Current View". Document ID: AUTOD-01. This resource explicitly confirms the View option behavior for screen-parallel alignment.

Autodesk Documentation (AutoCAD 2024 Help): "UCS (Command) - Named Option". This section details the sub-prompts for the Named option, specifically highlighting the "Restore" function to recall saved definitions.

Academic Resource: AutoCAD 2024 Instructor by James A. Leach and Shawna Lockhart (SDC Publications). Chapter 22: User Coordinate Systems, Section 22.3 "UCS Options". Paragraph 4 clarifies the distinction between resetting to World versus reverting via the Previous option.
