BIM_MGT_101 Practice Questions

In Autodesk Revit, when a linked file with established Shared Coordinates is accidentally moved or unpinned, its physical instance location changes relative to the host model, but its named Shared Site definition remains intact in the model database. To restore the link to its correct position, the BIM manager selects the linked instance, opens its Instance Properties, and clicks the Shared Site button. By selecting "Move instance to" and choosing the defined Shared Site name, Revit automatically relocates the linked CAD file back to its precise coordinate origin. This workflow restores alignment without manual measurements, re-importing, or modifying external CAD files.

Option A: Publishing coordinates overwrites the external file's saved coordinate definition, which would permanently alter and corrupt the established shared positioning system.

Option B: Manually moving the CAD file is imprecise and fails to utilize the recorded Shared Site coordinate definition stored in the Revit model database.

Option D: Updating and relinking the CAD file is unnecessary and inefficient, as the correct coordinate definition is already stored within Revit's Shared Site properties.

1. Autodesk Official Documentation

Revit Help: Realign Linked Models Using Shared Coordinates

Autodesk

Inc.

2024. Section: "Shared Positioning / Move Link to Defined Site".

2. Autodesk Official Documentation

Revit Knowledge Network: Reset a Link Position to the Shared Site

Autodesk

Inc.

2023. Document ID: GS11842.

3. Wing

E.

Autodesk Revit Architecture: Review for Professional Certification

Wiley

2021. Chapter 8: "Managing Linked Files and Shared Coordinates".

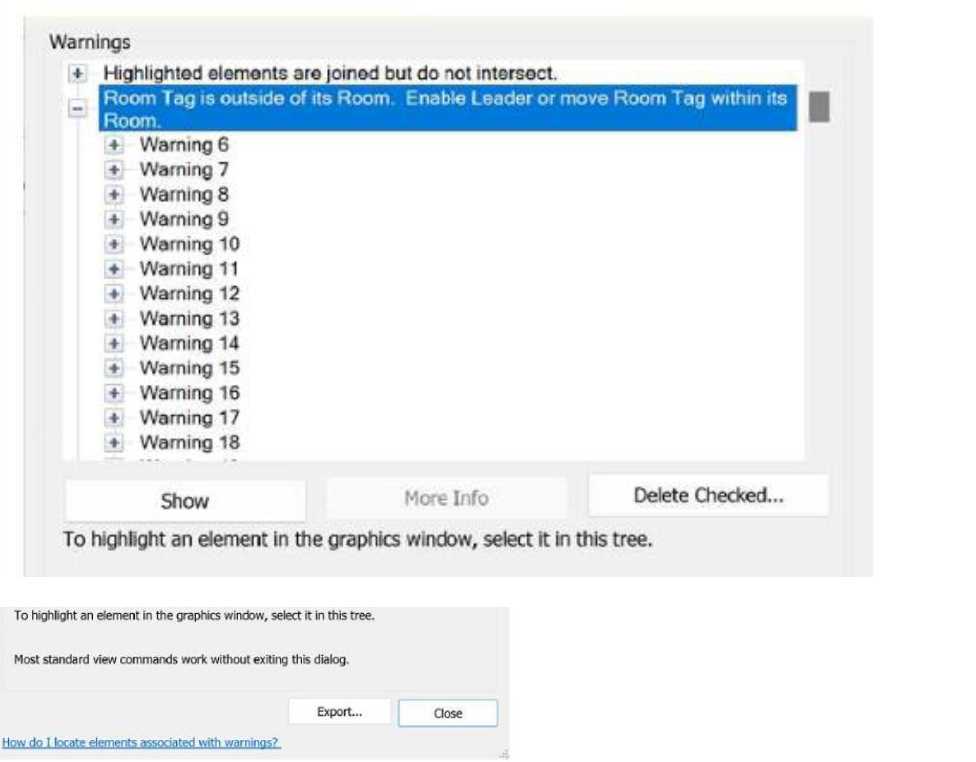

To determine if a Room Tag is too large for its spatial boundaries and requires a leader, the design team must visually inspect the tag within the model. In the Revit Warnings dialog, as shown in "image", clicking the "Show" button actively searches the model for a view where the flagged element is visible, opens that view, and highlights the specific element. This functionality allows the user to directly evaluate the tag's placement and size in relation to the room, enabling them to make an informed decision on whether to reposition the tag or enable the leader line.

Option B: Exporting creates a static HTML text report of the warnings but provides no visual graphic context to evaluate the physical size and placement of the tag.

Option C: Clicking Close simply dismisses the warnings dialog without taking any corrective action or navigating the user to the problematic elements.

Option D: Selecting Delete Checked completely removes the highlighted room tag from the project view instead of properly resolving its location or display settings.

Autodesk Inc. Revit Help: Review Warning Messages. Architecture > Model the Design > Review Warnings. (Specifically details the function of the "Show" button to locate and highlight elements associated with a warning in an active view).

Autodesk Inc. Revit Help: Select Elements Associated with Warnings. (Describes how the warning dialogue interface interacts with model views and element properties).

In large-scale projects, running automated clash detection across all elements without scope filters yields thousands of irrelevant false positives, creating operational noise. A BIM Execution Plan (BEP) defines a clash matrix specifying precise tolerances, priority rules, and specific spatial zones for coordination. Applying the clash matrix enables the BIM manager to filter out minor geometric overlaps—such as minor duct-ceiling clearance issues or grid lines—and adjust hard and soft clash tolerances appropriately. By generating targeted reports filtered by discipline, zone, and trade scope, the BIM manager ensures that project teams receive actionable, prioritized clash data directly aligned with the project's predefined coordination strategy.

A. Distributing raw, unfiltered clash reports creates confusion, overwhelms trade contractors with minor false positives, and lacks clear prioritization aligned with project strategy.

B. Exporting thousands of unfiltered issues into a spreadsheet transfers manual sorting burdens to project managers without utilizing built-in BIM coordination filtering rules.

C. Temporarily relaxing or disabling rules across the board obscures legitimate high-priority clashes and risks missing critical constructability issues in essential building zones.

1. ISO 19650-2:2018 Section 5.6 "Production of information - Collaborative production of information and spatial coordination".

2. Autodesk Construction Cloud / Model Coordination Documentation: "Clash Detection

Clash Matrix

and Tolerance Settings". https://help.autodesk.com/view/COLLAB/ENU/

3. Penn State Computer Integrated Construction Research Program

"BIM Project Execution Planning Guide"

Version 2.2

Section 3.2 "Clash Detection and Coordination".

At project completion, the primary BIM deliverable handed over to the owner or facility manager is the record model (or as-built BIM). Record models integrate all design changes, field modifications, and approved submittals accumulated during construction, along with detailed asset data required for Facilities Management (FM) and Operations and Maintenance (O&M). Standard frameworks like ISO 19650 and COBie mandate that record models contain accurate non-geometric attributes—such as equipment serial numbers, warranty details, and maintenance schedules—embedded directly within the BIM elements. Handing over finalized record models with embedded asset data ensures the facility management team can effectively operate, maintain, and manage the physical asset throughout its lifecycle.

A. Internal meeting notes are temporary administrative records used during active coordination and are not required or useful for long-term facility operations.

B. Federated design models used during construction clash detection represent intermediate work-in-progress state models, not the finalized as-built facility conditions required at handover.

C. Temporary 3D saved views created solely for spatial clash analysis during model coordination are transient working views rather than standardized operational closeout deliverables.

1. ISO 19650-2:2018 Organization and digitization of information about buildings and civil engineering works — Part 2: Delivery phase of the assets

Section 5.8 "Handover of asset information".

2. Autodesk BIM 360 / ACC Documentation: "Managing Asset Data for Facilities Handover and Project Closeout". https://help.autodesk.com/view/BIM360D/ENU/

3. National Institute of Building Sciences (NIBS)

National BIM Standard - United States (NBIMS-US) V3

Section 4.2 "COBie and Asset Data Handover".

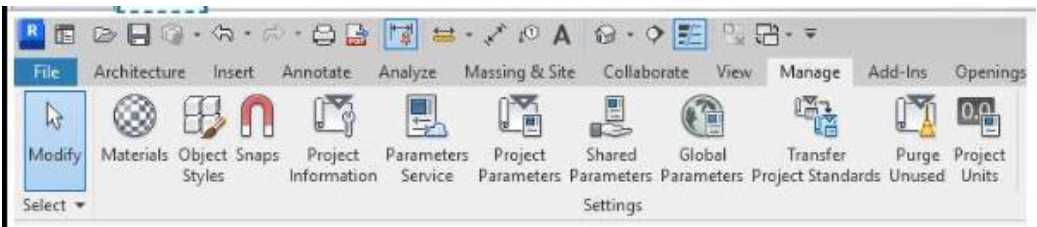

When custom shared parameters are extracted and hosted on the Autodesk Construction Cloud (ACC) via the Parameters Service, local shared parameter text files are no longer required. To access, filter, and load these cloud-hosted parameters into an active project model, a team member must click the "Parameters Service" button located on the Manage tab of the Revit ribbon. This tool opens a direct connection to the cloud repository to synchronize and bind the parameters to the project.

Autodesk, Inc. Revit Help: Parameters Service. Autodesk Knowledge Network. Section: "Accessing the Parameters Service".

Autodesk, Inc. Autodesk Construction Cloud Help: Parameters Service Overview. Section: "Using the Parameters Service in Revit".

When a campus model receives an updated civil background with revised GIS coordinates, the BIM Manager must update the coordinate system. First, they must reset the coordinates of the host model. This clears the obsolete shared coordinate relationships and resets the survey point. Next, the updated property boundary file is linked into the project. After placement, the BIM Manager must acquire coordinates from this updated resource file to establish the newly revised shared coordinate system, including True North, within the host model. Finally, because the duplicated building links rely on shared positions, the Shared Site of each link copy must be updated. This ensures that all instances correctly align with the new site context without losing their relative positioning.

Autodesk Revit API Main Reference, "Document.ResetSharedCoordinates Method" (Document Identifier: 9d41f633-f649-c77b-5c30-463f8ebb01a3).

Autodesk Revit User's Guide, "Acquire Coordinates" (Document Identifier: 2413-Acquirin2413).

Autodesk Revit 2027 Help, "Move a Link Instance to a Named Position / Shared Site" (Document Identifier: GUID-92A1257B-955A-4408-8A36-AC9EF7393202).

In complex multidisciplinary BIM projects, data inconsistencies, unauthorized model modifications, and communication failures stem from a lack of formal information governance. According to ISO 19650 standards and BIM management principles, the most critical initial step is establishing clear management protocols via a BIM Execution Plan (BEP) and information exchange standards. These protocols define clear model authoring boundaries, element ownership, permission structures, quality control procedures, and official communication channels. Establishing governed rules upfront provides the foundational framework needed to align multidisciplinary project teams, enforce editing compliance, streamline coordination, and mitigate project delivery risks. Technical controls or individual firm strategies cannot succeed without overarching, mutually agreed-upon project governance protocols.

Option A: Leaving each firm to independently review models without centralized governance leads to siloed workflows, inconsistent quality checks, and uncoordinated resolutions.

Option B: Restricting access in the CDE is a technical enforcement measure, but technical restrictions without agreed governance protocols fail to clarify ownership and communication.

Option D: Requesting isolated modeling strategies from individual firms focuses on internal firm practices rather than defining unified project-wide communication, ownership, and coordination protocols.

- ISO 19650-1:2018 Organization and digitization of information about buildings and civil engineering works

including building information modelling (BIM) — Part 1: Concepts and principles

Section 6: Information governance.

- Stanford Center for Integrated Facility Engineering (CIFE). "BIM Protocol Implementation and Information Governance Frameworks". Stanford University Technical Report TR204.

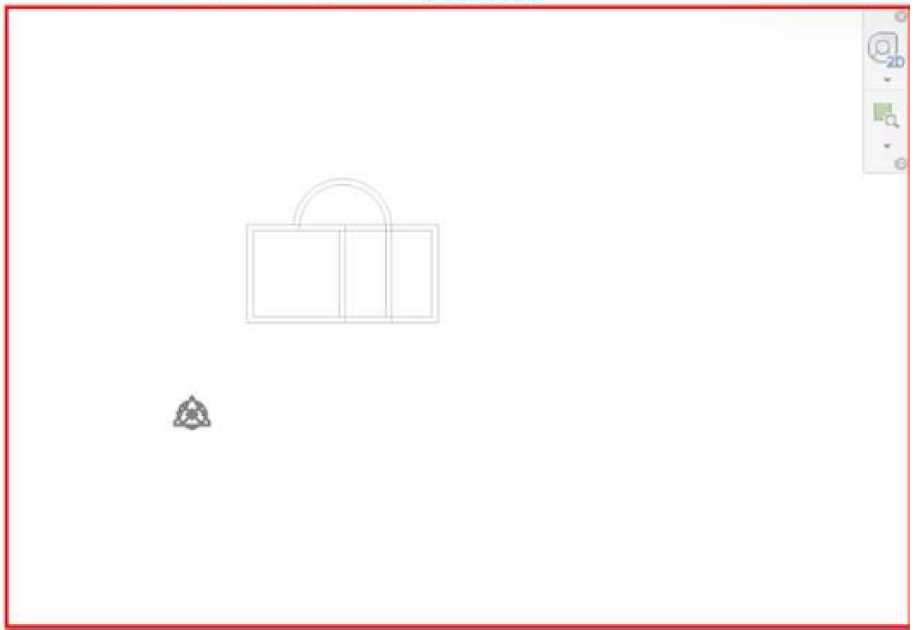

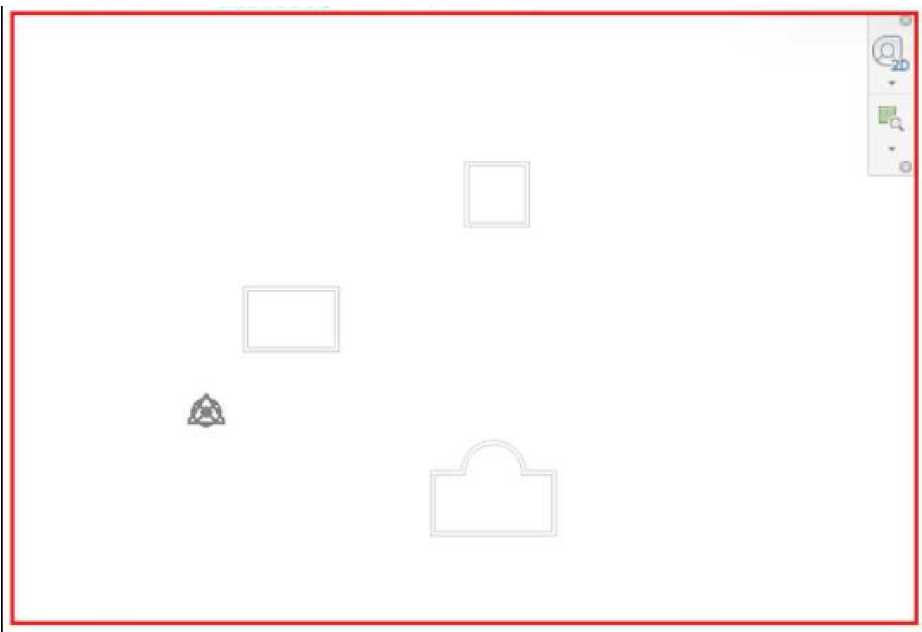

In Autodesk Revit, when assembling a federated site model that includes multiple separate buildings, best practices require establishing a Shared Coordinate system. The host site model must maintain a single, unified Survey Point (represented by the triangle) to define the real-world geodetic coordinates, true north, and elevation for the entire project. Conversely, each linked building model maintains its own local Project Base Point (represented by the circle with a cross) to govern its specific local coordinate system, project north, and grid intersections. Exhibit 3 accurately depicts this architectural standard by showing one overarching Survey Point for the site and three distinct Project Base Points for the individual linked models.

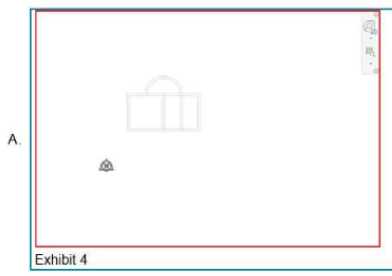

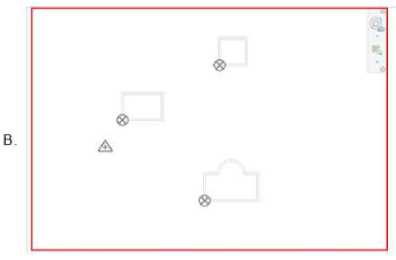

A: Exhibit 4 displays only a single building model, completely failing to address the prompt's scenario of assembling a site with three separate buildings.

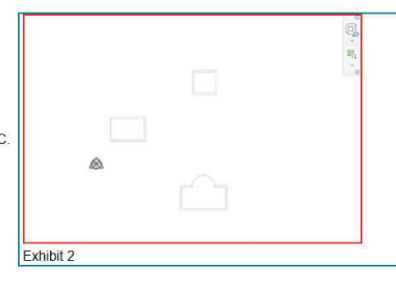

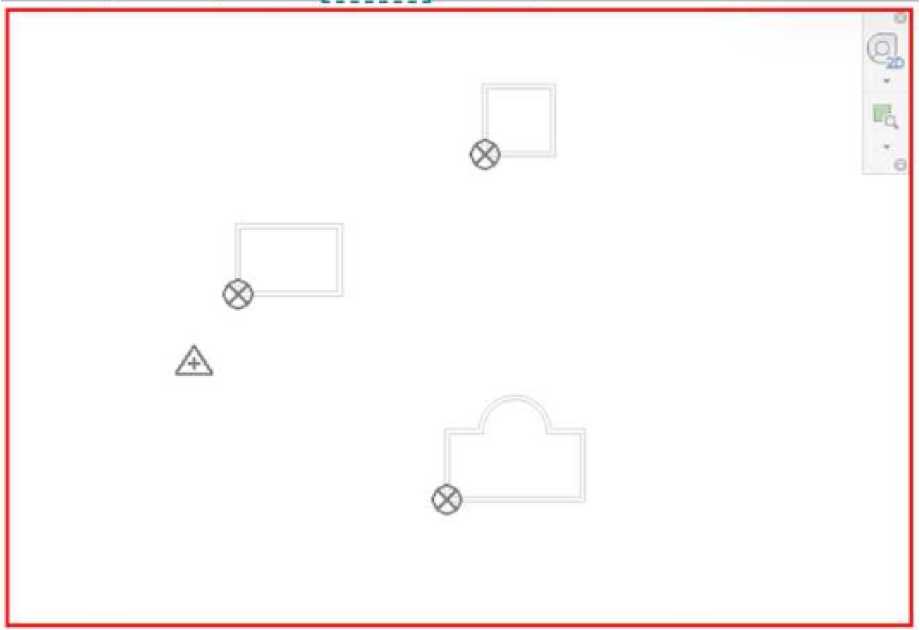

C: Exhibit 2 fails to display the individual Project Base Points for the linked models, indicating the local coordinate control for the individual buildings is not properly maintained or displayed.

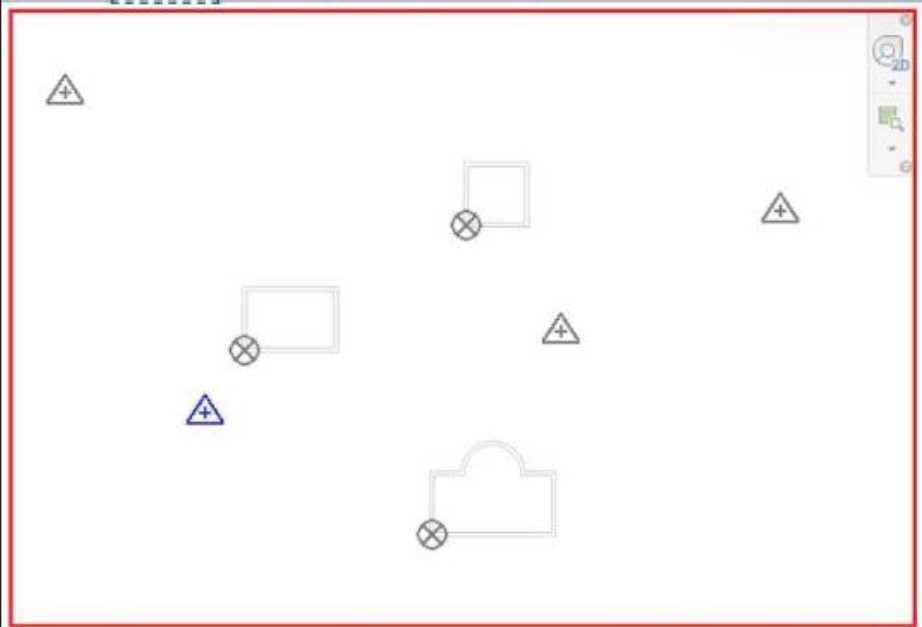

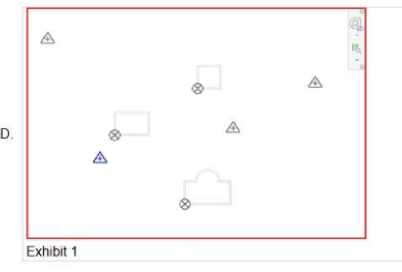

D: Exhibit 1 displays multiple Survey Points across the site, which fundamentally violates the BIM principle of using a single, unified geodetic reference point for a shared site.

Autodesk, Inc. "About Shared Coordinates." Revit 2024 Official Help Documentation, 2023. (Specifically referencing the section on linking multiple models to a single site and sharing coordinates).

Autodesk, Inc. "About the Survey Point and Project Base Point." Revit 2024 Official Help Documentation, 2023. (Detailing the distinct visual representations and functional differences between the Survey Point and Project Base Point).

Computer Integrated Construction Research Program. "BIM Project Execution Planning Guide." Penn State University, Version 2.2, pp. 62-65. (Discussing federated model assembly and coordinate system alignment requirements).

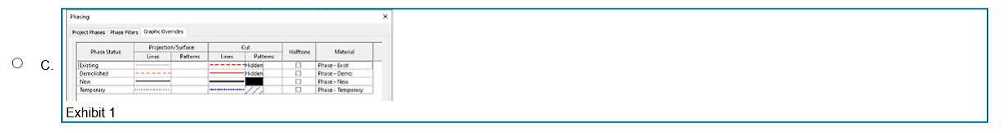

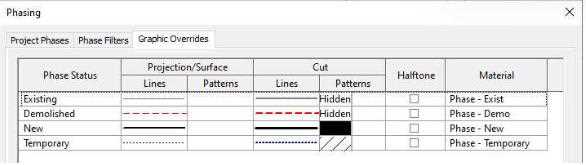

To guarantee that demolished elements are consistently displayed as dashed red across all project views, the Phase Graphic Overrides must be applied to both how the element is seen in elevation and how it is intersected. The "Demolished" phase status must have its "Projection/Surface" lines and "Cut" lines both explicitly configured to a dashed red line style. Exhibit 4 is the only configuration that correctly applies the dashed red line override to both line condition columns, ensuring full compliance with the technical group's new standard regardless of the active view type or view range settings.

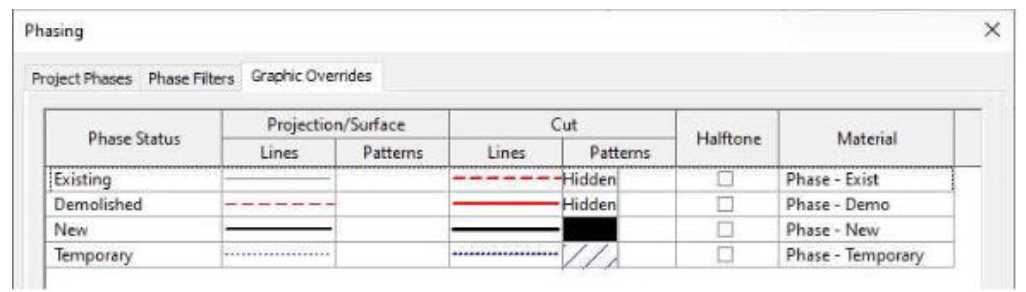

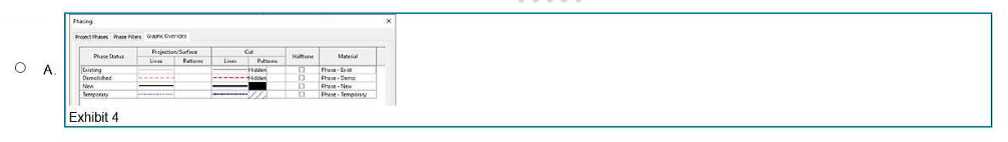

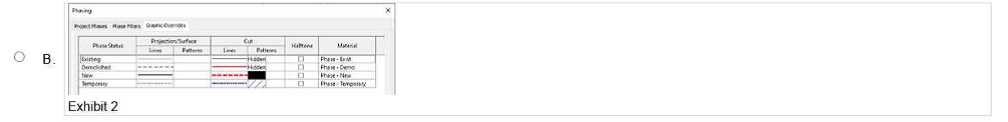

Exhibit 2 is incorrect because the Projection/Surface lines are set to dashed black instead of dashed red, and the Cut lines are solid black.

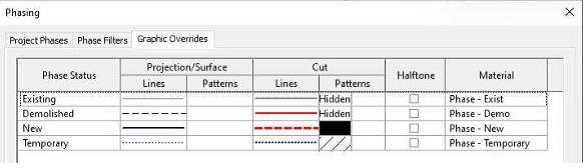

Exhibit 1 is incorrect because while the Projection/Surface lines are properly set to dashed red, the Cut lines are set to solid red rather than dashed red.

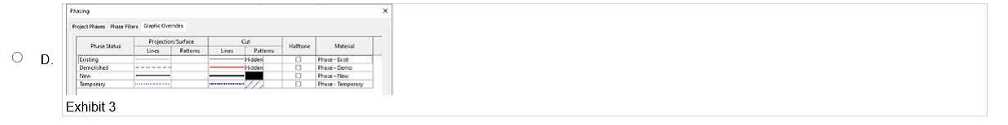

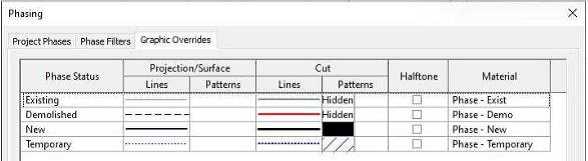

Exhibit 3 is incorrect because the Projection/Surface lines for demolished elements are set to dashed black, and the Cut lines are set to solid red.

Autodesk, Inc. Revit Official Help: About Phase Graphic Overrides. Phase Properties and Filters Section.

Autodesk, Inc. Revit Official Help: Specify Graphic Overrides for Phases. Document ID: GUID-E38531AD-5353-4ED5-8D6B-9DBCC72B8CDB.

Ensuring model compliance with strict project standards, COBie parameter requirements, and naming conventions requires automated quality assurance. Utilizing a model checker or dedicated data-validation tool enables the BIM manager to systematically audit parameter existence, parameter data types, and naming formats against defined BIM Execution Plan rulesets. Manual element inspections are prone to human error and are unfeasible for complex, multi-disciplinary models. Automated data validation generates precise, reproducible compliance reports, allowing consultants to remediate missing metadata efficiently prior to coordination milestones. This standardized workflow enforces data integrity across project models without modifying element visibility or depending on informal, unwritten communication.

A: Manually inspecting every element in the Model Browser is extremely time-consuming, inefficient, and susceptible to significant oversight.

C: Requesting model re-exports based on verbal feedback lacks structured, reproducible validation criteria required for contractual compliance.

D: Hiding non-compliant elements in 3D views conceals missing data rather than resolving compliance issues, severely hindering effective multidisciplinary coordination.

- Autodesk Interoperability Tools

Autodesk Model Checker for Revit: Configuration and Validation Guide

Autodesk Inc.

2023.

- ISO 19650-2:2018

Information management using building information modelling — Part 2: Delivery phase of the assets

Clause 5.6: Quality Control of Information.

- East

E. W.

Construction-Operations Building information exchange (COBie) Quality Assurance

BuildingSMART Alliance / National Institute of Building Sciences (NIBS)

Technical Report.
