RVT_ELEC_01101 Practice Questions

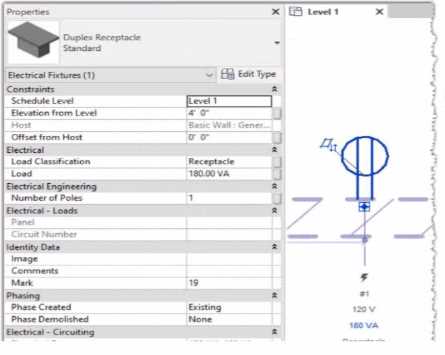

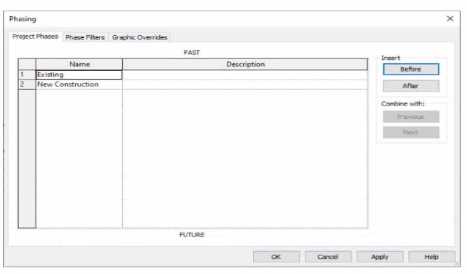

In Revit's phasing system, demolition is not a phase itself but an action that occurs within a specific phase. The project is set up with "Existing" and "New Construction" phases. To indicate that an existing element is to be demolished, its "Phase Demolished" instance parameter must be set to the phase in which the demolition work occurs. Since the view's phase is "New Construction," this is the phase where demolition is being documented. Therefore, setting the receptacle's "Phase Demolished" parameter to "New Construction" is the correct procedure.

A. Creating a new "Demolition" phase is an incorrect workflow; demolition is an action within a phase, not a separate phase.

B. "Demolition" is not a default phase. The parameter requires a valid, existing phase name from the project, such as "New Construction".

D. "Match Phasing to Host" is not a standard Revit parameter for controlling demolition, and phasing is an instance, not a type, property.

1. Autodesk Revit Help. (2023). "About Phases". Autodesk Knowledge Network. Section: "Phase Properties for Elements". This document explains that elements have Phase Created and Phase Demolished instance properties that are set to project phases.

2. Autodesk Revit Help. (2023). "Demolish Elements". Autodesk Knowledge Network. This guide details the process: "Select one or more elements to be demolished. On the Properties palette, for the Phase Demolished parameter, select the phase in which the elements will be demolished."

3. Purdue University, Polytechnic Institute. (n.d.). "CGT 22600: Introduction to Revit". Course Materials, Phasing. This courseware explains the standard "Existing" and "New Construction" phase setup and how demolition is handled by assigning the demolition phase property.

The System Browser in Revit provides a hierarchical view of the electrical distribution system. In the provided exhibit, "Panel P4" is shown as a child element nested directly under "Panel P 3". This parent-child relationship visually represents the electrical connection, indicating that Panel P4 is fed by a circuit originating from Panel P3. The other panels (P1, P2, P5) are shown at different levels or as siblings, not as the direct supplier to P4.

A. Panel P1 is shown at the same hierarchical level as P3 in the distribution tree, not as the parent panel for P4.

B. Panel P2 is also shown at the same level as P3, indicating it is not the source for Panel P4.

C. Panel P5 is shown as a sibling to Panel P4, meaning both are supplied by the same parent panel (P3).

1. Autodesk, Inc. "Use the System Browser". Autodesk Knowledge Network, Revit 2023 Help. Accessed October 2023. The documentation states, "The System Browser displays a hierarchical list of all the components for each discipline... For electrical systems, it shows the distribution system, from the power source to the individual devices." This confirms the hierarchical representation of circuits.

The image displays a type catalog, which is a text file (.txt) that stores multiple family types. When a user loads a family that has an associated type catalog, Revit presents a dialog box listing all the types defined within that catalog. The user can then select which specific types to load into the project. The question asks how many family types the designer creates with this file. Each data row in the type catalog, following the header, defines one unique family type. The provided catalog has four such data rows, therefore defining four types.

B. One type would be loaded only if the user specifically selected a single option from the type catalog dialog box. The catalog itself defines four.

C. Six is an incorrect count of the data rows in the provided type catalog file.

D. Two is an incorrect count, possibly from only considering the fixture sizes (2x2, 2x4) or voltages (120V, 277V) independently.

1. Autodesk Revit Help. "Create a Type Catalog." Autodesk Knowledge Network, 2023. This official documentation states, "Each row in the table represents a unique family type." It details the format, confirming one type per data row.

2. Autodesk University. "It’s a Type Catalog—Not a Catalog of Errors." AU 2018, Class CS225152-L. This course material explains that the purpose of a type catalog is to define a list of types from which a user can select, preventing the need to load all possible variations into a project. The number of types is equal to the number of data rows.

When elements in a linked model do not display correctly due to phase differences, the phases must be mapped between the host and linked models. This is accomplished through the Type Properties of the Revit link. By selecting the linked model instance, clicking "Edit Type," and then accessing the "Phase Mapping" dialog, the designer can associate each phase in the linked model (e.g., the architect's "Demolition" phase) with a corresponding phase in the host model, ensuring correct graphical representation.

A. The "Manage Links" dialog is for loading, unloading, and positioning links, but it does not contain a "Manage Phases" function for mapping.

C. "Graphic Overrides" for phases controls the visual style (color, line weight) of elements in different phase statuses, not the logical mapping between linked files.

D. Visibility/Graphics settings for Revit Links are view-specific overrides and do not establish the fundamental phase relationship for the entire linked model type.

1. Autodesk, Inc. "About Phase Mapping for Linked Models". Autodesk Knowledge Network, Revit 2023 Help. Accessed October 2023. The guide specifies the procedure: "To map phases between the host model and a linked model, select the linked model... Click Modify | RVT Links tab -> Properties panel -> (Type Properties). In the Type Properties dialog, for Phase Mapping, click Edit."

When view properties like scale are dimmed on the View Control Bar, it indicates that a View Template is assigned to the view and is controlling those properties. To make the scale editable for only the current view without affecting other views, the designer must disassociate the template's control. Setting the View Template parameter in the Properties palette to removes the template entirely, unlocking all controlled properties for that specific view. This allows for direct, independent modification of the view's scale.

B. Editing the assigned view template would change the scale for all views that use that template, not just the current one.

C. Duplicating the view creates a new, separate view; it does not solve the problem of editing the scale in the original view.

D. There is no "Unlock" option available when right-clicking the scale on the View Control Bar; this is not a valid Revit function.

- Autodesk, Inc. (2023). Revit 2024 Help. "Apply a View Template". This document explains, "When you apply a view template to a view, you can later change the view properties without affecting the view template." It also details how to set the template to to remove the association.

- Autodesk, Inc. (2023). Revit 2024 Help. "About View Templates". This page clarifies that properties included in a view template are controlled by that template, causing them to be disabled (dimmed) in the view's Properties palette and View Control Bar.

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/AutoDesk_RVT_ELEC_01101/page_43_img_1.jpg In Autodesk Revit Electrical Design, the Project Browser can be customized to organize views according to disciplines, levels, and view types using the Browser Organization Properties dialog box. This feature allows electrical designers to create structured view hierarchies that align with project standards and simplify navigation — especially in multidisciplinary projects. According to the Revit MEP User’s Guide (Chapter 41 “Browser Organization and View Management”): “Browser organization defines how project views are grouped and displayed in the Project Browser. You can customize sorting by Discipline, Level, View Type, or any parameter applicable to views.” In the given exhibit, the Project Browser structure shows views grouped first by discipline (“Coordination,” “Electrical”), then by level (“Level 1,” “Level 2”), and finally by view type (e.g., “Floor Plans,” “Ceiling Plans”). This organization allows the electrical designer to isolate MEP-related views while maintaining logical grouping under each building level. To achieve this layout, the designer must apply the following browser organization setup in the Browser Organization Properties dialog box: 1️⃣ Group by: Discipline – creates top-level folders such as Architectural, Structural, Electrical, etc. 2️⃣ Then by: Associated Level – organizes each discipline into subfolders based on floor levels (Level 1, Level 2, etc.). 3️⃣ Then by: Family and Type – further organizes the level folders into view categories (e.g., Floor Plans, Ceiling Plans). This configuration is supported by the Smithsonian Facilities Revit Template User’s Guide: “Grouping by Discipline, Level, and View Type provides logical organization for MEP coordination, facilitating efficient access to electrical floor and ceiling plan views.” Sorting by View Name (Ascending) ensures consistent alphabetical listing under each category.

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/AutoDesk_RVT_ELEC_01101/page_39_img_2.jpg In Autodesk Revit Electrical Design, the Interference Check tool allows designers to detect physical conflicts between elements in the current model and linked models, ensuring coordination between architectural, structural, and MEP systems. According to the Revit MEP User’s Guide (Chapter 45 “Interference Checking”): “You can check for interferences between elements within a single project or between elements in the host project and linked models. In the Interference Check dialog box, you can specify categories from the current project and from linked Revit models.” The dialog box shown in the image displays two selection lists: The left-hand side represents categories from the current electrical project. The right-hand side represents categories from the linked structural model (STRUCTURE.rvt). Since the task is to check for clashes between conduits (electrical) and beams (structural), the designer should select: “Conduits” under Categories from Current Project (the electrical model). “Beams” under Categories from STRUCTURE.rvt (the linked structural model). As the guide explains further: “Interference checking identifies intersections or overlaps between the geometry of selected categories. For MEP users, this is commonly used to check for clashes between ducts, pipes, or conduits and architectural or structural elements.” This process ensures early detection of coordination issues before construction documentation. The designer can then review results through Coordination Review, isolate elements in 3D, or tag affected areas for correction. Incorrect Options: Selecting both categories from the same model (e.g., Electrical and Conduits) would only check within that model. Choosing unrelated linked files (e.g., ARCHITECTURE.rvt) would not detect clashes with the structural beams.

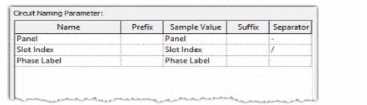

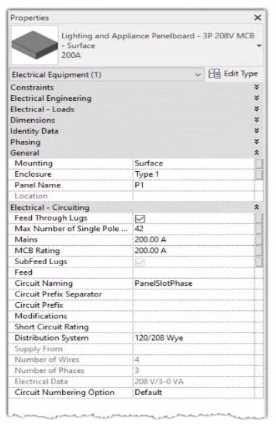

Explanation: The answer is P1/1/A In Autodesk Revit Electrical Design, the Circuit Number for a branch circuit in a panelboard is automatically generated based on the Circuit Naming Scheme specified in the project’s Electrical Settings. This naming scheme defines how each circuit is labeled by combining predefined fields such as Panel Name, Slot Index, and Phase Label. From the exhibit, the Circuit Naming Parameter setup is configured as: Name Prefix Sample Value Suffix Separator Panel Panel Panel — “-” Slot Index Slot Index Slot Index — “/” Phase Label Phase Label Phase Label — — The panelboard properties show that its Circuit Naming method is set to PanelSlotPhase, which means that Revit will generate circuit numbers using the following structure: [Panel Name] – [Slot Index] / [Phase Label] From the exhibit: Panel Name: P1 Slot Index (Breaker Position): 1 (since the question refers to the first breaker position) Phase Label: A (default value for the first phase in a three-phase 120/208V Wye system) Therefore, the Circuit Number for a single-pole circuit in the first breaker slot will be: ✅ P1-1/A This follows Revit’s documented logic for circuit naming. According to the Autodesk Revit MEP User’s Guide (Chapter 17 “Electrical Systems”): “The circuit numbering format is controlled by the Electrical Settings > Circuit Naming template. The default scheme combines panel name, circuit number, and phase label, using the separators defined by the user.” Furthermore, the Smithsonian Facilities Revit Template User’s Guide confirms: “In the default electrical configuration, circuit numbers use the format [Panel Name]-[Circuit Number]/[Phase], such as ‘P1-1/A’ for the first single-pole circuit on phase A.” Hence, based on the provided configuration and standard electrical setup, the correct circuit number for the first single-pole breaker position in panelboard P1 is P1-1/A.

Discipline: Common Type of Parameter: Yes/No When an electrical designer is developing a panelboard family in Autodesk Revit and wants to control the visibility of an element—such as a clearance zone (typically used for equipment maintenance space, NEC 110.26 compliance, or access areas)—the correct method is to create a Family Parameter with a Yes/No (Boolean) value under the Common discipline. According to the Revit MEP User’s Guide (Chapter 44 “Creating and Modifying Families”): “Use a Yes/No parameter to control the visibility of geometry or symbolic lines in a family. When checked, the geometry displays in the project; when unchecked, it is hidden.” This visibility control is typically applied to reference geometry such as safety clearance volumes or working spaces around electrical panels. These geometries are modeled within the family environment and linked to visibility parameters that the designer can toggle on or off in the Family Types dialog. Additionally, the parameter must be created under the Common discipline, not Electrical or HVAC, because visibility controls are not discipline-specific—they apply to all Revit element types. “Discipline defines the context of the parameter type. Visibility parameters are categorized under Common, as they are used across multiple disciplines.” Step-by-step setup: 1️⃣ In the Family Editor, open the Family Types dialog. 2️⃣ Click Add Parameter → Name it Clearance Zone Visible. 3️⃣ Under Parameter Type, select Family Parameter. 4️⃣ Choose Discipline: Common and Type of Parameter: Yes/No. 5️⃣ Assign this parameter to the Visible checkbox of the clearance zone geometry. This allows the designer to easily control whether the clearance zone appears in plan, elevation, or 3D views—useful for coordination and documentation. Incorrect Options Explanation: HVAC, Electrical, Energy: Used for discipline-specific parameters like voltage, airflow, or load calculations. Text or Number: Would not allow toggling visibility. Visible (as type): Refers to linking geometry visibility, not defining a parameter type itself.

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/AutoDesk_RVT_ELEC_01101/page_57_img_2.jpg When working on linked architectural and electrical Revit models, the Copy/Monitor tool enables electrical designers to copy selected elements (such as lighting or electrical fixtures) from the architectural model into their electrical model. This workflow ensures that any subsequent modifications to these elements in the architectural file are automatically detected and flagged for coordination review. According to the Revit MEP User’s Guide (Chapter 46 “Copy/Monitor and Coordination Review”): “Use Copy/Monitor to copy elements from a linked model so that changes to the original elements are tracked. When copying multiple similar elements, select Allow batch copy to automatically copy all instances of that category.” The Coordination Settings dialog provides two primary behavioral controls for each category (such as Electrical Fixtures): 1️⃣ Copy Behavior Allow batch copy: Automatically copies all elements of the selected category from the linked architectural model to the host electrical model. This option is ideal for electrical fixtures because it ensures all instances are copied efficiently without manual selection and allows future synchronization. 2️⃣ Mapping Behavior Copy original: Creates an exact duplicate of the architectural family in the electrical model without substituting family types or parameters. This ensures full fidelity with the architect’s fixtures and enables Revit to automatically detect newly added or modified elements in the linked model for coordination review. The Smithsonian Facilities Revit Template User’s Guide also confirms this workflow: “Set Copy Behavior to Allow batch copy and Mapping Behavior to Copy original when monitoring shared architectural elements like lighting fixtures, ensuring accurate duplication and automatic update tracking.” These settings allow Revit to issue coordination warnings such as “Instance of link needs Coordination Review” whenever the architectural model is updated, maintaining synchronization across disciplines.
