HPE0-S59 Practice Questions

Storm control is the specific HPE Virtual Connect feature designed to prevent network degradation caused by excessive traffic. It monitors the levels of inbound broadcast, multicast, and Destination Lookup Failure (DLF) packets on a port. When the traffic rate for these packet types exceeds a pre-configured threshold, the storm control feature suppresses the excess packets, thereby protecting the network from being overwhelmed. This directly matches the function described in the question.

A. Pause flood protection: This feature is related to Ethernet flow control (IEEE 802.3x) and prevents a port from being disabled by an excessive number of incoming pause frames, not data traffic storms.

B. Loop protection: This feature detects and mitigates network topology loops, which are a common cause of broadcast storms. However, storm control is the mechanism that directly limits the rate of the storm traffic itself.

C. LLDP tagging: Link Layer Discovery Protocol (LLDP) is used by network devices to advertise their identity and capabilities to neighbors on a LAN. It is a discovery protocol, not a traffic control mechanism.

1. HPE Virtual Connect for c-Class BladeSystem User Guide (Edition: 13)

Reference: Page 131

Section: "Storm control"

Quote: "Storm control enables you to control the rate of broadcast

multicast

and destination lookup failure (DLF) traffic that is sent to an uplink port. When the amount of specified traffic sent to a port exceeds the configured limit

you can configure the port to drop the excess traffic or shut down."

2. HPE OneView 6.3 User Guide for HPE Synergy

Reference: Section: "Edit a logical interconnect"

Subsection: "Storm control"

Quote: "Enable or disable storm control on the uplink ports. Storm control prevents traffic on a LAN from being disrupted by a broadcast

multicast

or unicast storm on a port." This confirms the feature's purpose in the Synergy environment

which uses Virtual Connect technology.

In HPE Synergy architecture, logical components are divided into templates (blueprints) and instantiated management environments. An Enclosure Group serves as the blueprint defining a consistent configuration baseline for hardware, whereas a Logical Enclosure is the actual management boundary containing the configuration intended for specific physical enclosures.

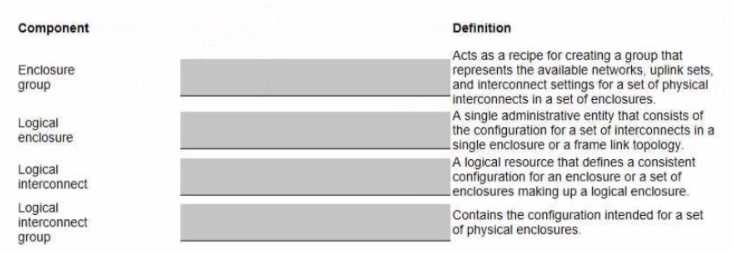

Similarly for networking, a Logical Interconnect Group (LIG) acts as the template—or recipe—defining networks, uplink sets, and baseline settings for interconnects across enclosures. A Logical Interconnect (LI) is the applied instance functioning as a single administrative entity that manages the deployed configuration for interconnect modules within an enclosure or frame link topology.

HPE OneView 9.0 User Guide for HPE Synergy (Document ID: sd00004495en_us). Section: Logical interconnect groups. Defines LIG as the recipe for creating groups that represent available networks and uplinks.

HPE OneView 10.0 User Guide for HPE Synergy (Document ID: sd00006050en_us). Section: Logical interconnect configuration. Defines a Logical Interconnect as a single administrative entity for configuration.

HPE Synergy 12000 Frame Setup and Installation Guide (Document ID: c05348240en_us). Section: Define an enclosure group. Explicitly defines an enclosure group as a logical resource that defines consistent configuration for sets of enclosures.

HPE OneView 9.2 User Guide for HPE Synergy (Document ID: sd00004996en_us). Section: Logical Enclosures. States that a logical enclosure contains the configuration intended for a set of physical enclosures, mapping defaults from the enclosure group.

The exhibit indicates that the logical interconnect has a "Redundancy" status of "Highly available" and a "Stacking Health" of "Redundant". This configuration is designed to prevent service interruptions during maintenance tasks like firmware updates. When the orchestrated update method is used in HPE OneView, it performs a rolling update. One interconnect module is updated and rebooted while network traffic fails over to the other redundant module(s). Once the first module is back online, the process is repeated for the next. This ensures that compute modules with properly configured network teaming maintain continuous network connectivity, making a zero-downtime update possible.

A. The orchestrated method is the primary automated process designed for non-disruptive updates in a redundant configuration, not the manual method.

C. While forcing a parallel update would cause downtime, the system's design allows for a non-disruptive update using the standard orchestrated method.

D. An orchestrated update in this configuration is designed for zero downtime. A disruptive update would cause an outage lasting several minutes, not limited to one minute.

1. HPE OneView 8.1 User Guide for HPE Synergy

Page 268

Section: "Firmware updates for logical interconnects".

"When the logical interconnect is redundant

you can perform an orchestrated activation. An orchestrated activation updates the firmware on one interconnect at a time in the logical interconnect

which allows for network and storage connectivity to be maintained during the firmware update." This statement directly supports the correct answer (B).

2. HPE OneView 8.1 User Guide for HPE Synergy

Page 269

Section: "Firmware updates for logical interconnects"

Table 52: Firmware update options.

Under the "Force installation" option

the guide states: "Forcing a firmware update on a logical interconnect that is part of a Virtual Connect domain results in a parallel update of the interconnects and a network outage." This confirms that using the "Force" option is disruptive

making option C a possible but undesirable outcome

and it invalidates the "regardless of the orchestration method" clause in option D.

The HPE Superdome Flex Rack Management Controller (RMC) provides a Command Line Interface (CLI) for system administration. The RMC CLI is the designated tool for updating the complex firmware bundle (which includes UEFI, RMC firmware, etc.). Because it is a CLI, it can be scripted. Administrators can use a central management station to run scripts that establish parallel SSH sessions to multiple independent HPE Superdome Flex systems, thereby executing the update firmware command simultaneously across all of them. This makes statement A a description of a valid operational capability.

B. RMC CLI is the only tool that can be used to update HPE Persistent Memory firmware.

This is incorrect. The official HPE-sanctioned tool for updating HPE Persistent Memory firmware on Superdome Flex is HPE Smart Update Manager (SUM).

C. HPE OneView is the only tool that can be used to perform I/O updates.

This is incorrect. HPE Smart Update Manager (SUM) is the primary tool for performing I/O firmware updates and can be used standalone, without HPE OneView.

D. HPE SUM is the only tool that can be used to update HPE Persistent Memory firmware.

This is incorrect. While HPE SUM is the official method, low-level vendor-specific utilities (e.g., from Intel) can also update persistent memory firmware, so SUM is not the only possible tool.

1. HPE Superdome Flex Server Firmware Update Guide (Document ID: a00065524enus)

Page 6

"Firmware update tools": This section explicitly states: "The complex firmware is updated using the RMC." and "HPE Persistent Memory module firmware is updated using HPE Smart Update Manager (SUM)." and "I/O firmware and drivers are updated using HPE Smart Update Manager (SUM)." This single source refutes the core claims of options B and C

and shows that SUM

not RMC

handles PMem.

2. HPE Superdome Flex Server RMC Command Reference (Document ID: a00065526enus)

Chapter 4

"Commands"

Section "update": The guide details the update firmware command. The existence of a non-interactive command structure is what enables scripting from an external management host to automate and parallelize updates across multiple systems

supporting the validity of option A.

3. HPE Smart Update Manager User Guide (Document ID: 872263-008)

The guide's overview and usage sections describe how SUM functions as a standalone tool for applying firmware and driver updates to HPE servers and their components

including I/O cards. This confirms that OneView is not the only tool for I/O updates

refuting option C.

The HPE Synergy D3940 Storage Module connects to Synergy Compute Modules via an HPE Smart Array P408i-s SR Gen10 Controller. This specific type-s controller is cabled directly to the compute module's system board. The PCIe lanes required for this controller's operation are managed by the second processor socket. Therefore, for the system to recognize and utilize the P408i-s controller and its attached D3940 storage, a second CPU must be physically installed in the compute module. This is a hardware-level architectural requirement for this specific storage configuration.

A. The Synergy 12Gb SAS Connection Modules can be installed in multiple fabrics for redundancy and connectivity, typically in bays corresponding to Fabric 1 and Fabric 2, not exclusively the first fabric.

C. VMware vSAN supports both all-flash (all SSDs) and hybrid (SSD cache tier and HDD capacity tier) configurations. A deployment on D3940 modules does not mandate an all-SSD architecture.

D. VMware vSAN requires the storage controller to be in HBA (pass-through) mode, presenting individual raw disks to the hypervisor. Configuring a hardware RAID logical drive is contrary to vSAN's design.

1. HPE Synergy 480 Gen10 Compute Module QuickSpecs. In the "Storage Controllers" section

under the description for the "HPE Smart Array P408i-s SR Gen10 Controller

" Note 1 states: "The P408i-s is a Type-s Smart Array controller that is required for connectivity to the D3940. This controller is cabled to the system board and requires a second processor to be installed." (Document ID: a00008151enw

Page 12).

2. HPE Reference Configuration for VMware vSAN on HPE Synergy. This document explicitly details the controller mode requirement for vSAN. In the "Storage controller configuration" section

it states: "The HPE Smart Array controller must be configured in HBA mode." It also provides examples of both hybrid and all-flash vSAN configurations using D3940 modules

invalidating the all-SSD claim. (Document ID: a00050309enw

Pages 10

13).

3. HPE Synergy 12Gb SAS Connection Module QuickSpecs. The "Configuration Information" section details installation rules

showing the module can be installed in Interconnect Bays 1

2

4

and 5

which correspond to multiple fabrics

disproving the restriction to only the first fabric. (Document ID: 826322-b21

Page 4).

HPE Smart Update Manager (SUM) is the primary, officially recommended tool for comprehensive firmware and software updates on HPE Superdome Flex servers. It is specifically designed to handle complex update scenarios, including those involving critical components like HPE Persistent Memory. SUM orchestrates the update process by managing dependencies between the RMC, UEFI, I/O firmware, and other components. This orchestrated approach ensures updates are applied in the correct order and to compatible versions, which is the most reliable method to prevent the issues caused by outdated firmware.

A. HPE OneView manages firmware baselines and initiates updates, but it relies on HPE SUM as the underlying engine for the actual deployment on Superdome Flex.

B. While the RMC CLI can be used to update firmware, it is a manual method. HPE SUM provides a more robust, automated, and dependency-aware process to avoid errors.

C. This option is imprecise. HPE OneView is used for managing firmware compliance through server profiles, but HPE SUM is the tool that executes the complex update tasks.

1. HPE Superdome Flex Server Software and Firmware Update Guide (a00045621enw

Edition 13

October 2021):

Page 7

"Introduction": "HPE recommends that you use HPE Smart Update Manager (SUM) to update the firmware and software on your HPE Superdome Flex server. SUM is a tool for installing and updating firmware and software on HPE Superdome Flex servers... SUM works with the RMC to update the firmware."

Page 18

"Updating HPE Persistent Memory firmware": This section explicitly details the procedure using HPE Smart Update Manager (SUM)

confirming it is the correct tool for this specific

critical component.

2. HPE OneView 6.5 for HPE Superdome Flex User Guide (a00118634enus

Edition 2

December 2021):

Page 101

"Firmware updates": "HPE OneView works with Smart Update Manager (SUM) to manage firmware on HPE Superdome Flex servers. You can use HPE OneView to manage and apply firmware baselines to servers by using server profiles." This clarifies that OneView is a management layer that utilizes SUM for execution.

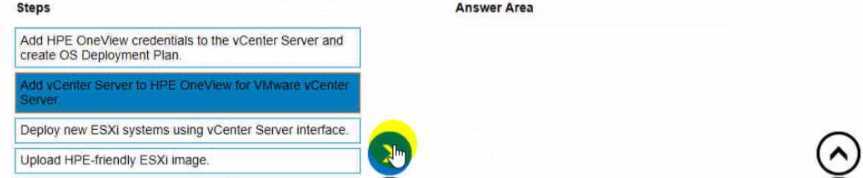

The HPE OneView for vCenter plugin provides the necessary interface to manage HPE-specific infrastructure tasks, including server hardware, firmware baselines, and OS deployment. Within this plugin, administrators can access "OS Build Plans" or "Deployment Plans." To change the ESXi image associated with an OS Deployment Plan, you must navigate through the HPE OneView for vCenter interface, which enables the selection and modification of deployment templates and build plans. Other options like VMware Lifecycle Manager are used for vSphere-native cluster image management and are distinct from HPE OneView-managed OS Deployment Plans.

HPE Support Center. "Editing cluster deployment plans with OS Deployment from HPE OneView." HPE OneView for VMware vCenter 10.3 User Guide, Section: Growing a cluster/Editing cluster deployment plans. Available at: https://support.hpe.com/hpesc/public/docDisplay?docId=a00114750en_us&page=GUID-72B4E702-A420-4EA3-8567-5EDFAA50D224.html

HPE Support Center. "Introduction to HPE OneView for VMware vCenter." HPE OneView for VMware vCenter 11.0 User Guide, Section: Overview. Available at: https://support.hpe.com/hpesc/public/docDisplay?docId=sd00001259en_us&page=Overview.html

HPE Support Center. "HPE OneView for VMware vCenter OS Build Plans." HPE OneView for VMware vCenter 11.7.0 User Guide. Available at: https://support.hpe.com/hpesc/public/docDisplay?docId=sd00006298en_us&page=growing_clusters.html

VMware vSAN is a software-defined storage solution integrated into the vSphere hypervisor. Its licensing is separate from and additive to vSphere licensing. A vSAN license (e.g., vSAN Standard) unlocks the vSAN features on a host, but it does not include the base license for the ESXi hypervisor itself. Therefore, to create a functional vSAN cluster on the ten HPE Synergy compute modules, the customer must purchase ten appropriate vSphere licenses in addition to the ten vSAN licenses they have already requested. The bill of materials is incomplete without the vSphere licenses.

B. vSAN is compatible with multiple vSphere editions, including vSphere Standard. vSphere Enterprise Plus is not a mandatory prerequisite for deploying vSAN, especially the vSAN Standard edition.

C. In a single-frame HPE Synergy configuration, two master interconnect modules (like the VC SE 100Gb F32) are used for redundancy. Interconnect Link Modules (ILMs) are only required for linking multiple frames together.

D. The HPE Synergy D3940 Storage Module is designed to hold up to 40 Small Form Factor (SFF) drives. The request for a D3940 with 40 SSDs is a valid and supported configuration.

1. VMware

"VMware vSAN 8 Licensing Guide": This official guide explicitly states the licensing model. In the "vSAN Licensing" section

it clarifies

"vSAN is licensed separately from vSphere. A vSphere license is required for each host in a vSAN cluster." This directly supports the correct answer (A) and refutes the idea that vSAN licenses replace vSphere licenses.

2. HPE

"HPE Synergy D3940 Storage Module QuickSpecs"

(a00008242enw): Under the "Standard Features" section

this document specifies

"The HPE Synergy D3940 Storage Module is a 12Gb SAS expansion storage option that provides up to 40 SFF drive bays for the Synergy Compute Modules." This directly refutes option D.

3. HPE

"HPE Synergy Configuration and Compatibility Guide"

(804927-009): In the section "HPE Synergy Interconnect Modules and Adapters

" the guide details interconnect bay population rules. It shows that for a single-frame configuration

master interconnects are placed in bays 3 and 6 for redundancy. Interconnect Link Modules are shown only in multi-frame configurations. This refutes option C.

4. VMware

"VMware vSphere Compare Editions" official webpage: The product comparison matrix on VMware's website shows that the core features required to run vSAN are available in the vSphere Standard edition. While some advanced vSAN features may require vSphere Enterprise Plus

the base vSAN functionality does not

making option B incorrect.

A VMware vSphere Virtual Volumes (vVol) datastore is a logical construct that maps to a pool of storage on the array. According to the vSphere APIs for Storage Awareness (VASA) specification, this pool is called a Storage Container. When you use the HPE Storage Integration Pack for VMware vCenter to create a vVol datastore, it creates a corresponding Storage Container on the HPE Primera or 3PAR array. Within the HPE Storage System Management Console (SSMC), you manage and verify these vVol datastores by navigating to the "Storage Containers" section. This object represents the entire vVol datastore and its associated storage policies.

A. App Volume Set: An App Volume Set is a feature for grouping traditional volumes for application-consistent snapshots and management, not for representing a vVol datastore.

C. Virtual Volume Set: While a Storage Container is implemented as a Virtual Volume Set (vvset) on the array, the management term used in the SSMC interface and by the VASA protocol is "Storage Container".

D. virtual Volume: A Virtual Volume (vVol) represents an individual component of a virtual machine, such as a VMDK (config, data, swap), not the entire datastore.

1. HPE White Paper: Implementing VMware vSphere Virtual Volumes on HPE 3PAR StoreServ

Reference: Page 10

"HPE 3PAR StoreServ vVol implementation".

Quote/Content: "The storage container is a logical pool of storage on the HPE 3PAR StoreServ array that is presented to vSphere as a vVol datastore... On HPE 3PAR StoreServ

a storage container is a virtual volume set (vvset)." This confirms the mapping and terminology.

2. HPE Primera and HPE 3PAR SSMC 3.8 Administrator Guide

Reference: Page 181

Chapter 8

"Virtual Volumes"

Section "About Virtual Volumes".

Quote/Content: "A storage container is a logical storage construct that provides a pool of storage for virtual volumes... You can use SSMC to create

edit

and remove storage containers." This shows that "Storage Container" is the object managed within SSMC.

3. HPE 3PAR and Primera VMware ESXi 7.0 U2 and vSphere 7.0 U2 Implementation Guide

Reference: Page 41

"vSphere Virtual Volumes".

Quote/Content: "A vVol datastore is a storage container that is a logical abstraction on to which virtual volumes are stored. The storage container logically groups virtual volumes and maps to a hardware-based storage construct on the array." This document explicitly links the vVol datastore to the Storage Container concept.

An HPE Synergy logical enclosure using a master/satellite interconnect topology is architecturally limited to a maximum of five frames. The described setup, with two HPE Virtual Connect SE 100Gb F32 master modules and HPE Synergy 50Gb Interconnect Link Modules, is designed for multi-frame configurations. Since the customer currently has three frames, they can expand the existing logical enclosure by adding two more frames, one at a time, to reach the maximum supported limit of five frames. This scalability is a core design feature of the HPE Synergy platform.

A. The additional frame must have HPE Virtual Connect FC modules installed.

While adding a frame requires matching the existing logical interconnect configuration, which includes the FC modules, this is a procedural rule. Option B describes a more fundamental architectural capability regarding the setup's maximum scale.

C. The customer has to create a new logical enclosure for the additional frame.

This is incorrect. The use of Interconnect Link Modules (ILMs) is specifically to enable the expansion of a single logical enclosure across multiple frames, avoiding the need for separate management domains.

D. The additional frame cannot have 12Gb SAS connection modules installed.

This is incorrect. HPE Synergy logical enclosures can support multiple fabric types (Ethernet, FC, SAS) concurrently. SAS connection modules can be installed in available interconnect bays in the new frame.

1. HPE Synergy Planning Guide: In the section "HPE Synergy building blocks

" under "HPE Synergy Frame

" it is stated that "Up to 5 HPE Synergy 12000 Frames can be configured in a single logical enclosure for most configurations." This confirms the five-frame limit. (Reference is conceptual as specific page numbers vary by edition

but this is a core concept in the guide's architectural overview).

2. HPE OneView 7.0 User Guide for HPE Synergy: In the chapter "Logical Enclosures

" the section "Grow a logical enclosure" states: "The new enclosure must contain the same number of interconnects of the same type and in the same bays as the enclosures already in the logical enclosure." This confirms the procedural requirement mentioned in option A.

3. HPE Synergy Interconnect and Networking Solution Technology White Paper (a00026319enw): Page 4 states

"The HPE Synergy multi-enclosure solution supports up to five frames in a single logical enclosure." This document explicitly confirms the architectural limit described in the correct answer.
